EEC Valve closed in emergency
ON ON
automatic
OFF OFF OFF
---
EFu FW compatibility error (>=5.0)
ON ON
automatic
OFF OFF OFF
---
ECn Confi guration error
ON ON
automatic
OFF OFF OFF
---
ELE EVD offl ine
ON ON
automatic
OFF OFF OFF
---
EPE Modulo trifase off -line - ON ON automatic OFF OFF OFF OFF - -
EP0 Sd1 probe fault (3PH module) -
ON ON automatic - -
by
time
---
EP1 Sd2 probe fault (3PH module) -
ON ON automatic - - - - - -
EP2 Sc probe fault (3PH module) -
ON ON automatic - - - - - -
EPn 3PH module confi guration fault - ON ON automatic OFF OFF OFF OFF - -
EPM Motor protector alarm (3PH module) -
ON ON autom. / manual OFF OFF OFF OFF OFF -
EPU High/low pressure or Kriwan alarm (3PH module) - ON ON autom. / manual OFF OFF OFF OFF OFF -
Tab. 8.c

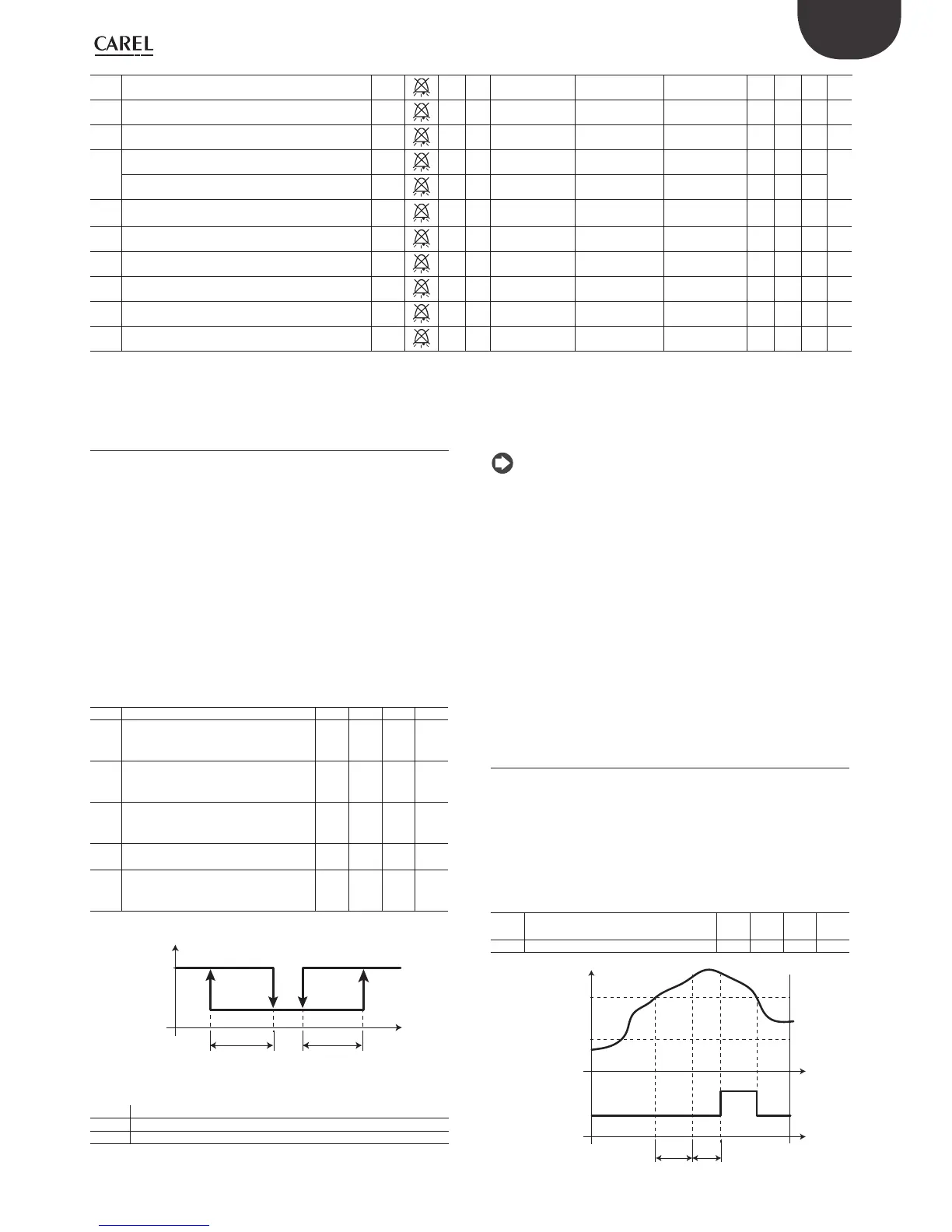

8.7 Alarm parameters
Alarm and activation parameters
AL (AH) allows you to determine the activation temperature for low (high)
temperature alarm LO (HI). The set value AL (AH) is always compared with
the value detected by the control probe. The parameter Ad represents
the alarm activation delay in minutes; the low temperature alarm (LO)
activates only if the temperature is lower than threshold AL for period
of time greater than Ad. The thresholds can be relative or absolute,
depending on the value of parameter A1. In the fi rst case (A1=0) the
value AL indicates the deviation regarding the set point and the low
temperature alarm activation point is: set point - AL. If the set point
diff ers, the activation point will automatically diff er. In the second case
(A1=1), the value AL indicates the low temperature alarm threshold. An
active low temperature alarm is indicated via internal buzzer, with the
code LO on display and with the activation of the alarm relay. The same
occurs for high temperature alarm (HI), considering AH instead of AL.
Par Description Def Min Max UM
A0 Alarm and fan diff erential 2.0 0.1 20.0 °C/°F
A1 Alarms threshold (AL, AH) relative to set
point or absolute
0/1=relative/absolute
001-
AL Low temperature alarm threshold
If A1= 0, AL=0: alarm disabled
If A1= 1, AL=-50: alarm disabled
0 -50.0 200 °C/°F
AH High temperature alarm threshold
If A1= 0, AL=0: alarm disabled
If A1= 1, AL=200: alarm disabled
0 -50.0 200 °C/°F
Ad Delay time for low temperature and
high temperature alarms
120 0 250 min
A6 Stop compressor from external alarm
0 = compressor always off ;
100 = compressor always on;
0 0 100 min
Sv
LO HI
AL AH
A0
A0
OFF
ON
ALARM
A1=1
Fig. 8.a
Key
LO Low temperature alarm
HI High temperature alarm
SV Adjustment probe
Notes:
• The alarm LO and HI are alarms with automatic reset. A0 determines
the hysteresis between the value of the activation and deactivation
of the alarm;
• if you press the Alarm button when the measurement is above a
threshold, the buzzer and the alarm relay immediately turn off , and
an indication of the alarm code will remain active until the measure
falls within the activation threshold. Parameter A6 has similar meaning
as parameter c4 (duty setting). If an external alarm occurs, the
compressor works for a time equal to the value set for parameter A6,
while it remains OFF for a fi xed period of 15 minutes.
• In case of relative alarms (A1= 0) both AL and AH are considered as
absolute values (e.g. AL= -10 is considered as AL= 10)
8.8 HACCP Alarm parameters and
monitoring activation
In order to activate HACCP alarm monitoring, set parameter HCE=1.
HA alarms
The HA alarm is generated if during normal operation it is noted that the
temperature read by the control probe exceeds the high temperature
threshold for the time Ad + Htd. Therefore compared to the normal high
temperature alarm already signalled by the control, HACCP alarm type HA
is delayed by a further Htd time specifi c for HACCP recording.
Par. Description Def Min Max U.M.
HCE Enabling HACCP
0/1=No/Yes
001-
Htd HACCP alarm delay 0 0 250 min
t
t
ALARM
Sv
OFF
ON
St
AH
HtcAd
Fig. 8.b
