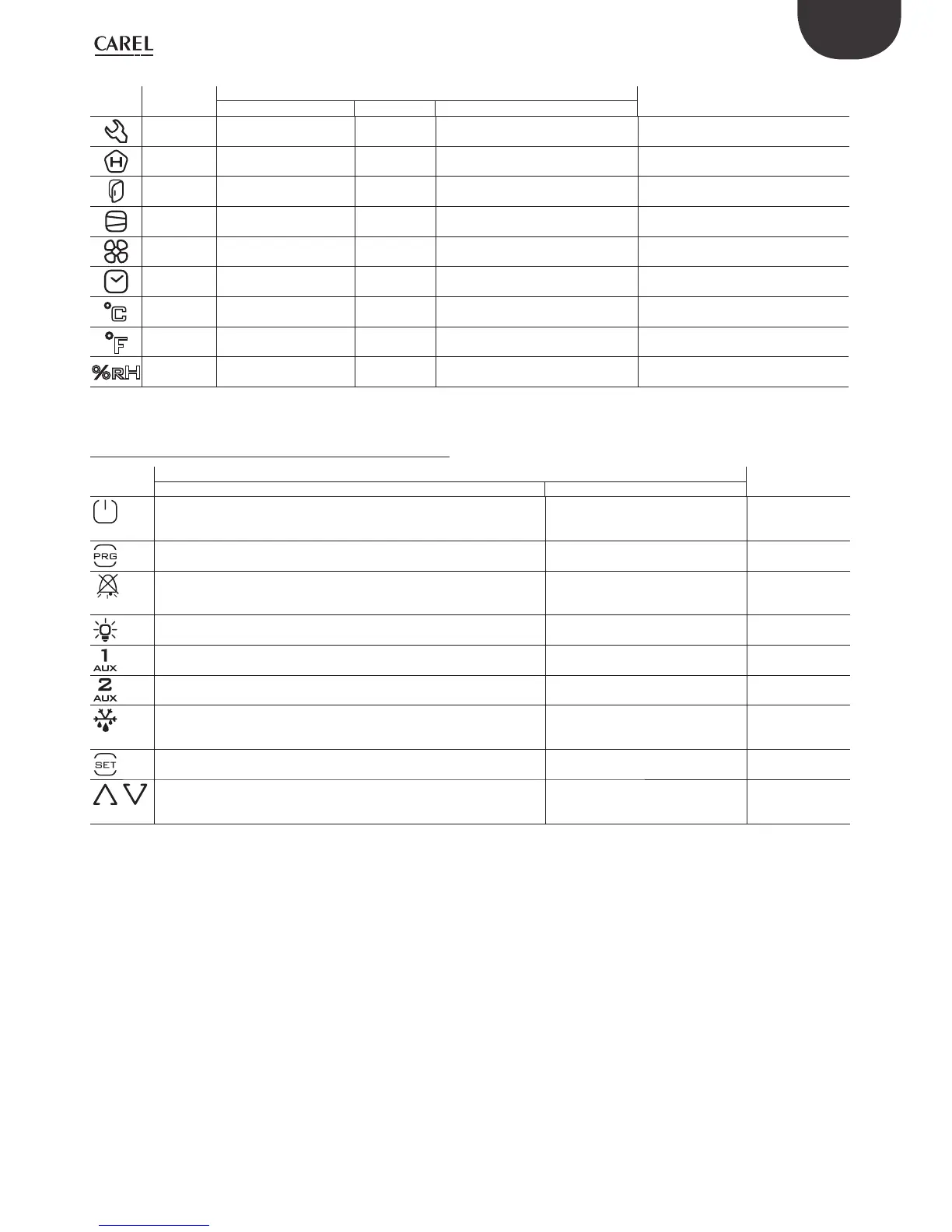

Icons table on models with two rows display P/Ns. WB000D*
Icon Function
Normal operation
Note
ON OFF Flashing
Technical
support
Alarms, for example alarm due to EEprom
or probe fault
Serious problem detected. Please contact
technical service
HACCP HACCP function enabled - HACCP alarm saved (HA and/or HF)
Door Door open Door Close Door open and door alarm active
Compressor On Off Waiting for activation
Blinks when the activation of the
compressor is delayed by safety times.
Fan On Off Waiting for activation
Blinks when the activation of the
compressor is delayed by safety times.
Clock
On if a scheduled defrost is
requested
Celsius
degrees
Temperature visualization in
Celsius degrees
-.
Farenheit
degrees
Temperature visualization in
Farenheit degrees
-
humidity
percentage
Humidity visualization -
Tab. 3.b
3.2 Keyboard
Key Normal operation Blink
Pressing the individual key Combined pressure with other keys
On/Off
• Pressed for 2 s, turns the control OFF
• Pressed for 2 s, turns the control ON
• ESC function, return to higher level
• Pressed for 2 s, enters the programming menu
Prg + Set: if pressed at the same time for 2
s, allow access to the multifunction menu
ALARM
• In case of alarm: mutes the audible alarm (buzzer) and deactivates the alarm
relay
• Pressed for 2 s, reset the manual reset alarms
Available only in case
of alarm
• Turns the light on/off
• Turns auxiliary output 1 on/off (*)
• Turns auxiliary output 2 on/off (*)
DEF
• Activates/deactivates manual defrost Waiting for activation
• Set point setting
• Value setting
Prg + Set: if pressed at the same time for 2
s, allow access to the multifunction menu
/
UP/DOWN
• Value increase/ decrease
Tab. 3.c
(*) Set H1/H5=2. If parameters are not set, if AUX1/AUX2 key are pressed,
they blink for 5 seconds.
