75
ENG
UltraCella +0300083EN - rel. 1.5 - 07.02.2015

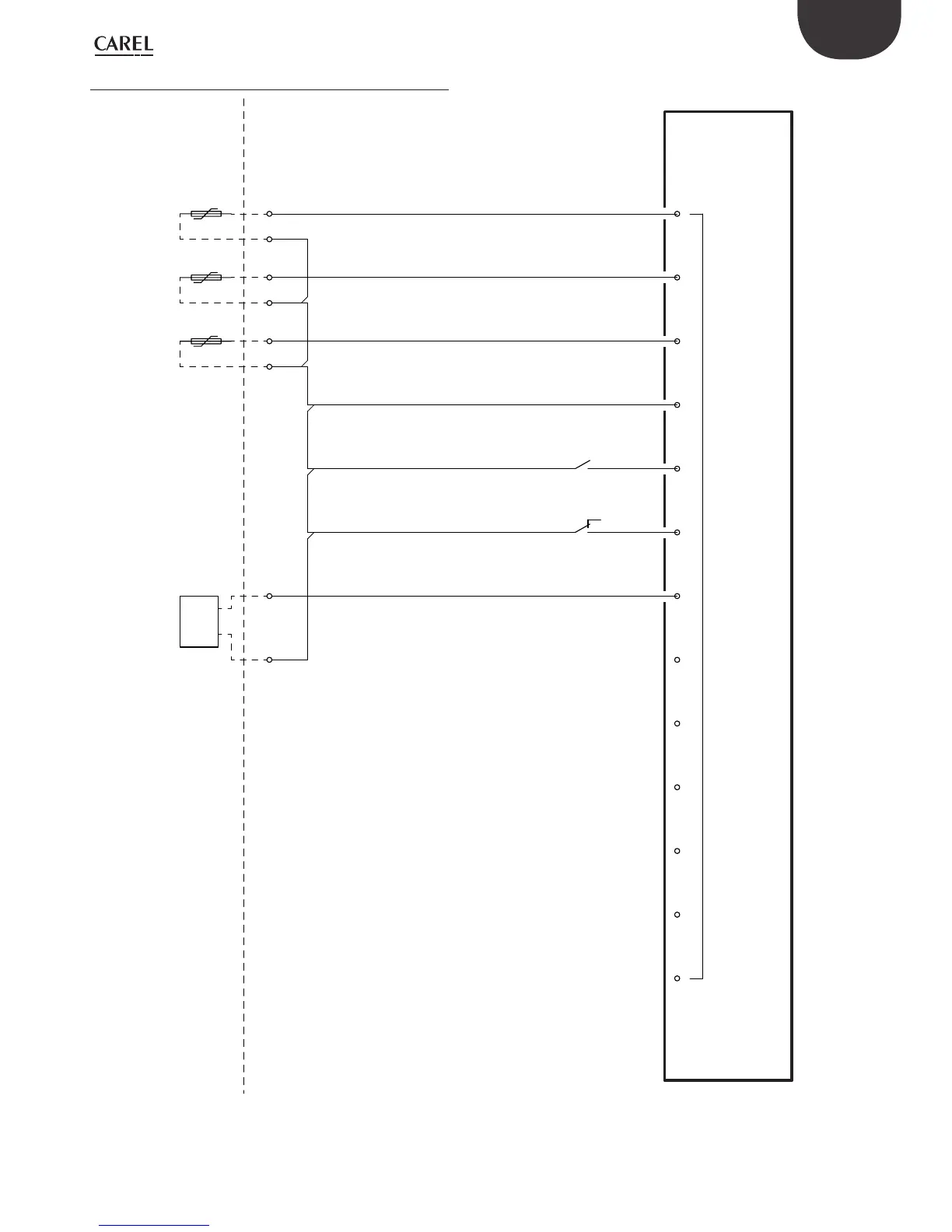

10.2.4 Auxiliary
circuit
XA1
140
XA1
142
XA1
144
XA1
145
XA1
143
XA1
141
ST1
ST2
ST3
J2
J2/GND
J2/U10
J2/U9
J2/U8
J2/U7
J2/GND
J2/U6
J2/U5
J2/U4
J2/GND
J2/U3
J2/U2
J2/U1
QM1
13
14
3/B4
KR1
11
12
14
5/D2
XA1
146
XA1
147
TS2
Y
GND
DEFROST PROBE
DEFROST A
UX PROBE
CONDENSER PROBE
MACHINE LIMIT
EVAPORA
TOR FANS 0...10VDC
RED
RED
RED
RED
RED
RED
RED
RED
RED
Ultra 3PH I/O module
Fig
. 10.j
74
76
Table of Contents
Default Chapter
5
Table of Contents
5
1 Introduction
7
Codes
7
Expansion Modules
8
2 Installation
9
Assembly and Sizes (MM)
9
Structure
10
Wiring Diagram
11
Expansion Modules Assembly
12
Ultra EVD Module
14
Ultra Power Module
15
Ultra 3Ph Module EVAPORATOR
16
Ultra 3Ph Module FULL
17
Installation
18
Connection in Supervisoring Network
18
Ultracella Service Terminal
18
Upload/Download Parameters (USB Memory Key)
19
3 User Interface
20
Display
20
Keyboard
21
Programming
22
Procedures
24
Multifunction Menu
26
Message Language Selection
30
4 Commissioning
31
First Commissioning
31
Parameters to be Set for the Commissioning
31
Single Digit Display Models Cod. WB000S* Commissioning
31
Double Digit Display Models Cod. WB000D* Commissioning
32
Commissioning with Ultracella Service Terminal
33
Main Function Commissioning
33
Light Management
37
Other Confi Guration Parameters
37
Ultra EVD Module Commissioning
38
Ultra 3Ph Evaporator Module Commissioning
39
Ultra 3Ph Full Module Commissioning
40
5 Outputs Configuration and Protections
42
Analogue Output
42
Digital Outputs
42
6 Control
43
Switching the Controller on and off
43
Virtual Probe
43
Set Point
43
Pump down
43
Autostart in Pump down
44
Continuous Cycle
45
Door Switch Control
45
Defrost
45
Evaporator Fans
47
Condenser Fans
48
Duty Setting
49
Bowl Resistance
49
Defrosting with 2 Evaporators
49
Second Compressor with Rotation
49
Humidity Management
51
7 Parameters Table
53
8 Signals and Alarms
58
Signalling
58
Alarms
58
Reset Alarms
58
HACCP Alarms and Display
58
EVD EVO Alarms
59
3PH Module Alarms
59
Alarm Parameters
61
HACCP Alarm Parameters and Monitoring Activation
61
High Condenser Temperature Alarm
62
9 Technical Specifications
63
Ultracella Technical Characteristics
63
EVD Modules Technical Characteristics
64
Power Modules Technical Characteristics
64
3Ph EVAPORATOR Modules Technical Characteristics
64
3Ph FULL Modules Technical Characteristics
65
10 Electrical Wiring 3Ph Modules
66
Electrical Wiring 3PH EVAPORATOR Module
66
Electrical Wiring 3PH FULL Module
72
11 Software Release
79
Software Release Table
79
