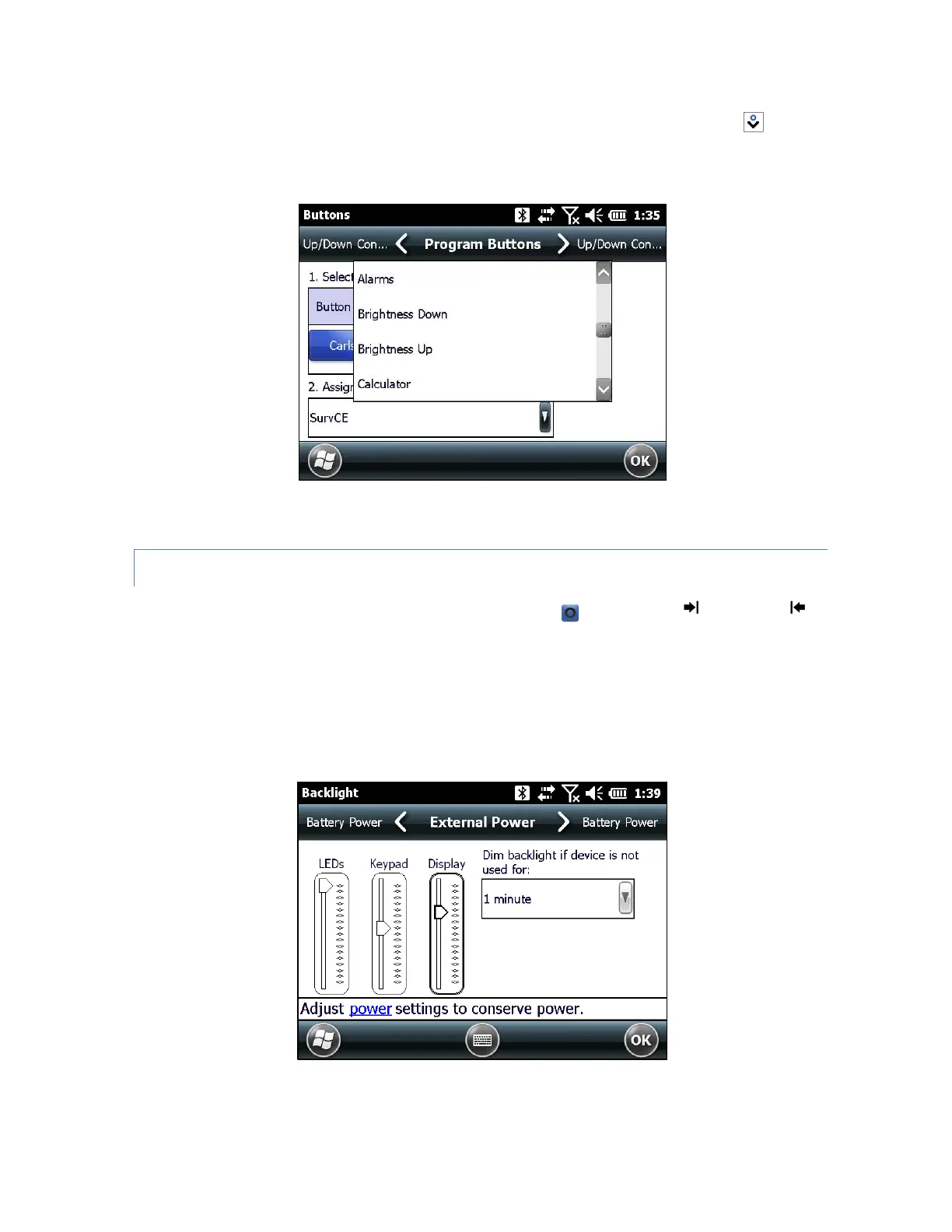

3. At the bottom of the screen under 2. Assign a program; select the down arrow key to
display a list of programs and functions. Select the item you want to reassign to the
selected key.
KEYBOARD BACKLIGHT
Make keyboard brightness adjustments by pressing the blue + forward tab or back tab
keys to increase or decrease the keyboard brightness. You can also use the Backlight control panel
located at Start > Settings > System > Backlight. Select the External Power screen or Battery Power
screen from the horizontal menu near the top of the screen.
Move the Keyboard slider up to brighten the backlight or down to dim it. Dimming the keyboard
backlight saves battery power when the Surveyor2 is in use.
