Carlson Surveyor 2 - Surveyor2 Hardware Overview

GETTING STARTED
The Carlson Surveyor2 Rugged Handheld™ data collector features Bluetooth, Wi-Fi and an
alphanumeric keyboard. Standard accessories include a lithium-ion battery pack, AC wall charger,
USB micro client sync cable, hand strap, capacitive stylus with tether and tripod hook. A camera,
GPS/GNSS, and cellular data modem are options.
THE ANATOMY OF THE SURVEYOR2

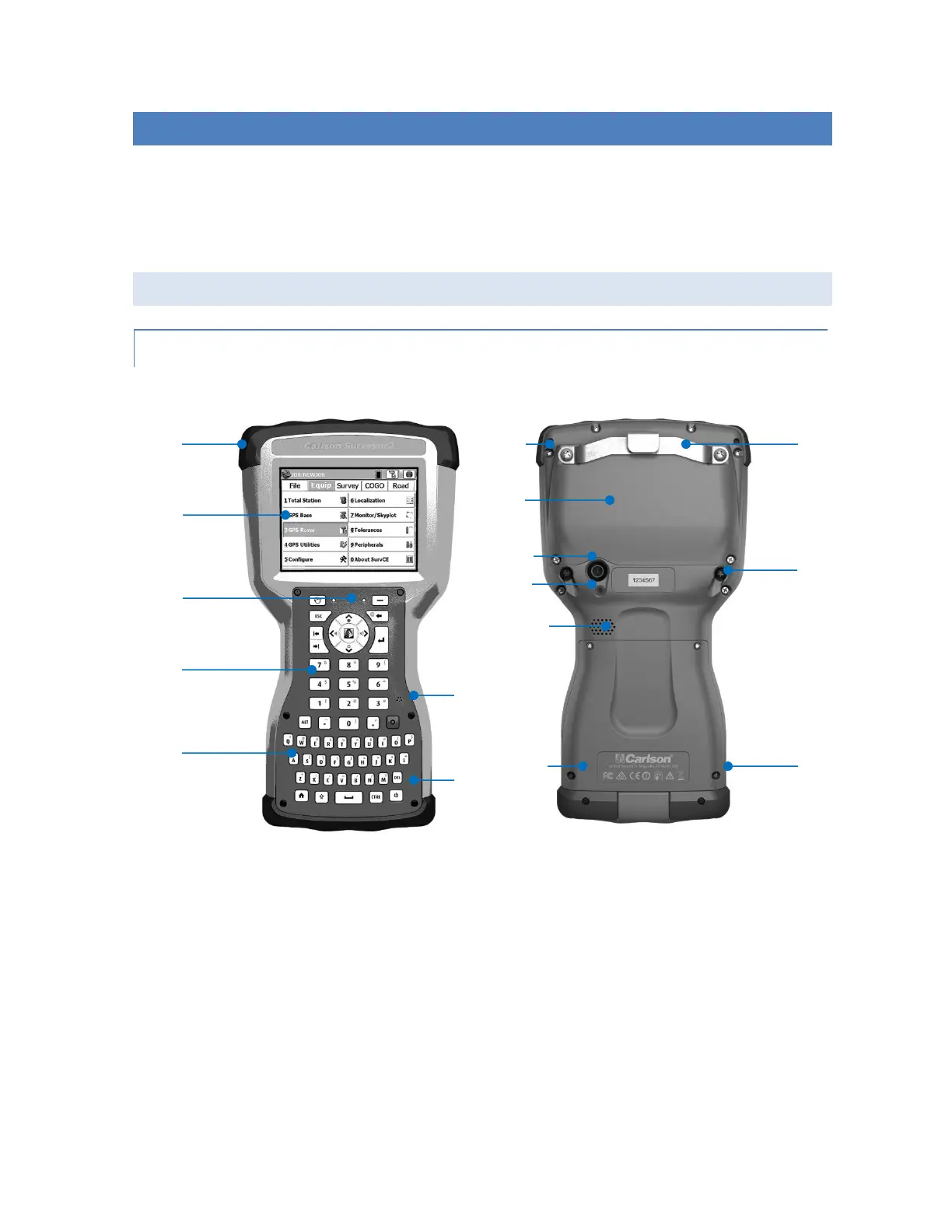

FRONT AND BACK FEATURES
1 Bumper, Top
8 Stylus Attachment Point
2 Touchscreen
9 Expansion Door
3 LED Indicators
10 Camera Lens (Geo Models)
4 Numeric Keyboard
11 Camera Flash/Flashlight (Geo Models)
5 Qwerty Keyboard
12 Speaker
6 Microphone
13 Battery Door Screw (1 of 4)
7 Power Key
14 Handstrap Attachment (1 of 2)
15 Tripod Hook
1
2
3
4
5
6
7
15
14
13
13
12
11
10
9
8
