1-GENERALINFORMATION

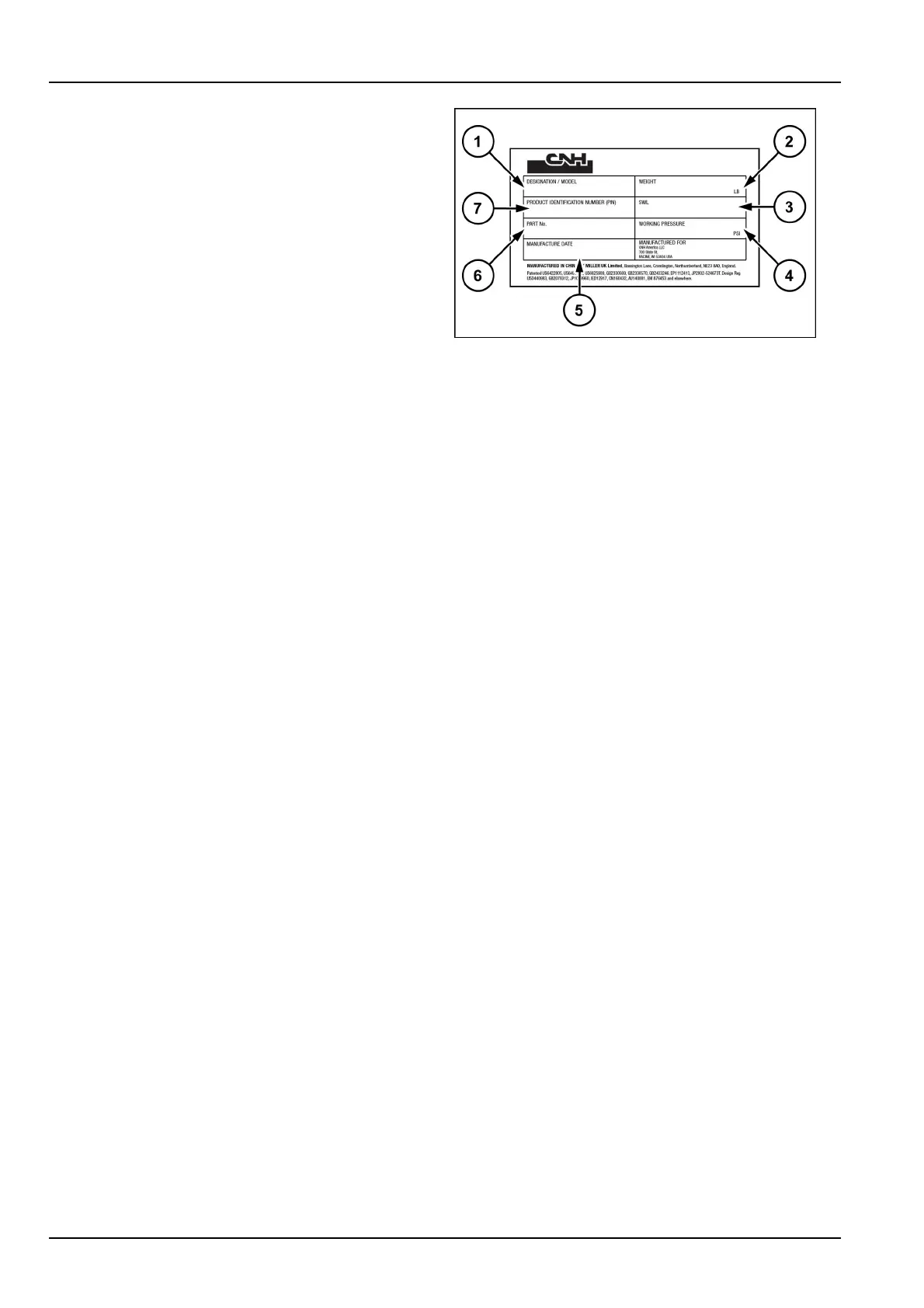

Quickcoupler(optional)

(1)Designation—Model:

(2)Weight:

(3)SWL(SafeWorkingLoad):

(4)Workingpressure:

(5)Manufacturedate:

(6)Partnumber:

(7)Productidenticationnumber:

SMIL13CEX2886AB7

Componentserialnumber

Hydraulicpump:

Swingreductiongear:

Travelreductiongears:

Travelcontrolvalve:

Attachmentcontrolvalve:

Swingcontrolvalve:

1-6
