3-CONTROLS/INSTRUMENTS

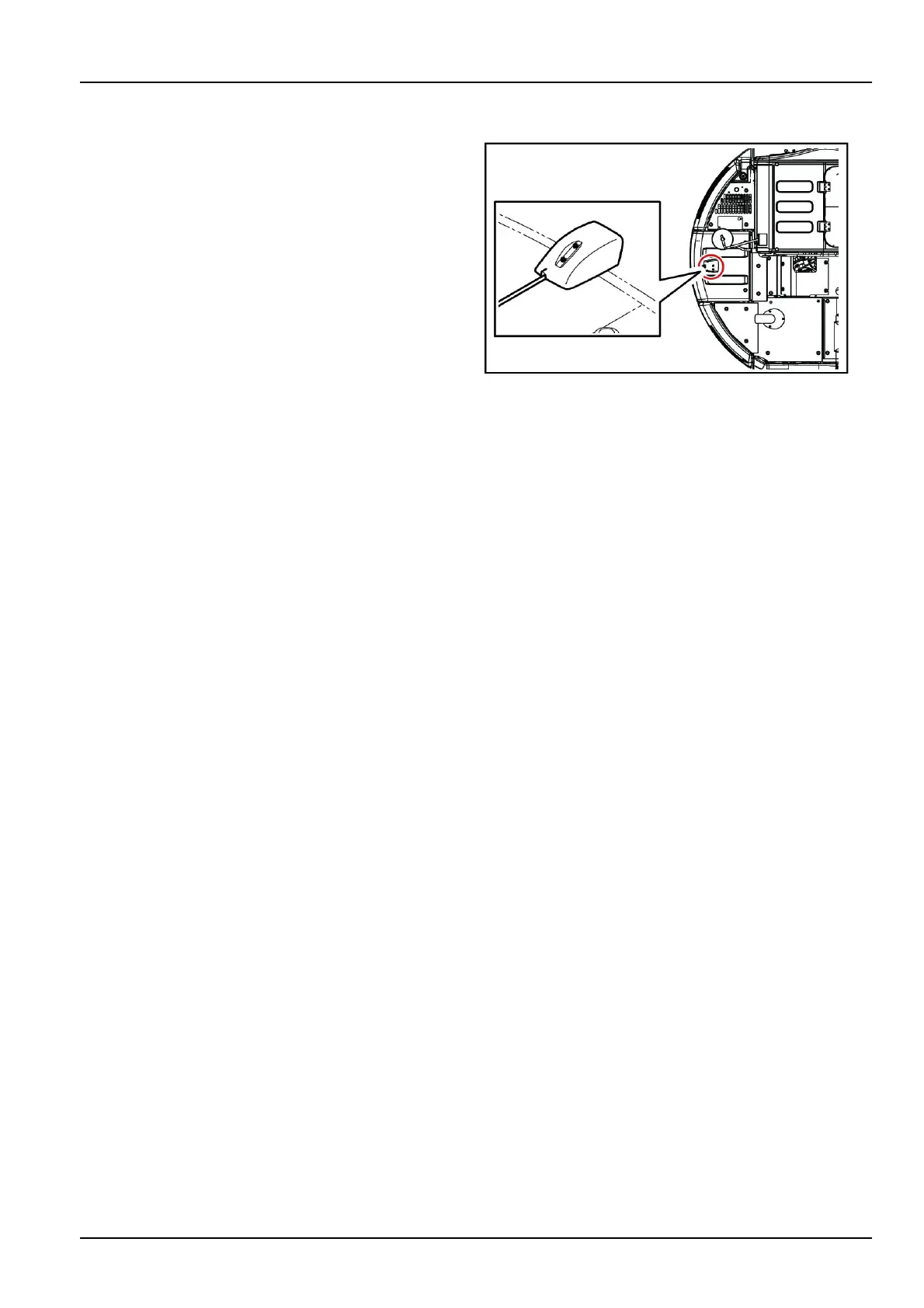

Rearviewcamera(option)

Locatedintherearofthemachine,makesuretherear

viewcameraiscleanbeforeundertakinganytravel.

SMIL13CEX2644AA1

3-45
