CASE CONSTRUCTION CX80C - Monitor Switches

3-CONTROLS/INSTRUMENTS

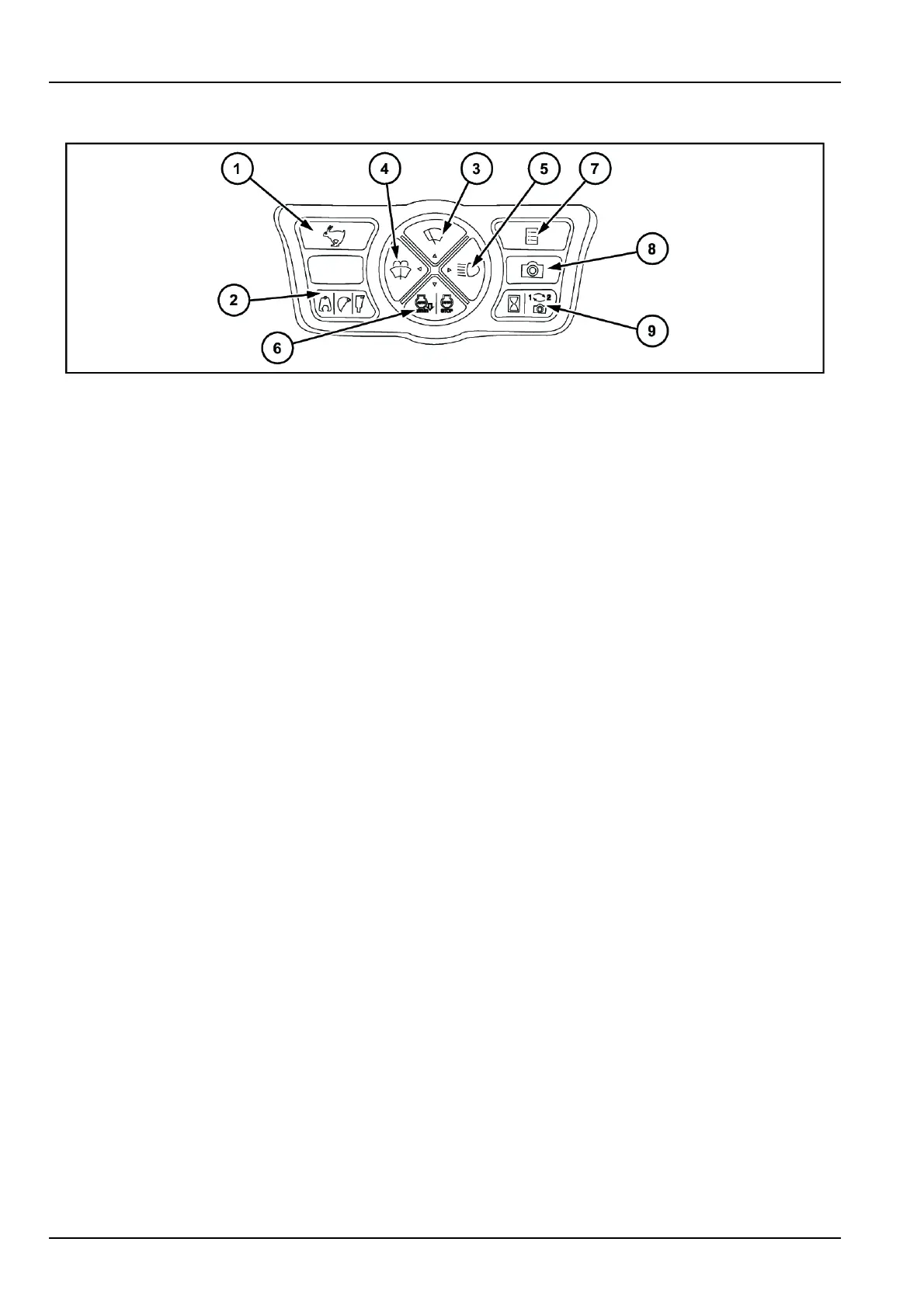

Monitorswitches
SMIL13CEX2600EB1
1.Travelspeedselectswitch
Pressthisbuttonswitchtoswitchthetravelspeed
fromlowspeed(I)(turtle)tohighspeed(II)(rabbit).
A"turtle"or"rabbit"isdisplayedonthemonitorscreen.
NOTICE:Performallchangestothetravelspeed
whilethemachineisstopped.Otherwise,thetravel
directionmaychange.
Lowspeed(I):"turtle"0km/h(0.0mph)to3.3km/h(2.1
mph).
Usefortravelonsloped,unevenorsoftground.
Highspeed(II):"rabbit"0km/h(0.0mph)to5.1km/h
(3.2mph).
Useongoodterrainthatishardandat.
NOTE:Whentheenginestarts,thelowspeedisselected
automatically.
NOTE:Ifthehydraulicpressuresystementersan
overloadstatewhilethehighspeedisselectedonthe
machine,thespeedischangedautomaticallytothe
lowspeed.Assoonasthehydraulicpressuresystem
recoversfromtheoverloadstate,thespeedreturnsto
thehighspeed.
2.Attachmentselectswitch
Whenusinganoptionalattachmentsuchasabreaker
orcrusher,pressthisswitchtoswitchtoasuitableow
andpressure.Theselectedattachmentisdisplayed
onthemonitorscreen.
NOTICE:Beforechangingtheattachmenttype,stop
operationandsetthemachineinparkingposition.
3.Frontwiperswitch
Thisswitchhas3positions:“Off”,"Intermittent"and
"Continuous".
Whentheswitchispressedtooperatethewipersin-
termittently,(I)isdisplayedonthemonitor.
Whentheswitchispressedagaintooperatethe
wiperscontinuously,(II)isdisplayedonthemonitor.
Whentheswitchispressedagaintostopthewipers,
“Off”isdisplayedonthemonitor.
NOTICE:Donotoperatethewiperswhenthefront
glassisdry.Doingsocoulddamagethewipers.
4.Windshieldwasherswitch
Thewindshieldwasherandwipersoperatewhilethis
switchispressed,andtheystopwhentheswitchis
released.
NOTICE:Donotoperatethewasherwhenthereser-
voirisempty.Doingsocoulddamagetheelectric
pump.
5.Workinglightswitch
Usethisswitchtoturntheworkinglightonoroff.
Whentheswitchispressed,theindicatorandthe
workinglightturnon.Pressagaintoturnthemoff.
6.Engineautoidlingandautostopswitch
Pressthisswitchtoswitchbetweennormalidling
(switchontherightsidecontrollever),autoidling,
andautostop.
Whenthisswitchispressed,anindicatorisdisplayed
onthemonitor.
•
Inautoidling,“Auton/min”isdisplayed,andinnormal
idling,thedisplayturnsoff.
If5sec.elapsewithoutanyoperationswhilethispo-
sitionisselected,theenginetransitionstotheidling
speed.(Thisintervalcanbelengthened.Consultyour
CASECONSTRUCTIONDealer.)
Whenapartsuchasthecontrolleverorpedalisoper-
ated,theenginereturnstoitsoriginalspeed.
•
Inautostop,"Autostop"isdisplayed.
-Enginespeedis1200rpmorless.
"Idling"state
-If3min.elapsewiththegatebarleverclosedand
withoutchangingtheenginespeed,"Idleshutdown"is
displayedonthemonitor.
-About10sec.after"Idleshutdown"isdisplayed,the
enginestops.
NOTICE:Toprotecttheengine,atleast3minofidling
isrequired.
NOTE:Torestarttheengine,rstsettheignitionkeyto
OFF,andthenstarttheengine.
•
Inautoidlingandautostop,“Auton/min”and"Auto
stop"aredisplayed.
3-18
