CASE CONSTRUCTION CX80C - Left-Hand Side Controls

3-CONTROLS/INSTRUMENTS
LEFT-HANDSIDECONTROLS
Left-handsidecontrols

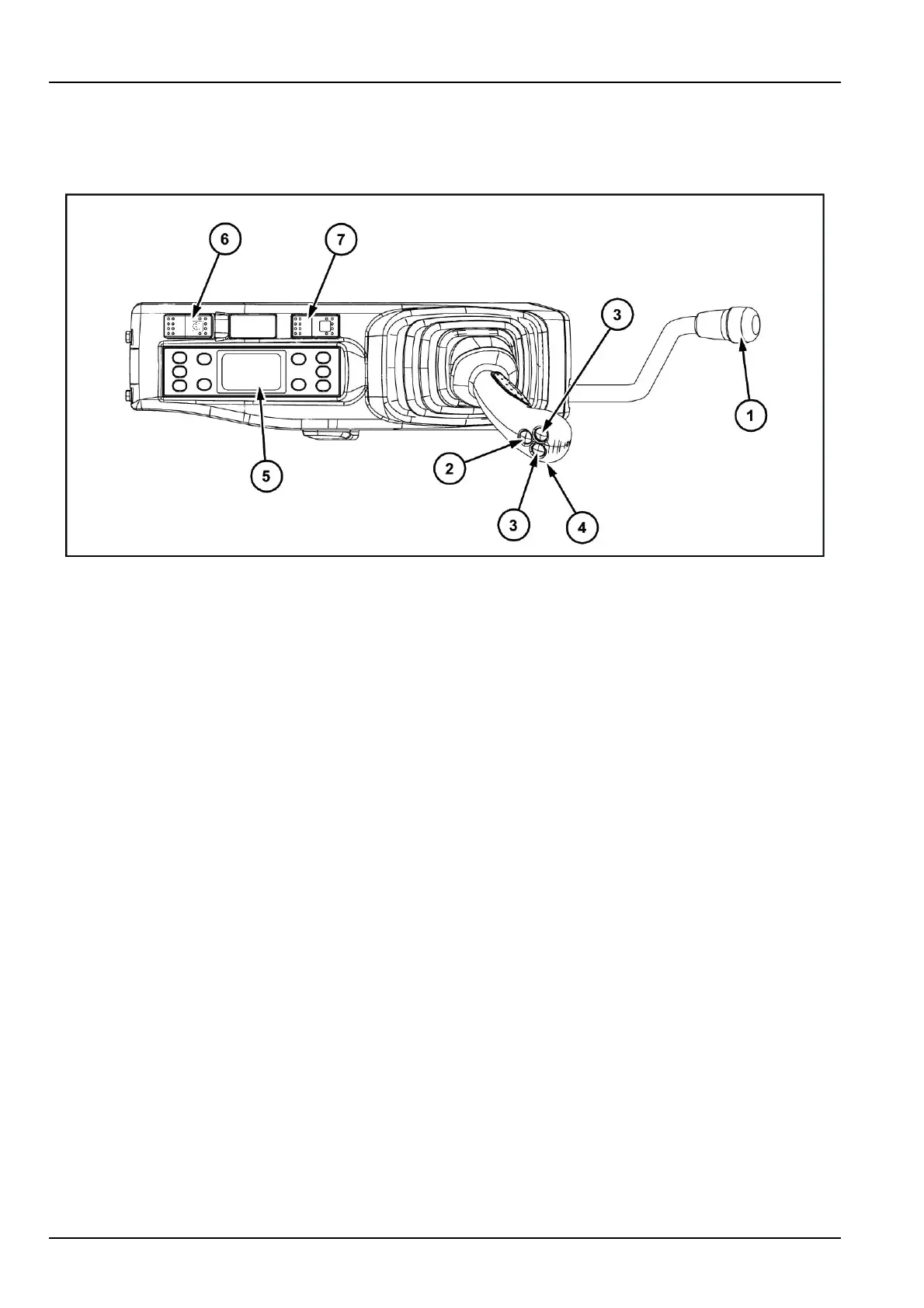

SMIL13CEX2619FB1
1.Gatelocklever(Safetybar)
Thepurposeofthissafetybaristopreventtheoper-
atorleavingtheoperator'scompartmentwithoutrst
operatingthegatelocklever(1).
2.Horn
Tosoundthehorn,presstheendoftheleft-handcon-
trollever.
NOTICE:alwayssoundthehornbeforeoperatingthe
machine.
3.Optioncontrol(ifequipped)
4.Carradiomutecontrol(ifequipped)
Locatedbelowthecontrollever,thiscontrolisused
tomutethesoundwithouthavingtooperatethecar
radio.
Pressandreleasethecontroltomutethesound.
Pressonceagainonthecontrolandrelease,the
soundisrestored.
NOTE:withtheenginestopped,ifthesoundismuted,
itwillstillbeactivewhentheengineisrestarted.
5.Heating,ventilationorairconditioningcontrol
6.Emergencyshutdownswitch
Thiscontrolenablestheenginetobeshutdownin
emergencyorwhenitisnotpossibletoshutitdown
bymeansoftheignitionkey.
Pressonthefrontofthecontrol,theenginestops,the
audiblewarningdevicesounds,thecontrolindicator
lampcomesonandthemessage"Enginestop"isdis-
played.
Tostarttheengineagain,pressonthebackofthe
controloncemoreandthenturntheignitionkeyto
starttheengine.
NOTICE:thisswitchshouldonlybeusedincaseof
anemergency.
7.Quickcouplerlockingandunlockingcontrolswitch
(optional).Refertopage3-33.
