3-CONTROLS/INSTRUMENTS

Proportionalswitch(ifequipped)

Thisswitchisusedforoptionalaccessoriessuchas

clamshell,ifequipped,etc.

NOTE:consultyourCASECONSTRUCTIONDealerto

selecttheoptionalaccessorycompatiblewithyourma-

chineandtocorrectlyadjusttheowrequiredforitsuse.

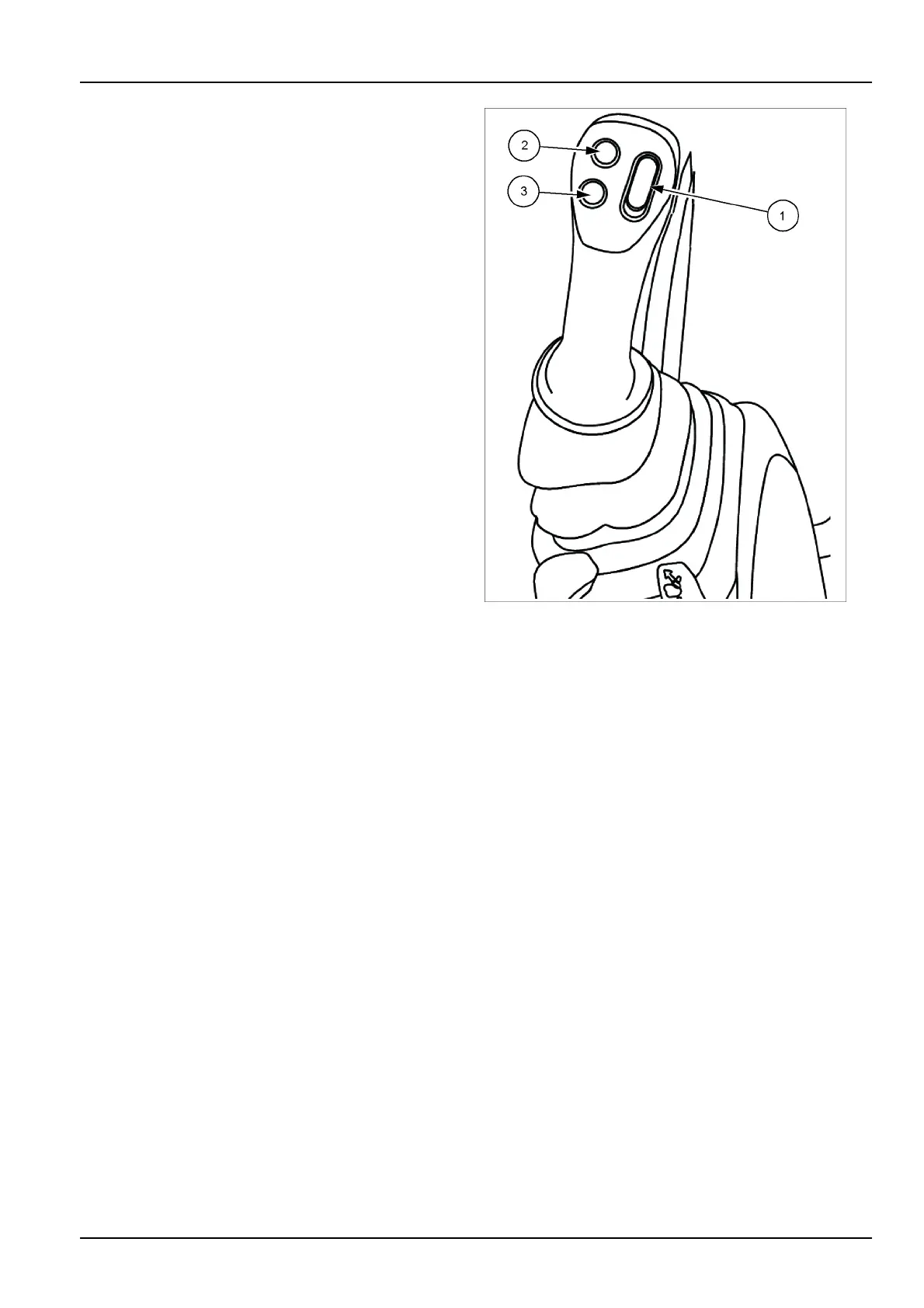

(1)Proportionalswitch(Optioncontrolswitch).

(2)Optioncontrolswitch

(3)Hornswitch

3208F2E6_TU2

3-27
