CASE CONSTRUCTION CX80C - Feed Pump

6-MAINTENANCE

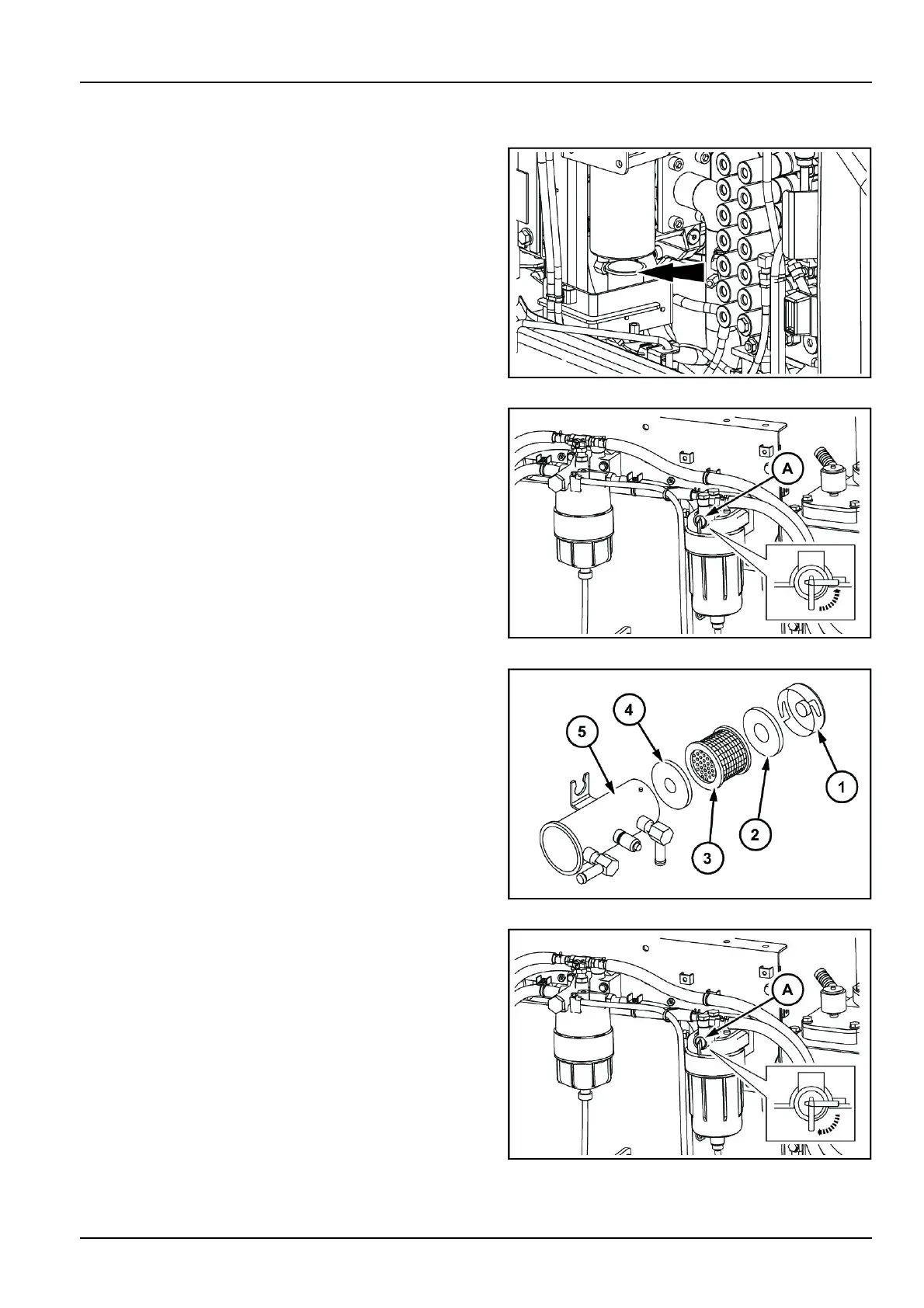

Feedpump
Tocleanthelterofthefuelsupplypumpproceedas
follows:
1.Placeacontainerwithsuitablecapacityunder-
neaththefuelsupplypump(locatedtotheleft
andbelowthefuelmainlter).
SMIL13CEX2890AB1
2.Closethefuelpre-ltervalve(A),thenremove
thefuelsupplypump.
SMIL13CEX2891AB2
3.Openthepumpcover,thenpulloutthelter(3)
andtheseals(2)and(4).
4.Cleanthelter(3)withcompressedair.Check
thelter(3)andreplaceitifnecessary.Re-
placetheseals(2)and(4)withnewseals.
5.Carefullycleanthebody(5)andthecover(1).
Neverleaveanydirtinthefuelsupplypump.
6.Installthesealscarefullyinthecorrectorderas
youre-assembleandinstallthepump.
SMIL13CEX2892AB3
7.Openthefuelpre-ltervalve(A).
8.Bleedtheairfromthefuelline.
SMIL13CEX2893AB4
