6-MAINTENANCE

Greasepoints(Dozerblade)

SMIL13CEX2976FB1

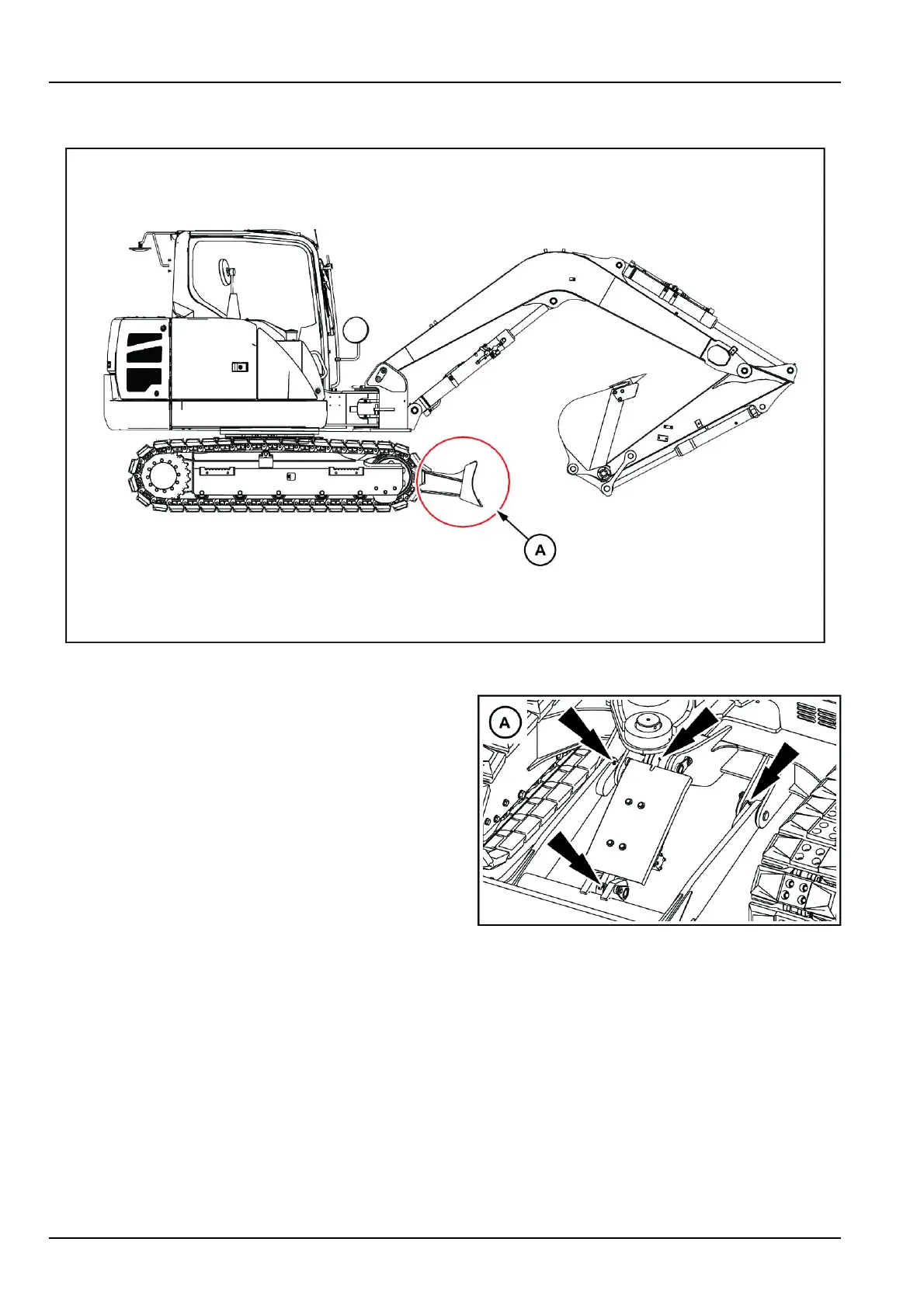

Usingagreasegun,injectgreaseofthespeciedtypeinthegreasepointsshowningure.

•

Blade,bladecylinderfootpinandbladecylin-

dertoppin.

NOTE:afterlubrication,rettheprotectiveplasticcapsto

thegreasettings.

SMIL13CEX2977AB2

6-24
