CASE CONSTRUCTION CX80C - Operators Seat; Pneumatically-Adjusted Operator Seat - Control Identification

3-CONTROLS/INSTRUMENTS
OPERATOR'SSEAT
Pneumatically-adjustedoperatorseat-Controlidentication
Inordertooperatethemachinecorrectlyandwithmaximumefciencyandcomfort,adjusttheseattosuittheweight
andsizeoftheoperator.
NOTE:theadjustmentoftheseatcanonlybecarriedoutwhentheoperatorisseatedintheseatandtheengineis
shutdown.

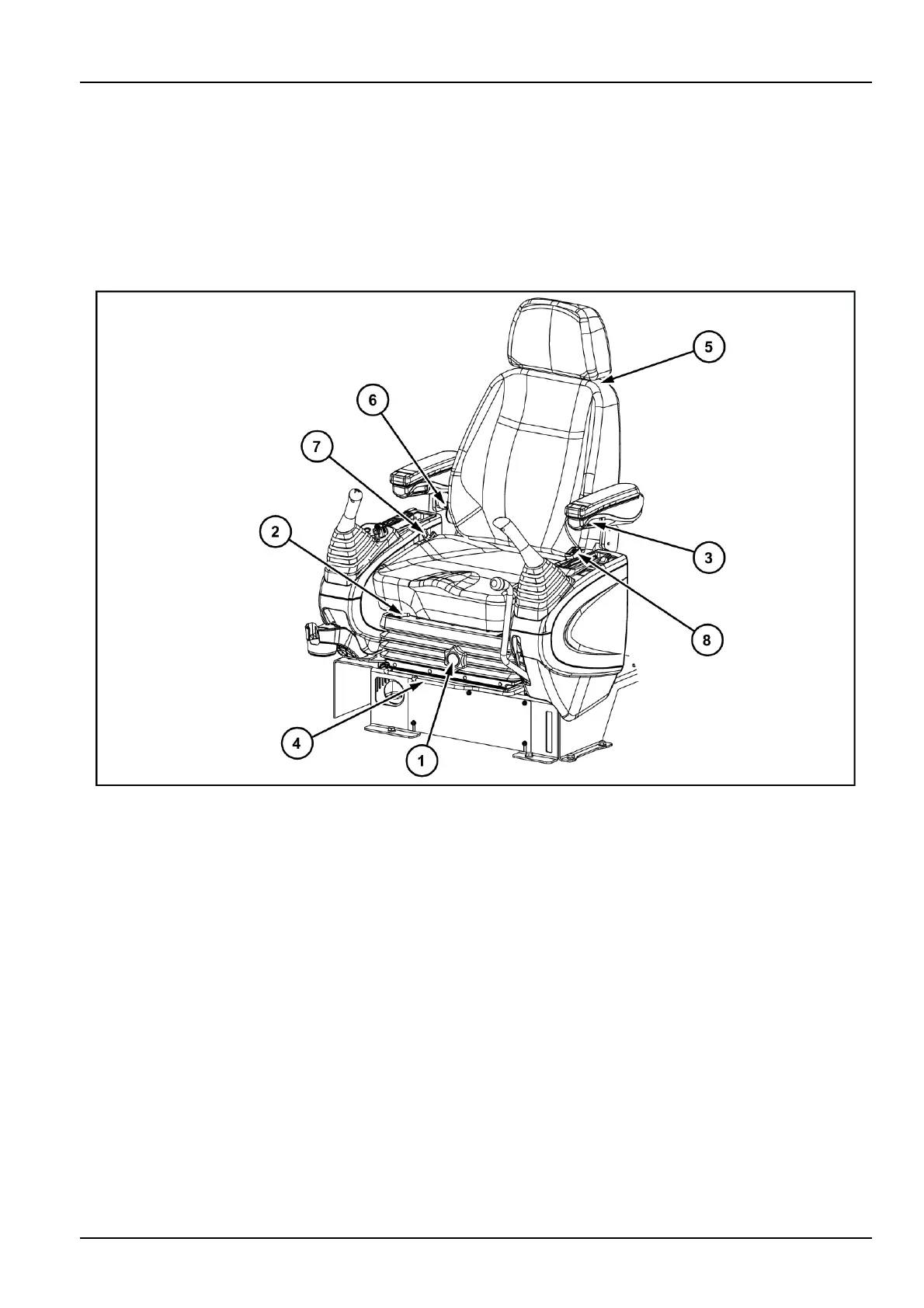

SMIL13CEX2569FA1
1.Heightandweightadjustmentsection
2.Forwardandbackpositionadjustmentsection
3.Armrestangleadjustmentsection
4.Seat/controlarmassemblyforward-backadjustment
section
5.Headrestadjustmentsection
6.Seatbackangleadjustmentsection
7.Seatbelt
8.Buckle
3-3
