3-CONTROLS/INSTRUMENTS

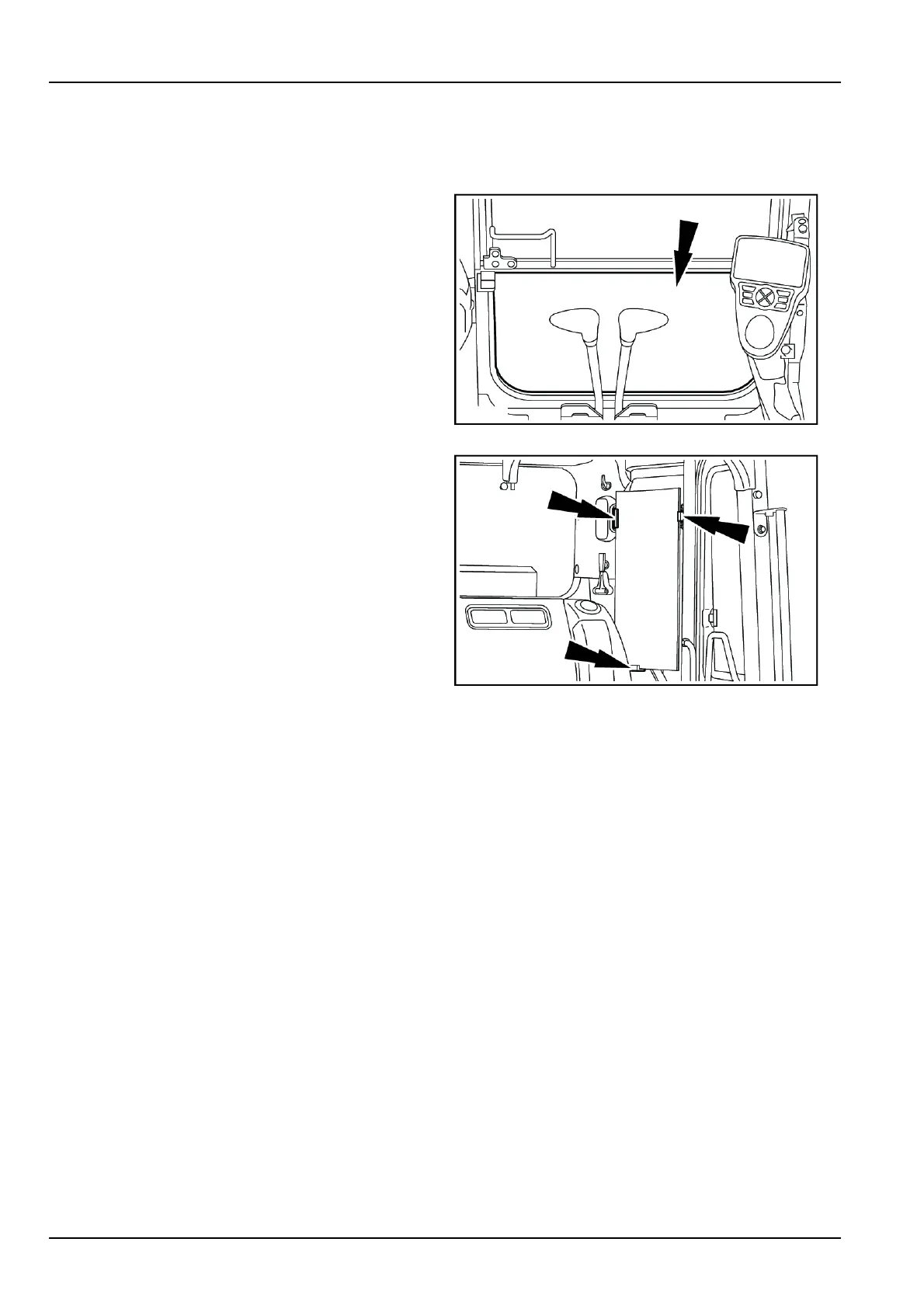

Frontlowerwindow

Thefrontlowerwindowmayonlyberemovedwhenthe

windshieldisopen.

1.Removethewindowfromitshousingbyslidingitup-

ward.

SMIL13CEX2594AB1

2.Placethewindowinthestoragepositionprovidedto

theleftoftheoperator'sseatandthenengageitcor-

rectly.

SMIL13CEX2595AB2

3-12
