5-TRANSPORTOPERATIONS

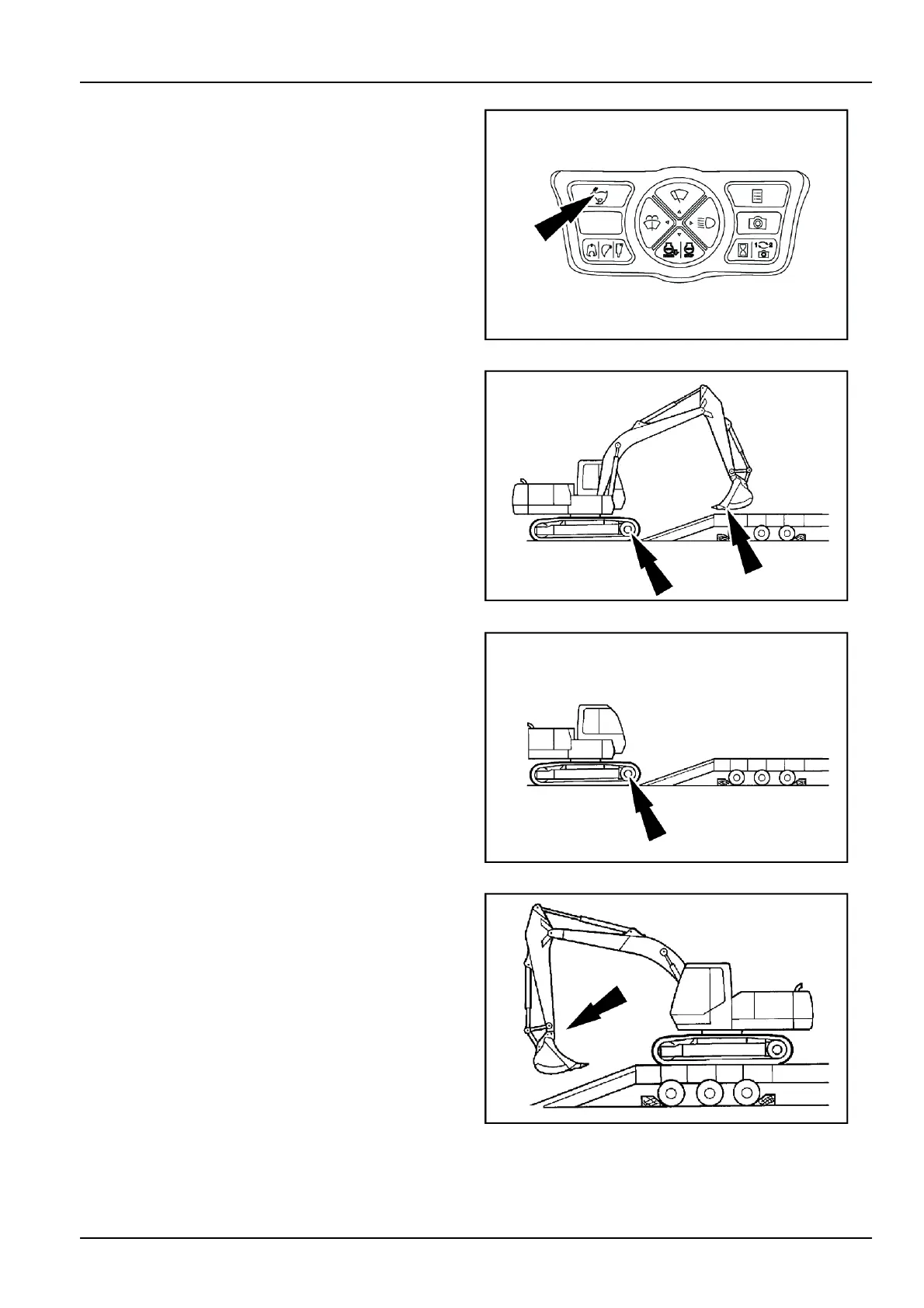

3.Selectlowtravelspeed,indicatorlampoff.A"turtle"
isdisplayedonthemonitor.
4.Raisethedozerblade.
SMIL13CEX2719AB3
5.(Machinewithattachment)
Placethemachineinlinewiththetrailer,withthetravel
reductiongearstowardstheaccessramps.Raisethe
attachmentandbringittoabout20cm(7.9in)above
thebedofthetrailer.
NOTICE:inthisposition,thetravelandsteeringcontrols
arereversed.
SMIL13CEX2720AB4
5.(Machinewithoutattachment)
Placethemachineinlinewiththetrailer,withthetravel
reductiongearstowardstheaccessramps.
NOTICE:inthisposition,thetravelandsteeringcontrols
arereversed.
SMIL13CEX2721AB5
6.(Machinewithattachment)
Whenthemachineiscompletelyonthetrailer,swing
theupperstructuretobringtheattachmentroundtothe
rampend.
SMIL13CEX2722AB6
5-3
