6-MAINTENANCE
1Keyswitch15A
2Enginecomputer20A
3CASESiteWatch™system5A
4Backup(radio,roomlamp)10A
5Gatelocklever10A
6Solenoid10A
7Horn10A
8Cabtoplight15A
9Boom,houselight15A
10Optionpowersupply15A
11Wiper,washer15A
12Travelalarm,signallamp10A
13Cigarlighter,seatsuspension10A
14DCconverter10A
15Airconditionerunit5A
16Airconditionerblowermotor15A
17Airconditionercompressor5A
18Optionpowersupply10A
19Feedpump15A
20Optionlinesolenoid10A

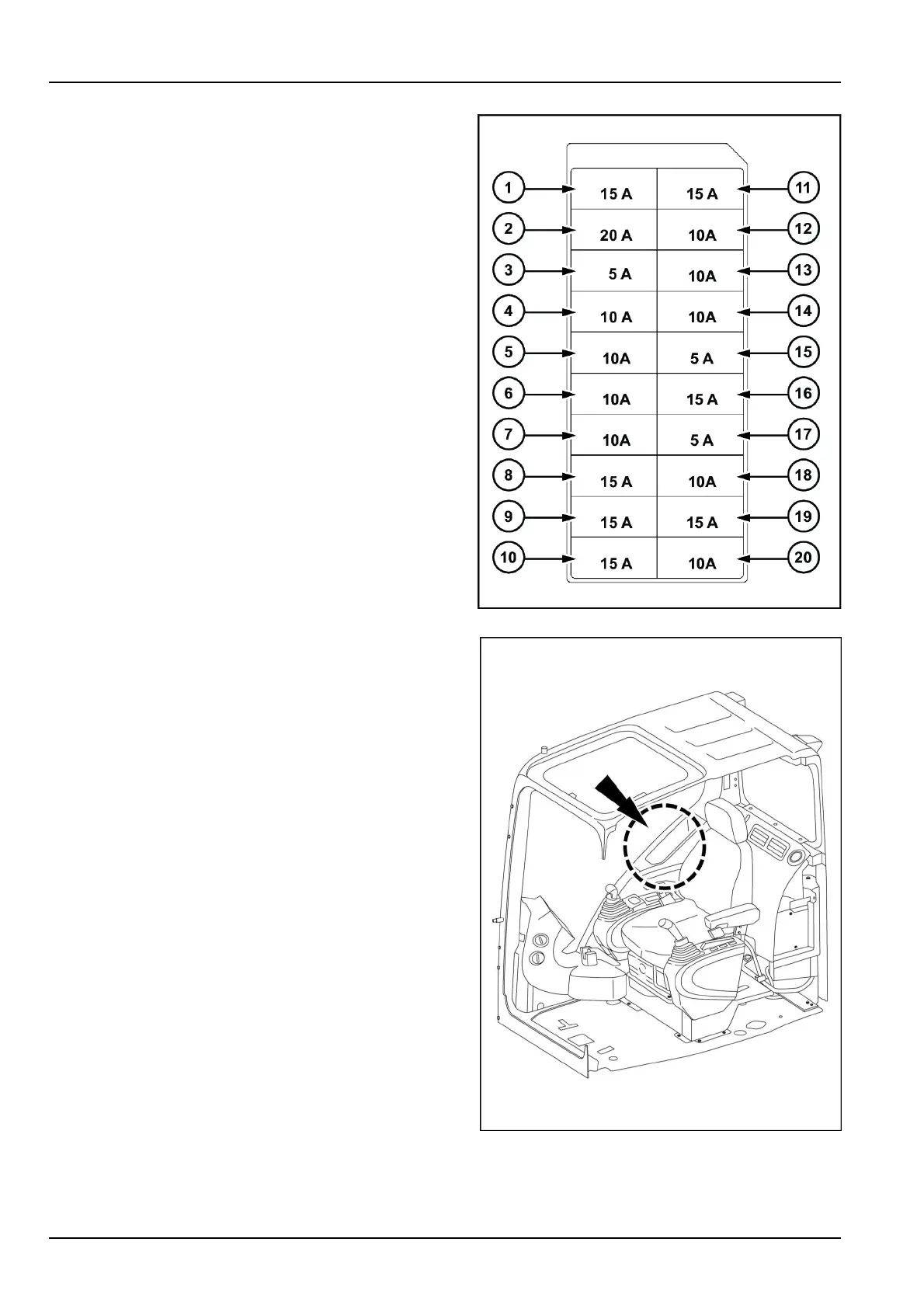

SMIL13CEX2901BB3
NOTE:theTelematics(CASESiteWatch™)systemhas
anadditionalexternalfuselocation.Afuseof5Aislocated
onthewireharnessundertheright-handsidelateralcover.
