2-SAFETYINFORMATION

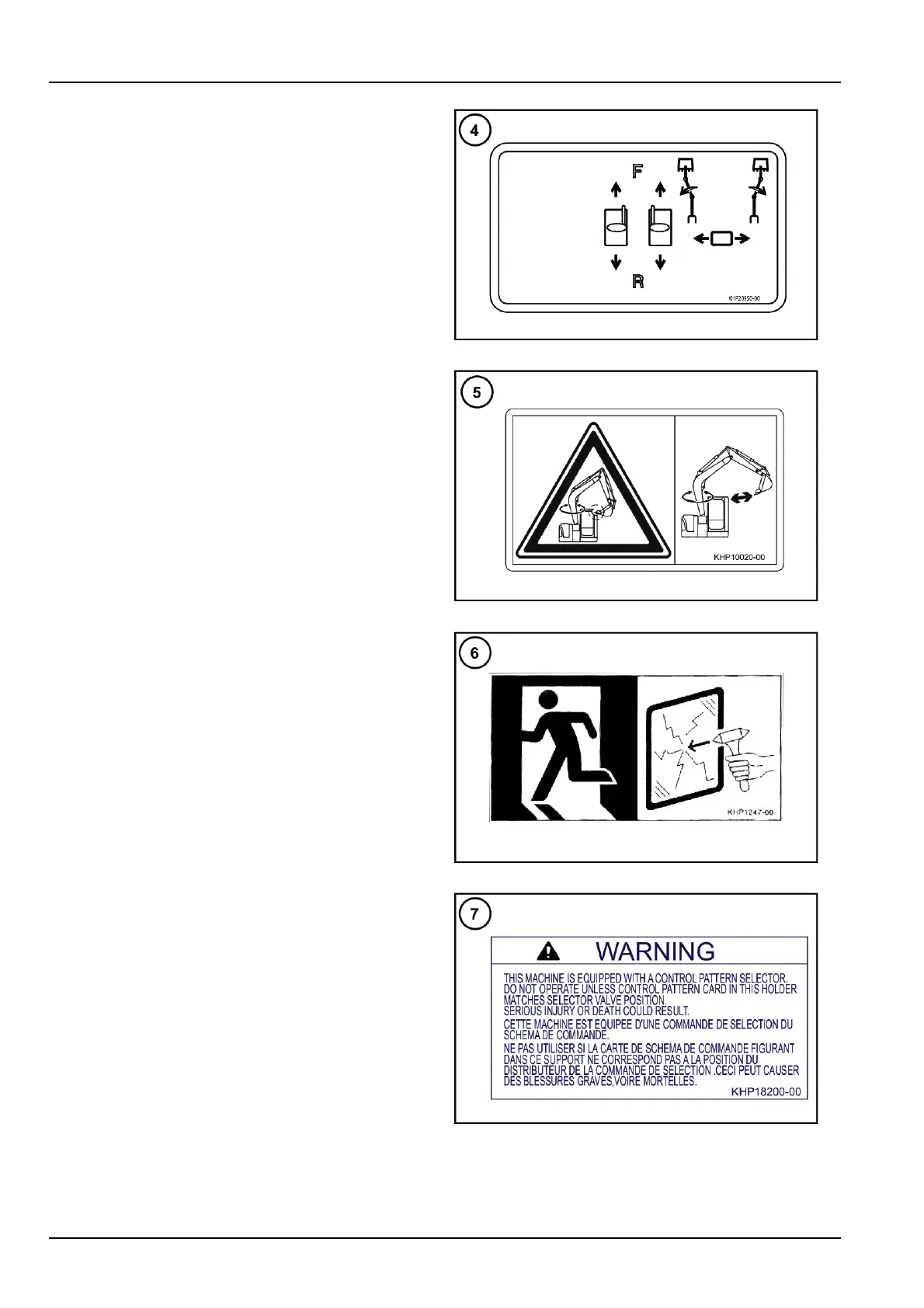

KHP20950(footcontrol)(offsetboom)

SMIL13CEX2927AB19

Attachmentimpacthazard

Partnumber:KHP10020

SMIL13CEX2936AB20

Emergencyexit

Partnumber:KHP1247

Thisdecalshowsthelocationandwayhowtousethe

emergencyexit(rearwindow).

SMIL13CEX2532AB21

Controlpatternselector(ifequipped)

Partnumber:KHP18200

Thismachineisequippedwithacontrolpatternselector.

Donotoperateunlesscontrolpatterncardinthisholder

matchesselectorvalveposition.Seriousinjuryordeath

couldresult.

SMIL13CEX2849AB22

2-22
