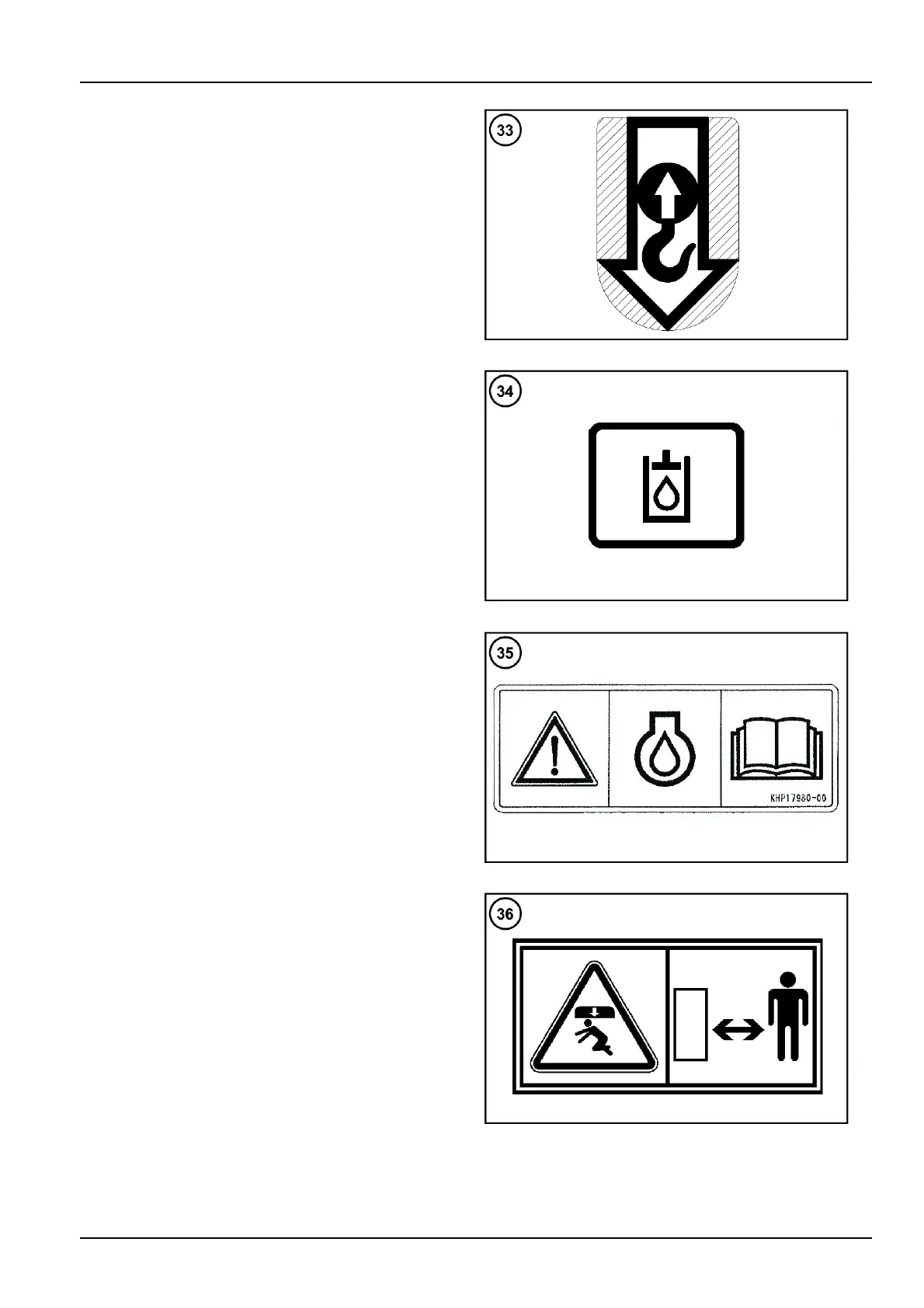

2-SAFETYINFORMATION

Slingingpoints

Partnumber:KHP19380

Thisdecalshowswheretoattachslingswhenhandling

theexcavator.Neveruseanyotherslingingpointsapart

fromthosedesignedbythisdecal.

SMIL13CEX2861AB47

Hydraulicreservoir

Partnumber:KHP1330

Thisdecalshowsthelocationofthehydraulicreservoir.

SMIL13CEX2862AB48

Engineoil

Partnumber:KHP17980

Thisdecalgivescautionsaboutusageoftheengineoils

otherthantheonespecied.Usingtheengineoilother

thantheonespeciedcandamagetheengine.Please

beawarethattroubleresultingfromuseofanothertype

ofengineoilisnotcoveredbythewarranty.

SMIL13CEX2863AB49

Itisforbiddentostandwithintheworkingrangeofthe

attachment

Partnumber:KHP1388

Thisdecalremindstheoperatornottoallowanyoneto

standwithintheworkingrangeoftheattachmentwhile

theengineisrunning(riskofbeingcrushed).

SMIL13CEX2559AB50
