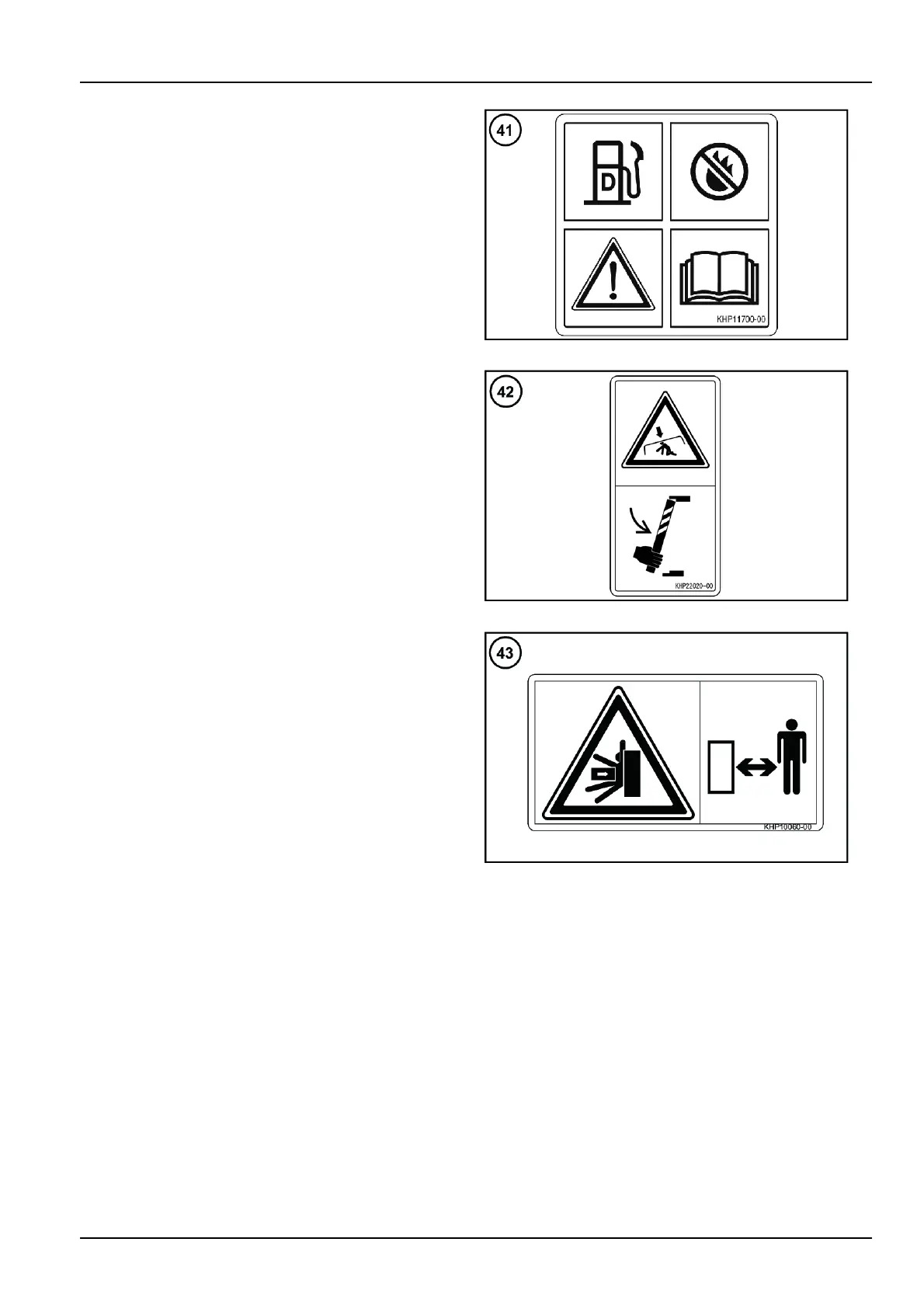

2-SAFETYINFORMATION

Fueltank

Partnumber:KHP11700

Thisdecalshowsthelocationofthefueltankandthat

suitablefuelmustbeused.

SMIL13CEX2865AB55

Openingtheenginehood

Partnumber:KHP22020

Thisdecalindicatesthattheenginehoodmaybelower

andcausetheoperatortobeinjured.Whenopeningthe

enginehood,alwayslockittopreventfromlowering.

SMIL13CEX2887AB56

Crushhazard

Partnumber:KHP10060

SMIL13CEX2990AB57

2-31
