Hardware
1 x RW-AL Ground Brace 5/4 x 4 x 28”
Wood Parts
100

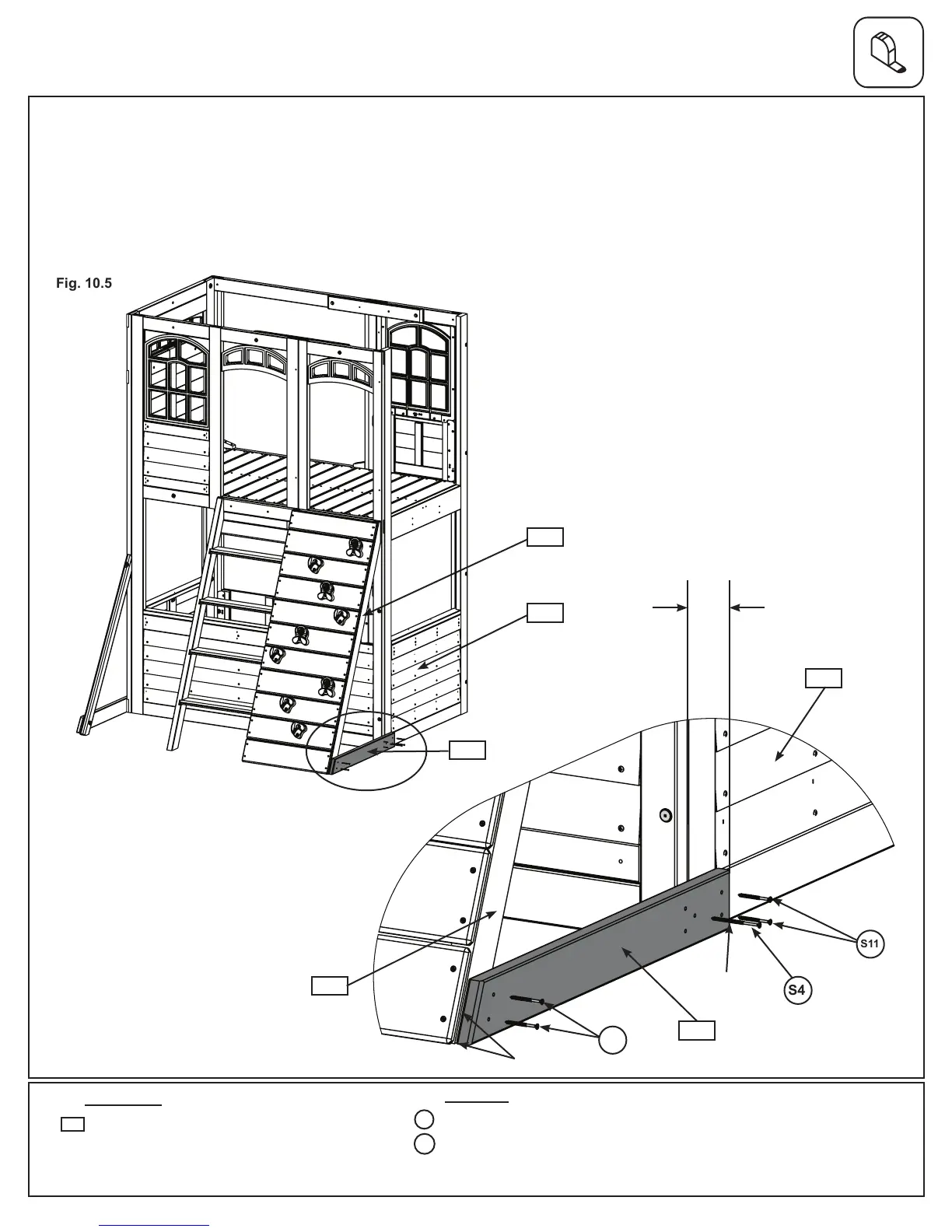

C: On the straight end of the (100) RW-AL Ground Brace measure 4-1/4” in and mark board. Line the mark on
the board up so it’s ush with the (041) Narrow Panel Back then attach it to (040) End Slide Panel with 2 (S11) #8
x 2” Wood Screws and 1 (S4) #8 x 3” Wood Screw. (g. 10.5 and 10.6)
D: Attach other end of (100) RW-AL Ground Brace to (024) Rock Rail with 2 (S11) #8 x 2” Wood Screws. (g.
10.5 and 10.6)
Fig. 10.5
Step 10: Attach Access Ladder/Rockwall Assembly
Part 3
Fig. 10.6
040
1 x #8 x 3” Wood Screw
4 x #8 x 2” Wood Screw
S11
S4
S4
024
S11
040
024
100
Flush
Flush
100
S11
4-1/4”
