Cessna 150M - Page 107

THRU AIRCRAFT SERIALS
15074399,
A15000387, F150- 7 8
7
0~943 AND FA15000211 ~ ~ 3
6~ • ~~ /
5
~4 ~(;~\: tfJ·. /r @ ~>l2
~ 1, • I
, ~ '-'. e _ lib
~' ", 8
• ~ 5 \!l!$
1. Drive Pulley
2. Direct Cable
3. Retract Cable
4. Turnbuckle
5. Bracket
6. Bushing
7. Cable Guard
8. Pulley
9. Switch
10. Clamp
11. Wire
12. Tubing
13. Support Clamp
14. Trim
15. Indicator Pointer
16. Spring
NOTES
•
Secure wire (11) by wrapping
around screw two times.
D
*Lubricate wire (11) in accordance
with Section 2.
MAINTAIN PROPER CONTROL
CABLE TENSION.
CABLE TENSION:
30 LBS ± 10 LBS (AT AVERAGE TEMPER-
A TURE FOR THE AREA. )
REFER TO FIGURE 1-1 FOR TRAVELS.
Detail A Detail B
7
V I 2
.JW
Detail C
14
\ ~ 5
7
"~ \
1
~"" '
f6D7
Detail B
BEGINNING WITH AIRCRAFT
SERIALS 15074400, A15000388,
F15000944
AND FA15000212
10
2
12
Detail D

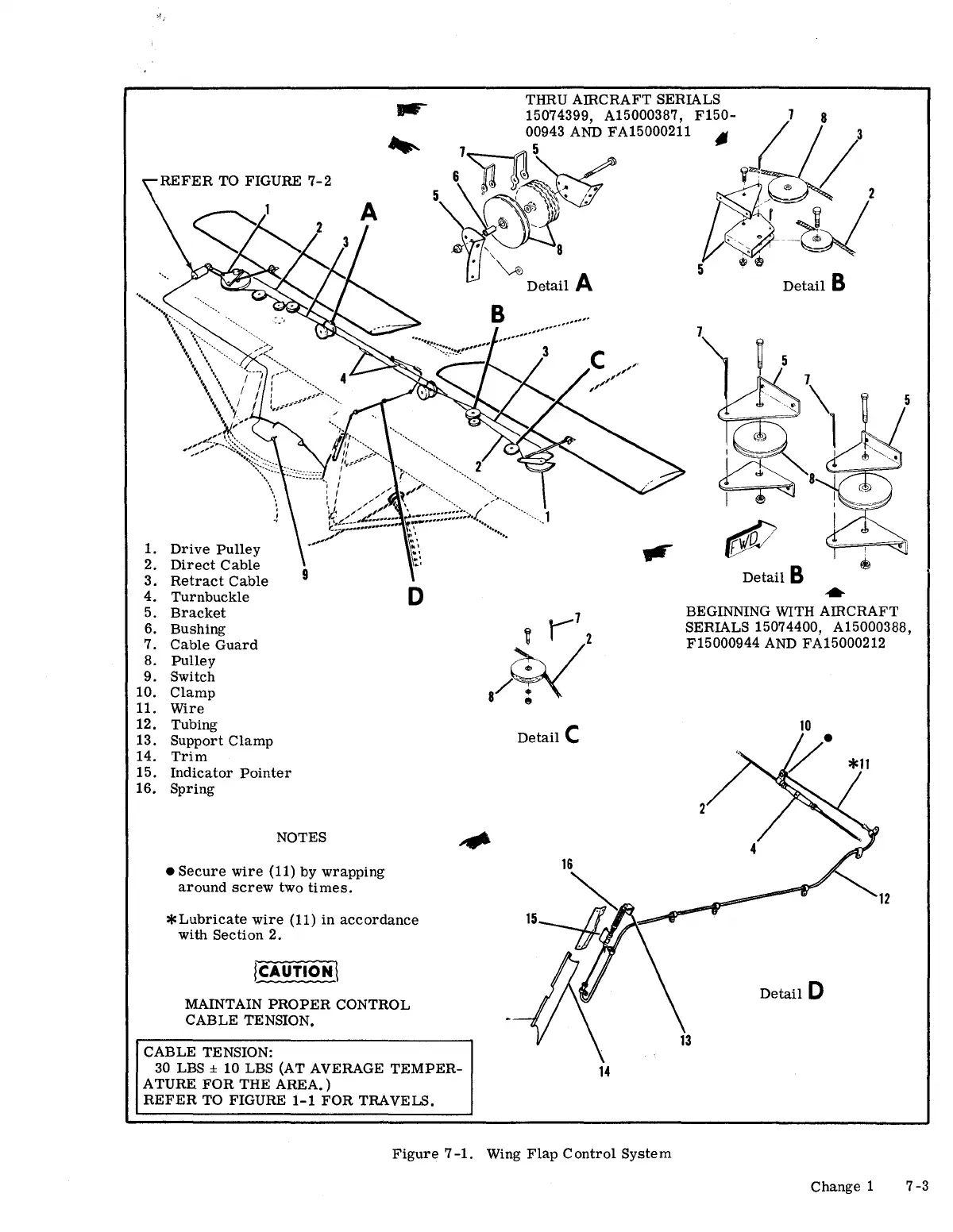

Figure 7 -1. Wing Flap Control Syste m
Change 1 7-3
