Cessna 150M - Flap Leading Edge Repair

1/4" MINIMUM EDGE MARGIN -- .......
II
I:::!::::::::::::::::::;::::;:::I:':'I
DOUBLER - 2024-T3
ALCLAD.020
ORIGINAL PARTS
REPAIR PARTS
e
c
D
TRIM OUT DAMAGED AREA
FLAP LEADING EDGE SKIN
REPAIR DOUBLER TO BUTT
AGAINST CORRUGA TED SKIN
A T
TOP AND BOTTOM OF FLAP
-
------
FLUSH PATCH SIMILAR
TO THIS MAYBE USED
IF NEEDED.
_--1/8" DIA. RIVETS

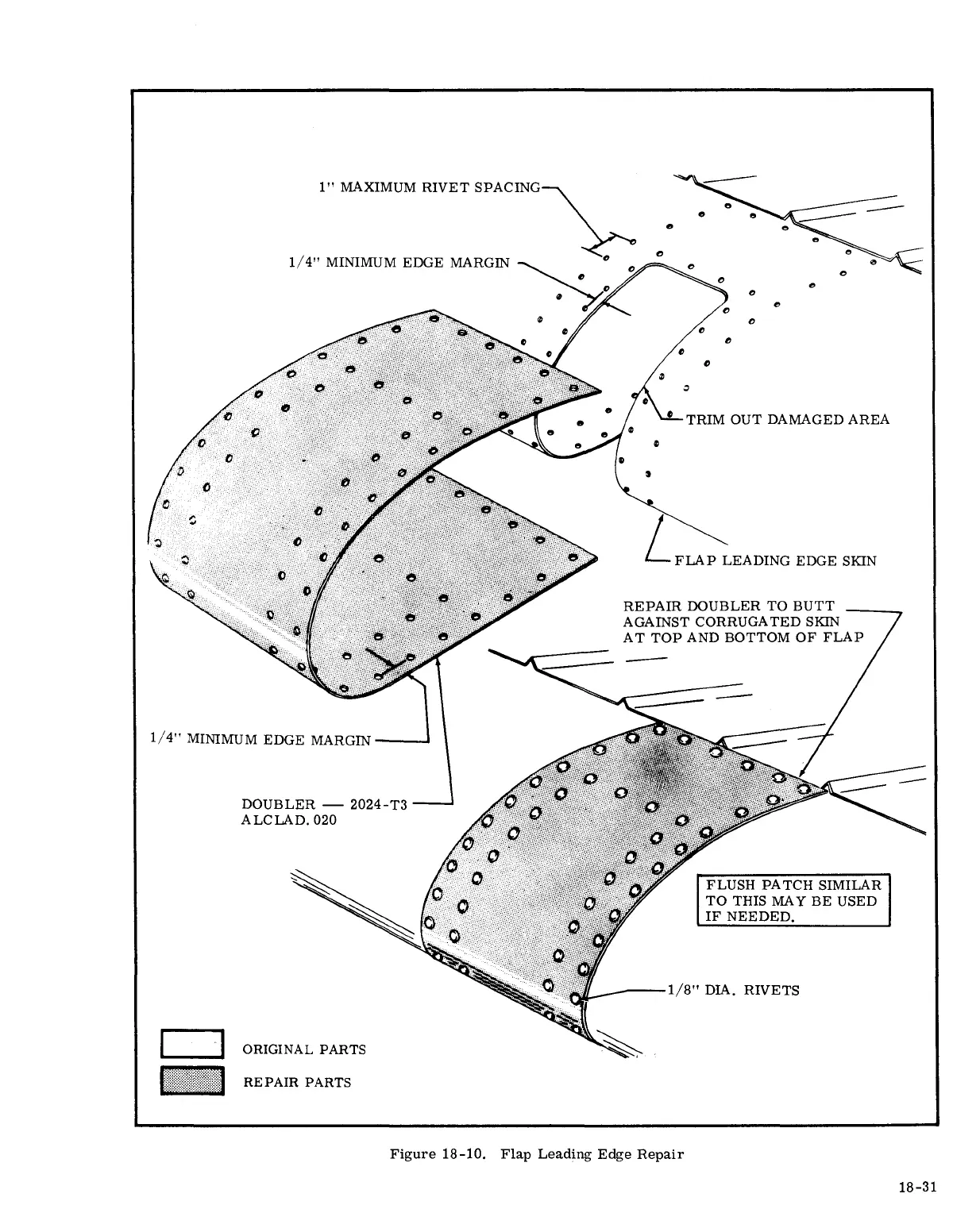

Figure 18-10. Flap Leading Edge Repair
18-31
