Cessna 150M - Cabin Headliner Removal and Installation; Auxiliary Seat

3
1. Bottom Frame
2. Seat Bottom
3. Safety Belt
4. Seat Back
5. Seat Back Support
6. Belt Anchor
7. Frame Bracket
8. Spacer

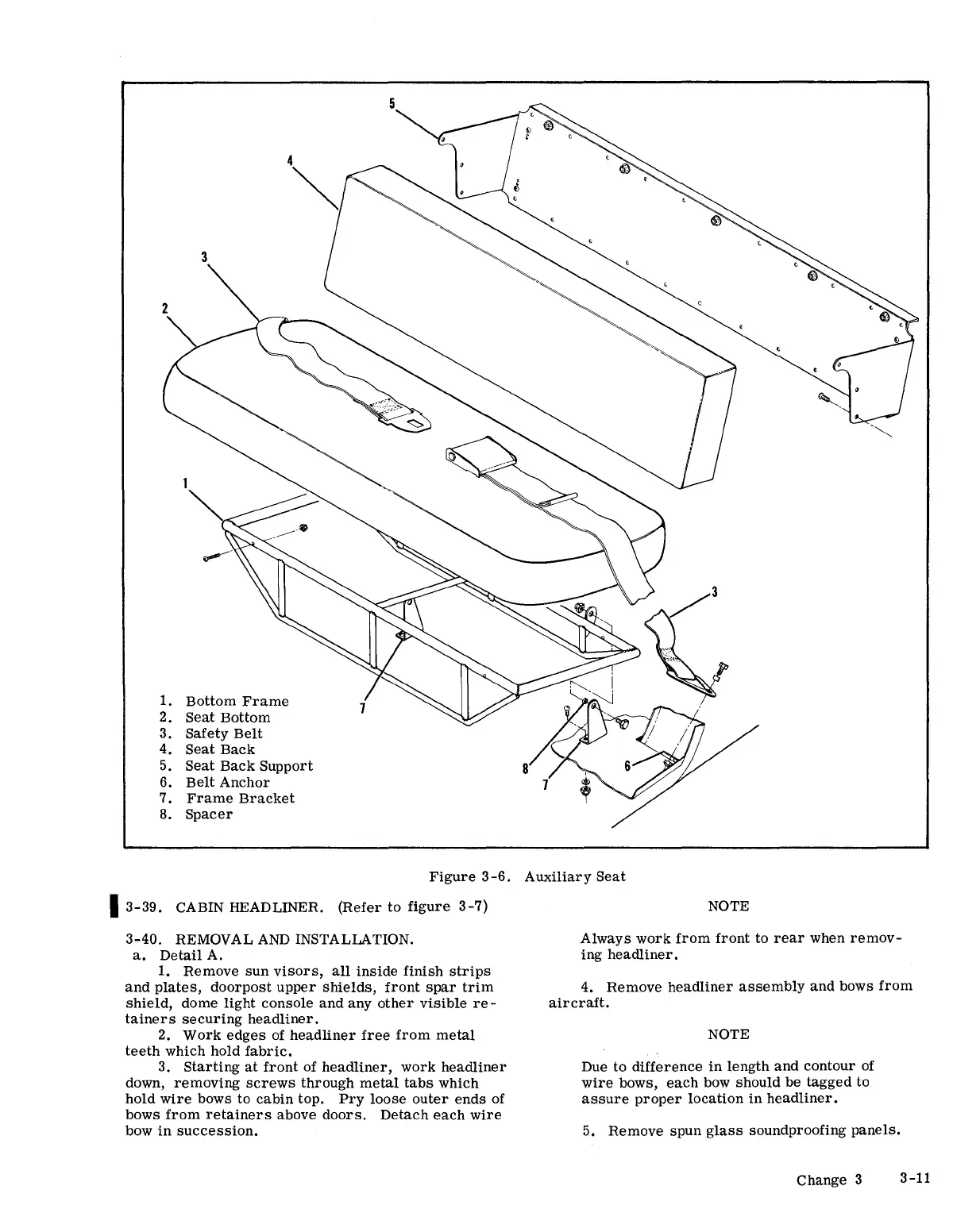

Figure 3-6. Auxiliary Seat
I 3-39. CABIN HEADLINER. (Refer to figure 3-7)
NOTE
3-40. REMOVAL AND INSTALLATION.
a. Detail A.
1. Remove sun visors, all inside finish strips
and plates, doorpost upper shields, front spar trim
shield, dome light console and any other visible re-
tainers securing headliner.
2. Work edges of headliner free from metal
teeth which hold fabric.
3. Starting at front of headliner, work headliner
down, removing screws through metal tabs which
hold wire bows to cabin top. Pry loose outer ends of
bows
from retainers above doors. Detach each wire
bow in succession.
Always work from front to rear when remov-
ing headliner.
4. Remove headliner assembly and bows from
aircraft.
NOTE
Due to difference in length and contour of
wire bows, each bow should be tagged to
assure proper location in headliner.
5. Remove spun glass soundproofing panels.
Change 3 3-11
