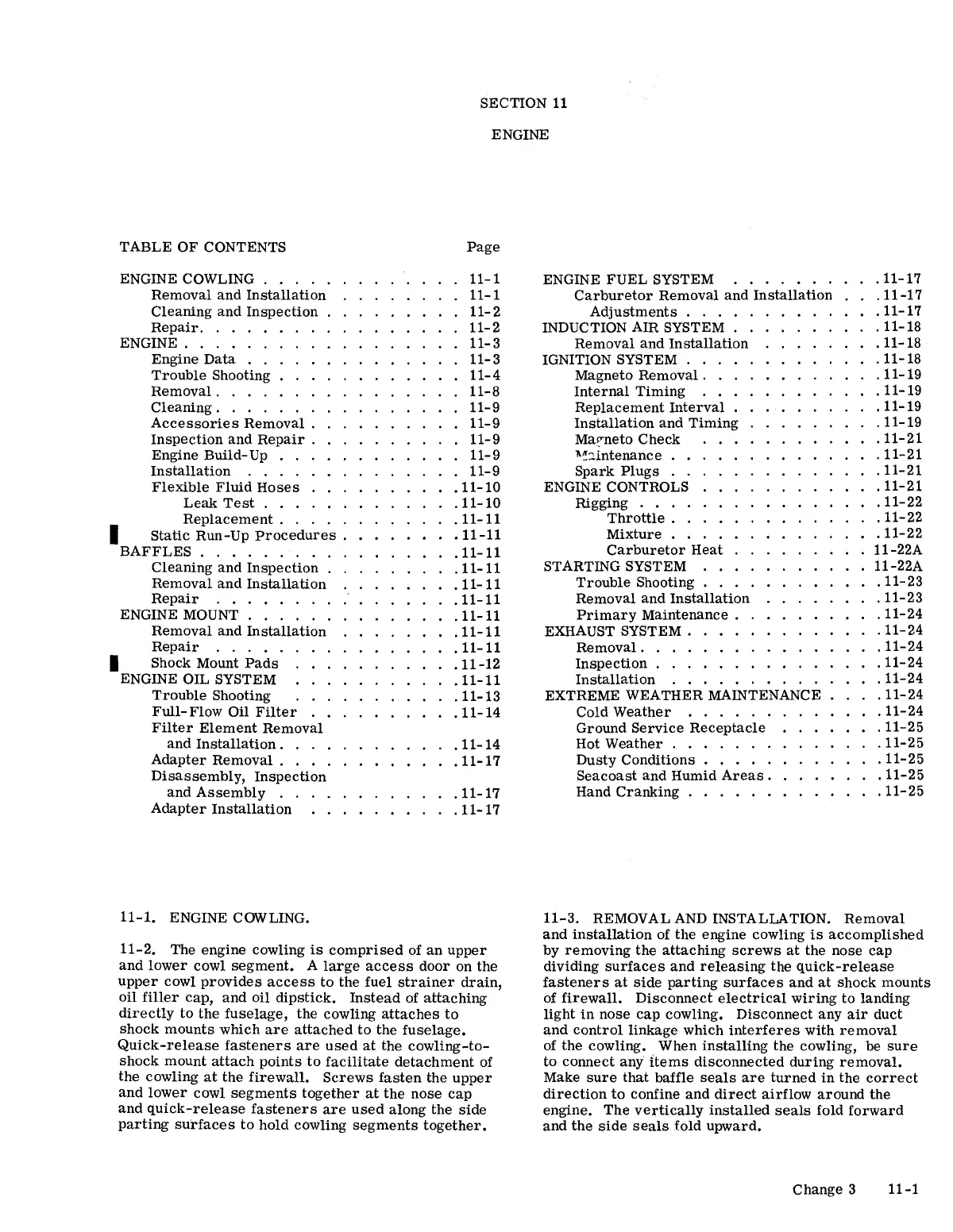

Cessna 150M - Engine; Engine Cowling

SECTION 11
ENGINE
TABLE OF CONTENTS Page
ENGINE COWLING .
11-1
Removal and Installation 11-1
Cleaning and Inspection 11-2
Repair.
11-2
ENGINE.
11-3
Engine Data
11-3
Trouble Shooting 11-4
Removal. 11-8
Cleaning. 11-9
Accessories Removal. 11-9
Inspection and Repair . 11-9
Engine Build- Up 11-9
Installation 11-9
Flexible Fluid Hoses
.11-10
Leak Test. .11-10
Replacement . . 11-11
I
Static Run-Up Procedures.
. 11-11
BAFFLES.
.11-11
Cleaning and Inspection .
.11-11
Removal and Installation
.11-11
Repair
.11-11
ENGINE MOUNT .
.
11-11
Removal and Installation
. 11-11
Repair
.11-11
I
Shock Mount Pads
.11-12
ENGINE OIL SYSTEM
.11-11
Trouble Shooting
.11-13
Full-Flow Oil Filter
.11-14
Filter Element Removal
and Installation.
. 11-14
Adapter Removal .
.
11-17
Disassembly, Inspection
and Assembly
.11-17
Adapter Installation
.11-17
11-1. ENGINE COWLING.
11-2. The engine cowling is comprised of an upper
and lower cowl segment. A large access door on the
upper cowl provides access to the fuel strainer drain,
oil filler cap, and oil dipstick. Instead of attaching
directly to the fuselage, the cowling attaches to
shock mounts which are attached to the fuselage.
Quick-release fasteners are used at the cowling-to-
Shock mount attach points to facilitate detachment of
the cowling at the firewall. Screws fasten the upper
and lower cowl segments together at the nose cap
and quick-release fasteners are used along the side
parting surface s to hold cowling segments together.
ENGINE FUEL SYSTEM
.11-17
Carburetor Removal and Installation .11-17
Adjustments .
.11-17
INDUCTION AIR SYSTEM .
.11-18
Removal and Installation
.11-18
IGNITION SYSTEM .
.11-18
Magneto Removal.
.11-19
Internal Timing
.11-19
Replacement Interval .
.11-19
Installation and Timing
.11-19
Maf."neto Check
.11-21
l\'!::lntenance .
.11-21
Spark Plugs
.11-21
ENGINE CONTROLS
.11-21
Rigging
.11-22
Throttle .
.11-22
Mixture .
.11-22
Carburetor Heat 11-22A
STARTING SYSTEM
11-22A
Trouble Shooting .
.11-23
Removal and Installation
.11-23
Primary Maintenance .
.11-24
EXHAUST SYSTEM .
.11-24
Removal.
.11-24
Inspection .
.11-24
Installation
.11-24
EXTREME WEATHER MAINTENANCE
.11-24
Cold Weather
.11-24
Ground Service Receptacle
.11-25
Hot Weather .
.11-25
Dusty Conditions .
.11-25
Seacoast and Humid Areas.
.11-25
Hand Cranking.
.11-25
11-3. REMOVAL AND INSTALLATION. Removal
and installation of the engine cowling is accomplished
by removing the attaching screws at the nose cap
dividing surfaces and releaSing the quick-release
fasteners at side parting surfaces and at shock mounts
of firewall. Disconnect electrical wiring to landing
light in nose cap cowling. Disconnect any air duct
and control linkage which interferes with removal
of the cowling. When installing the cowling, be sure
to connect any items disconnected during removal.
Make sure that baffle seals are turned in the correct
direction to confine and direct airflow around the
engine. The vertically installed seals fold forward
and the side seals fold upward.
Change 3 11-1
