Cessna 150M - Ignition Schematic

To Next Page

To Previous Page

UPPER

---,.

SPARK

PLUGS

11-20

LOWER

SPARK

PLUGS

LEFT

MAGNETO

RIGHT

MAGNETO

FIRING

ORDER

1-3-2-4

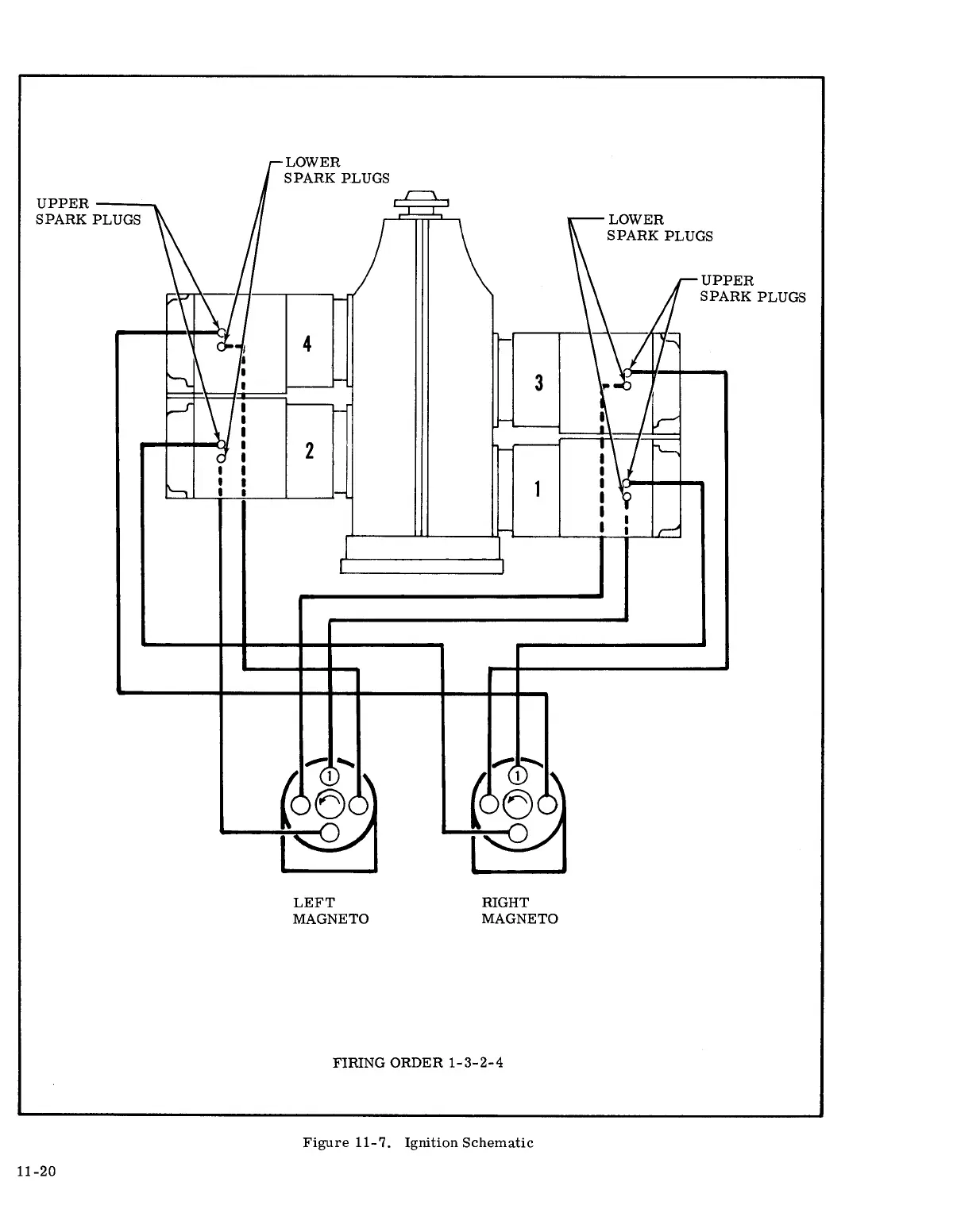

Figure

11-7.

Ignition

Schematic

LOWER

SPARK

PLUGS

UPPER

SPARK

PLUGS
