Cessna 150M - Wing Installation

• MINIMUM TORQUE
300 LB INCHES
6
Jf:~,
21 /
Detail B
22
1. Fairing
2. Lower Rear Fairing
3. Inspection Plate
4. Fuel Tank Cover
5. Fuel Gage Access Cover
6. Wing-To-Fuselage Fairing
7. Bolt
4-2 Change 3
Detail A
I
~:
THRU 1970 MODELS
NOTE
Five washers (21) are installed under
the nut on the front spar-to-fuselage
fitting.
Beginning with the 1971 Models, the
landing and taxi lights are located in
the nose cowl.
14
8. Eccentric Bushings
9. Washer
16. Wing Assembly
10. Nut
11. Wing Flap
12. Aileron
17. Cover Plate
18. Stall Warning Opening
19. Courtesy Light
20. Fuel Tank
13. Wing Tip
21. Washers
14. Position Light
22. Nut
15. Landing and Taxi Lights

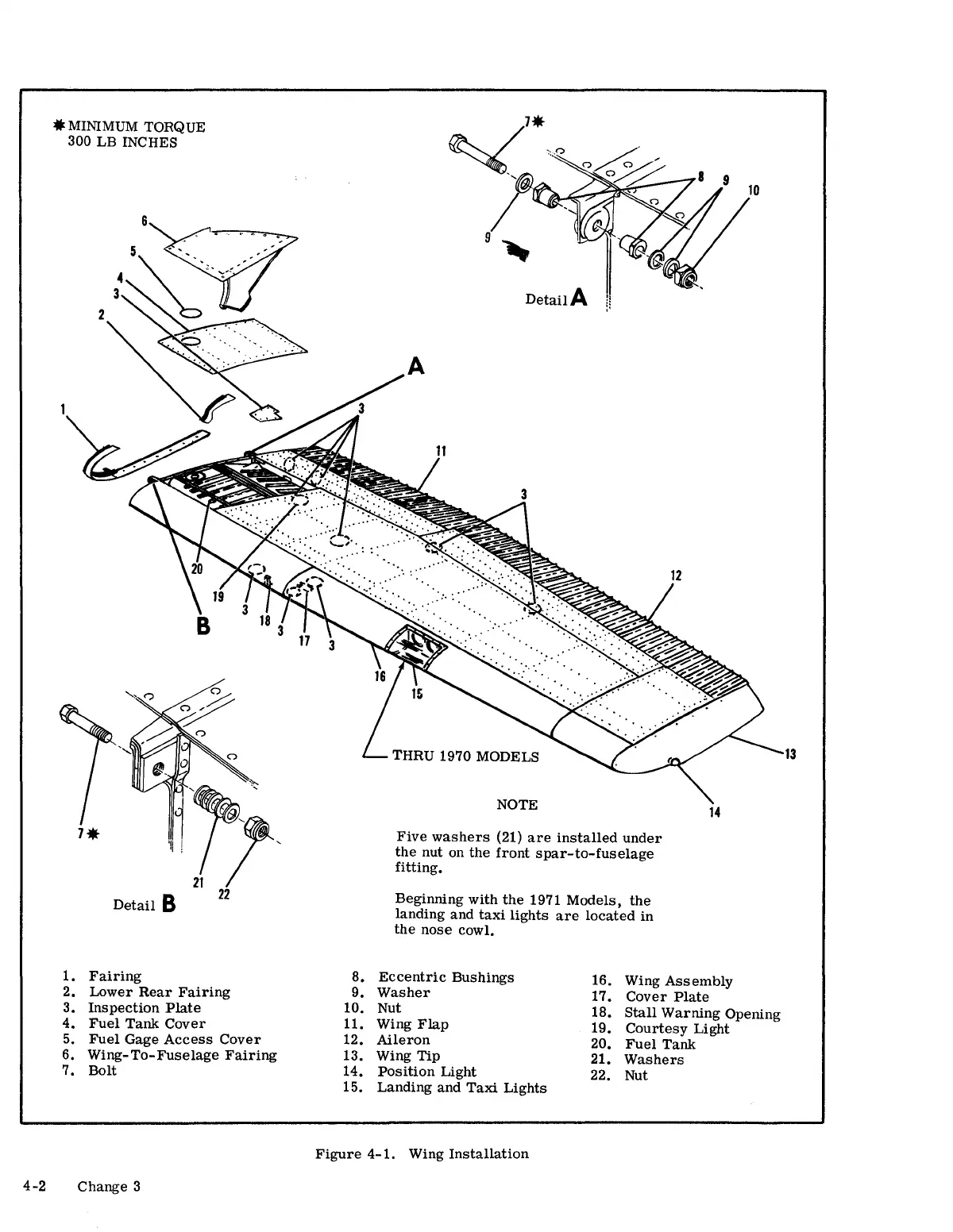

Figure 4-1. Wing Installation
13
