Cessna 150M - Voltage Regulator Installation

1.
2.
3.
4.
16-12
2
2--~~
Voltage Regulator
Screw
Filter -Radio Noise
Housing
Change 3
3
Detail A
5. Wire Shields to Ground
6.
Wire to Alternator "F"
7. Wire to Alternator "A+"
8. Wire to Filter
9. Wire to Master Switch
A
10.
11.
12.
13.
14.

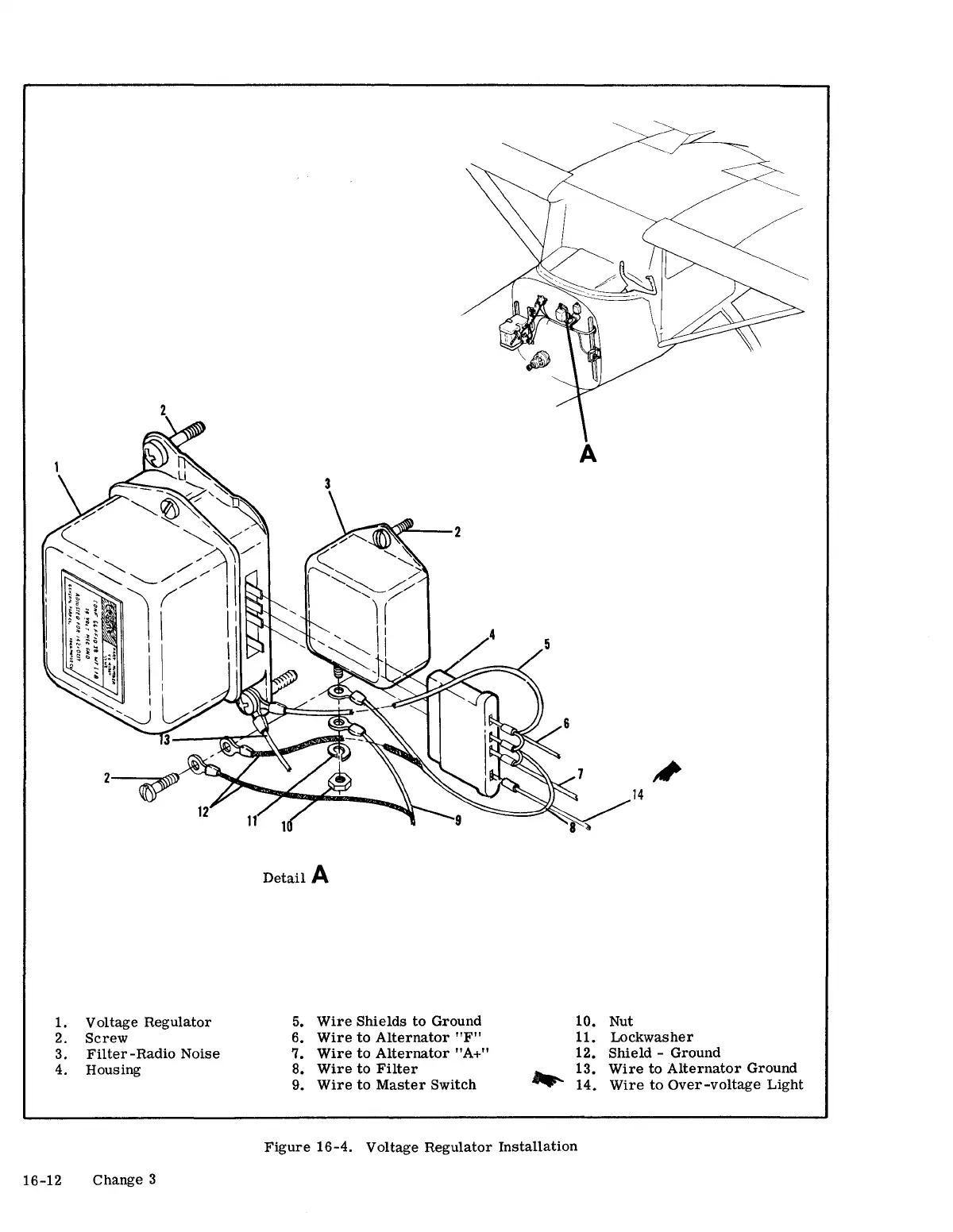

Figure 16-4. Voltage Regulator Installation
14
Nut
Lockwasher
Shield - Ground
Wire to Alternator Ground
Wire to Over-voltage Light
