Cessna 150M - Forward Seats

I
2
A
ADJUSTABLE BACK/
STATIONARY BOTTOM
(STANDARD ON 150 AND
F150 THRU 15073658 AND
F15000342
Detail A
6
.l~ __ - B
~ -"
* AIRCRAFT SERIALS 15072004 THRU 15072628, A1500177
THRU A1500276, F15000659 THRU F15000738 AND FA150-
00081 THRU FA1500121. Also when modified per Single-
engine Service Letter SE70-3O, Dated November 13, 1970.
* AIRCRAFT SERIALS 15071510 THRU 15072628,
A1500102 THRU A1500276, F15000680 THRU
F15000738
AND FA1500001 THRU FA1500121
1.
Seat Bottom
2. Seat Back
3. Frame
4. Latch Arm
5. Release Handle
6.
Release Pin
7. Bracket
8. Brace
9. Roller
10. Bushing
11. Recline Knob
12.
Fore/Aft Adjustment Handle
13.
Spring
14. Adjustment Pin
15. Plate
16. Doubler
17. Vertical Adjustment
Handle
18. Return Spring
10
,
t',
RECLINING BACK/
FORE -AND-AFT
ADJUSTABLE
BOTTOM (OPTIONAL
ON 150 AND F150 THRU
15072628 AND F15000739)
(STANDARD
ON A150 AND
FA150
THRU A1500276
AND FA1500121

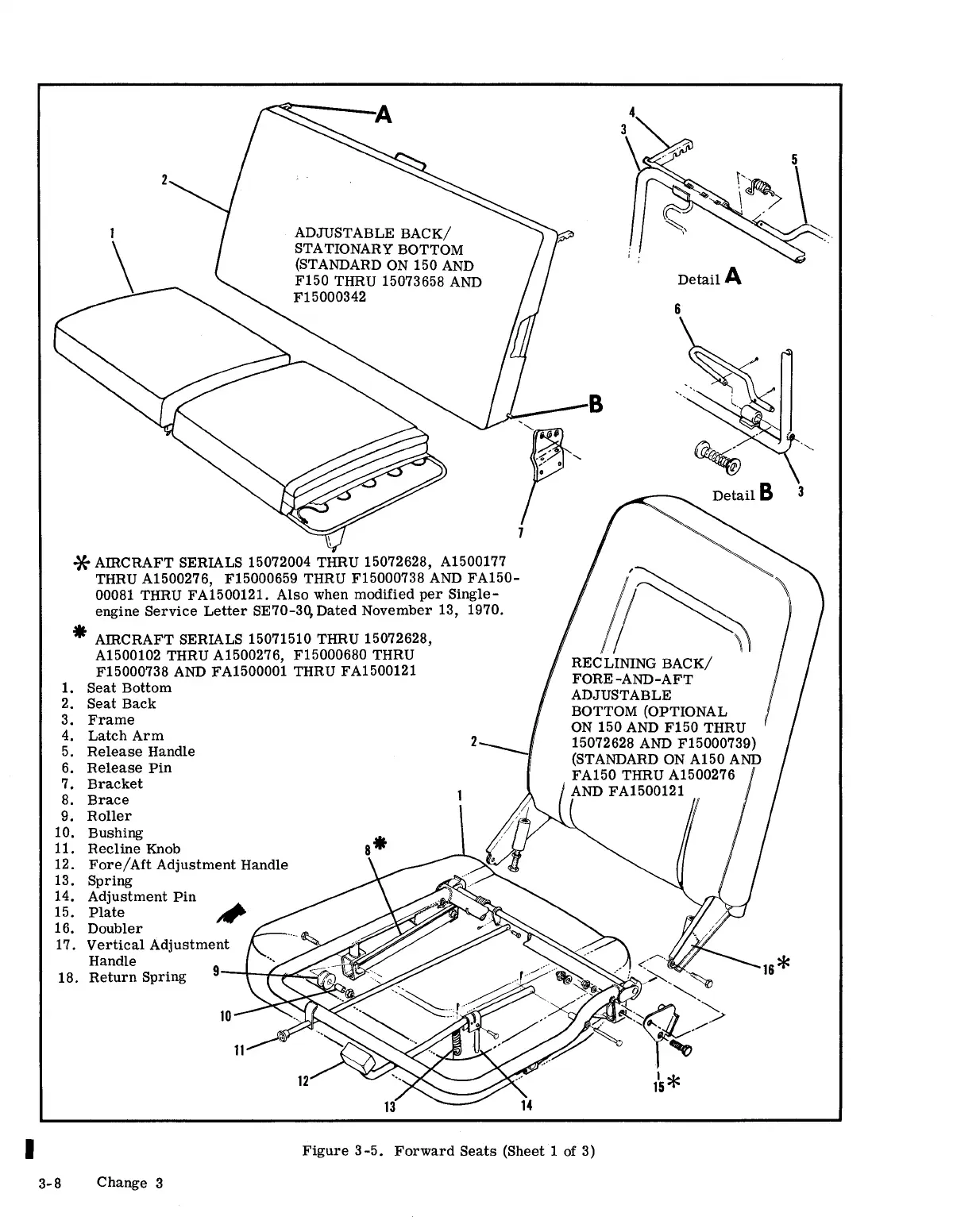

Figure 3 -5. Forward Seats (Sheet 1 of 3)
