Cessna 150M - Vertical Fin

NOTE
Fairing (1) and Dorsal (2)
are riveted to fuselage.
3
2
7
A
5
BEGINNING WITH 1971
MODELS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Fairing
Dorsal
R. H. Tail Fairing
L. H. Tail Fairing
Fin
Flashing Beacon
Tip
Upper Rudder Hinge
Center Rudder Hinge
Lower Rudder Hinge
Horizontal Stabilizer
Bolt
Nutplate
Nut
Fuselage ~
Washer "..
Detail E
THRU AIRCRAFT SERIALS
15075504, F15001133,
A1500478 AND FA1500261.
,
,
,
I
,
,
:
!
15
'(ji
. '--14

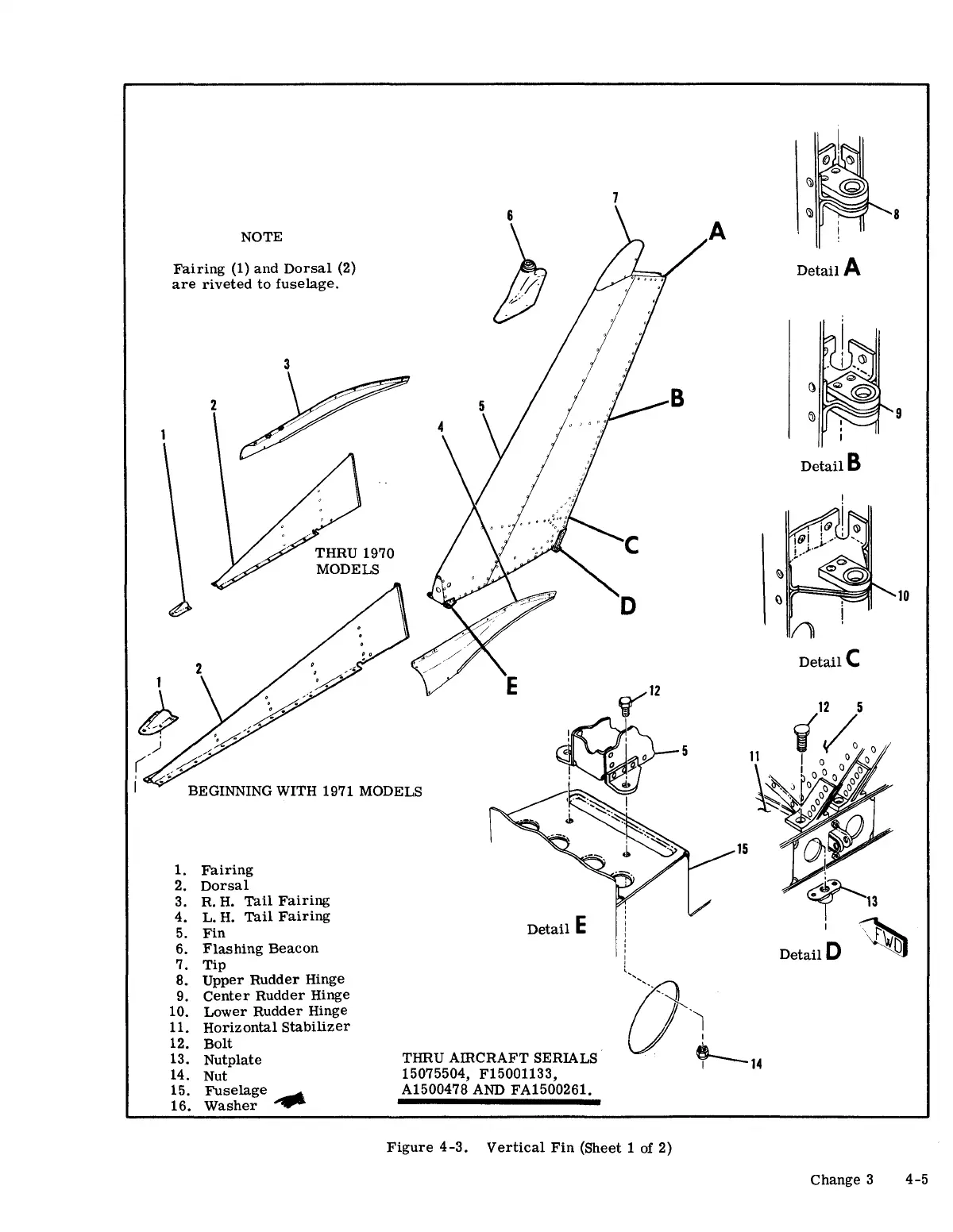

Figure 4-3. Vertical Fin (Sheet 1 of 2)
Detail A
Detail B
n
Detail C
8
9
10
Change 3 4-5
