Cessna 150M - Battery, Battery Box and Battery Contactor Installations

14
Detail A
A
NOTE
.... BEGINNING WITH AIRCRAFT
SERIALS 15073741, A15000345,
F15000904
AND FA15000192
3 a vented battery contactor is
installed.
4
1. Battery Box Cover
2. Battery
3. Battery Box
4. Positive Battery Cable
5. Wire to Clock Fuse
6. Wire to Master Switch
7. Diode Assembly
8. Washer
6
9. Nut
10. Battery Contactor
11. Sta-Strap
12. Cover
13. Starter Cable
14. Battery Ground Strap

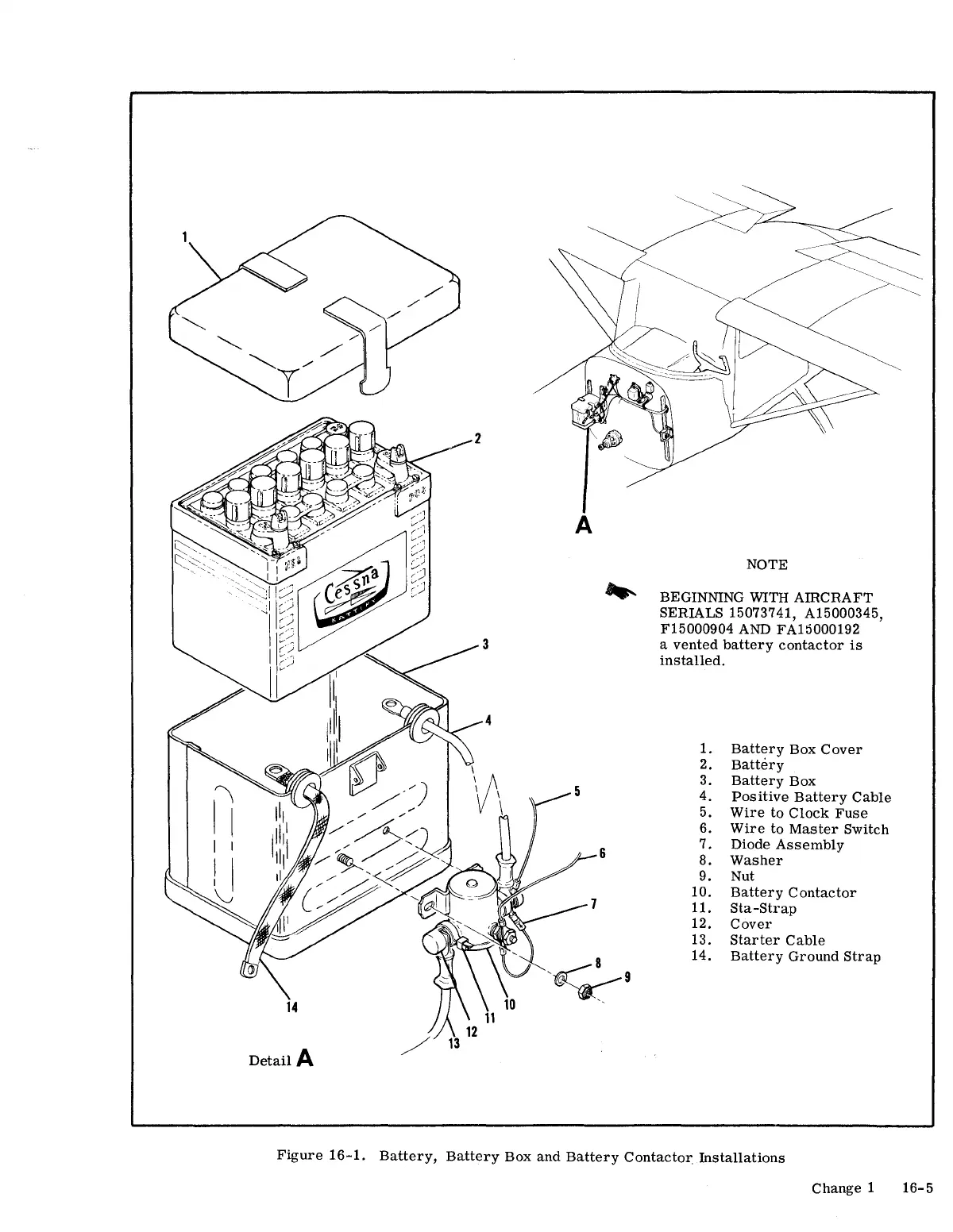

Figure 16-1. Battery, Battery Box and Battery Contactor Installations
Change 1 16- 5
