Cessna 150M - Ground Service Receptacle and Battery Contactor Closing Circuit Installations

5
Detail A
• THRU 1975 MODELS
* BEGINNING WITH
1976
MODELS
1. Nut
2. Washer
3. Ground Strap
4. Bracket
5. Firewall
6. Doubler
7. Cover Plate
8. Receptacle
9. Screw
10. Power Cable
11. Fuse-Clock
12. Fuse-Battery Contactor
Closing Circuit
13. Lockwasher
14. Insulating Washer
11 12
4
18
19
Detail B
15. Spacer
16. Wire to Battery Contactor
(Bat. Side)
17. Solder Terminal
18. Diode
19.
Wire to Battery Contactor
20. Resistor
21. Wire to Clock

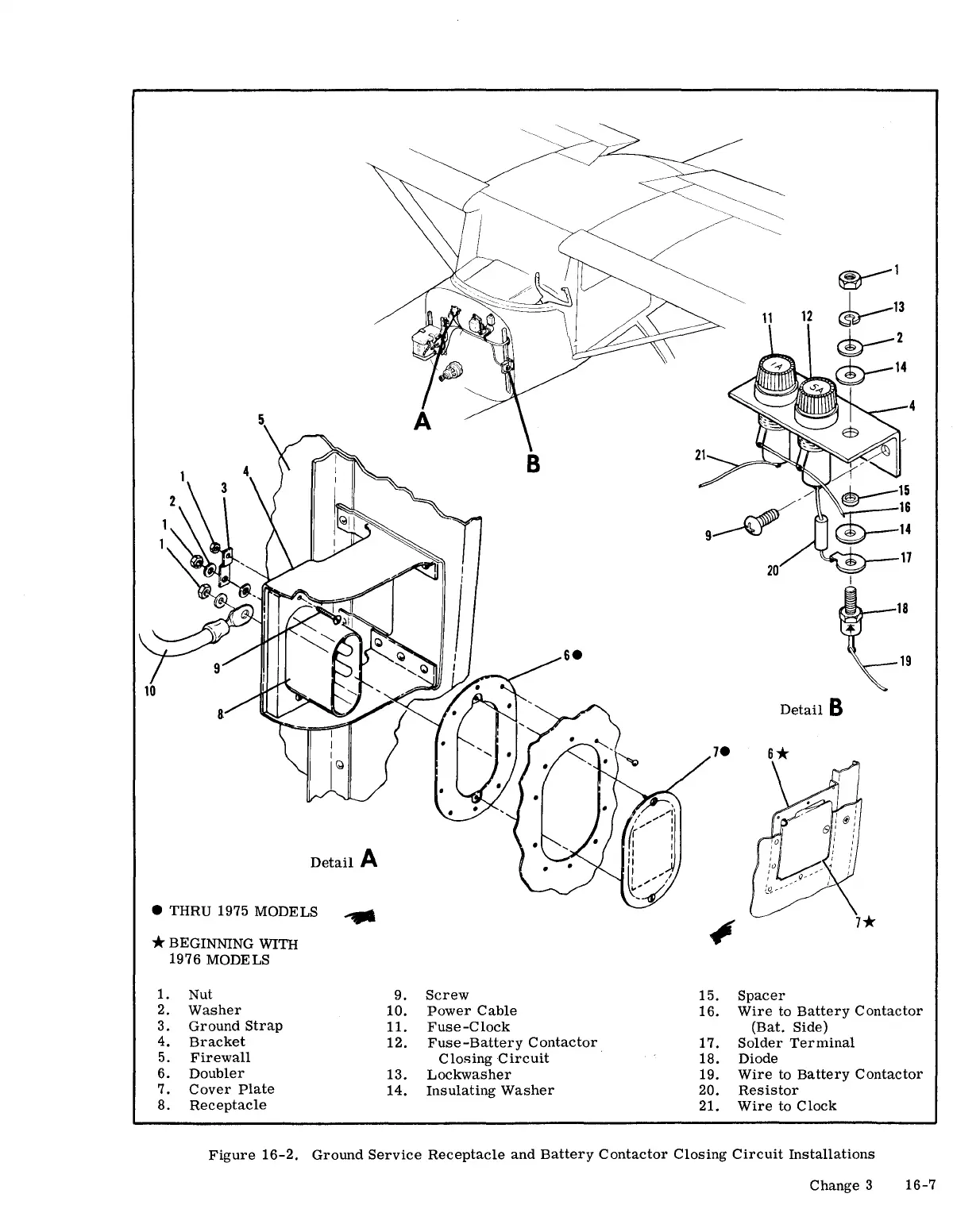

Figure 16-2. Ground Service Receptacle and Battery Contactor Closing Circuit Installations
Change 3 16-7
