Cessna 150M - Rudder Installation; Rudder Pedal Assembly

Cessna 150M
358 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
5
Detail
B
Beginning
with
1970
Models.
NOTE
Doublers
are
added
to
the
rudder
hinge
halves
beginning with
air-
craft
serials
15072577,
F150-
00139, A15000268
and
FA15000122
1.
Lower
Hinge Half
2.
Bushing
3.
Upper
Hinge Half
4.
Bolt
5.
Balance
Weight
6.
Navigation
Light
7.
Trim
Tab
8.
Bellcrank
9.
stop
10.
Quick-Disconnect
11.
Rudder
Tip
....
Detail
A
BEGINNING
WITH 1975
Detail
0
6
Detail
C
D_ooliF.<
10
---,:!9"""gf.
9
THRU 1974
8

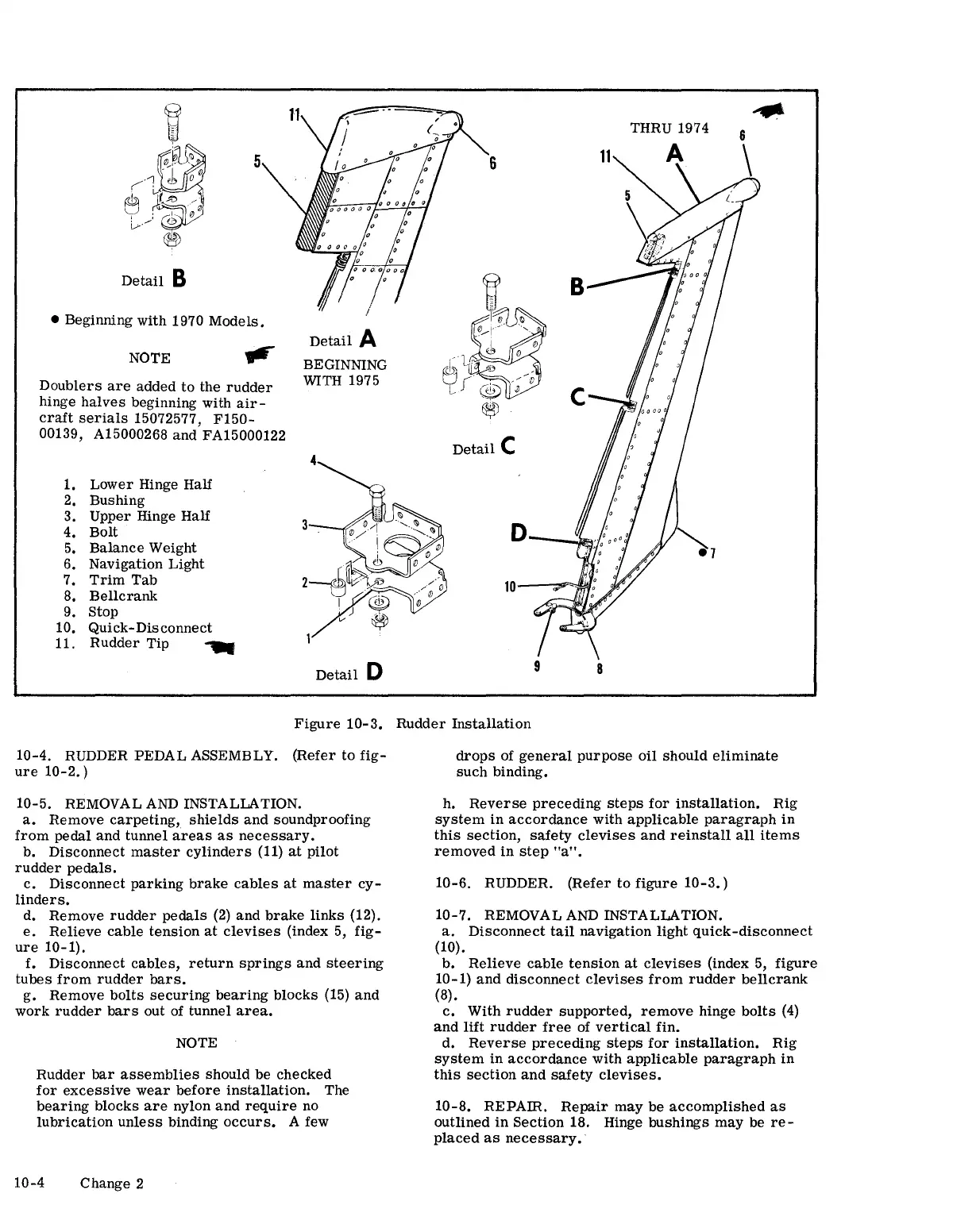

Figure
10-3.
Rudder
Installation
10-4.
RUDDER
PEDAL
ASSEMBLY.
(Refer
to
fig-
ure
10-2.)
10-5.
REMOVAL AND
INSTALlATION.
a.
Remove
carpeting,
shields
and
soundproofing
from
pedal
and
tunnel
areas
as
necessary.
b.
Disconnect
master
cylinders
(11)
at
pilot
rudder
pedals.
c.
Disconnect
parking
brake
cables
at
master
cy-
linders.
d.
Remove
rudder
pedals
(2)
and
brake
links
(12).
e.
Relieve
cable
tension
at
clevises
(index 5,
fig-
ure
10-1).
f.
Disconnect
cables,
return
springs
and
steering
tubes
from
rudder
bars.
g.
Remove
bolts
securing
bearing
blocks
(15)
and
work
rudder
bars
out of
tunnel
area.
NOTE
Rudder
bar
assemblies
should
be
checked
for
excessive
wear
before
installation.
The
bearing
blocks
are
nylon
and
require
no
lubrication
unless
binding
occurs.
A few
10-4
Change
2
drops
of
general
purpose
oil
should
eliminate
such
binding.
h.
Reverse
preceding
steps
for
installation.
Rig
system
in
accordance
with
applicable
paragraph
in
this
section,
safety
clevises
and
reinstall
all
items
removed
in
step
"a".
10-6.
RUDDER.
(Refer
to
figure
10-3.)
10-7.
REMOVAL AND
INSTALlATION.
a.
Disconnect
tail
navigation
light
qUick-disconnect
(10).
b.
Relieve
cable
tension
at
clevises
(index 5,
figure
10-1)
and
disconnect
clevises
from
rudder
bellcrank
(8).
c.
With
rudder
supported,
remove
hinge
bolts
(4)
and
lift
rudder
free
of
vertical
fin.
d.
Reverse
preceding
steps
for
installation.
Rig
system
in
accordance
with
applicable
paragraph
in
this
section
and
safety
clevises.
10-8.
REPAffi.
Repair
may
be
accomplished
as
outlined
in
Section
18. Hinge
bushings
may
be
re-
placed
as
necessary.
