Cessna 150M - Navigation and Anti-Collision Strobe Lights Installation

THRU 1970 ONLY
13
1971 & ON
Detail B
* THRU 1972 MODELS
.BEGINNING WITH 1973 MODELS
15
12
Detail A
B
1. Electricalleads
7. Wing Tip
13. Bulb
2. Cap 8. Wing Navigation Light
14. Lens
3. Washer
9. Flash Tube Assembly
15. Mount
4. Insulated Washer
10. Seal
16. Tail Navigation Light
5. Spring
11. Screw
17. Gasket
6. Insulator 12. Lens Retainer

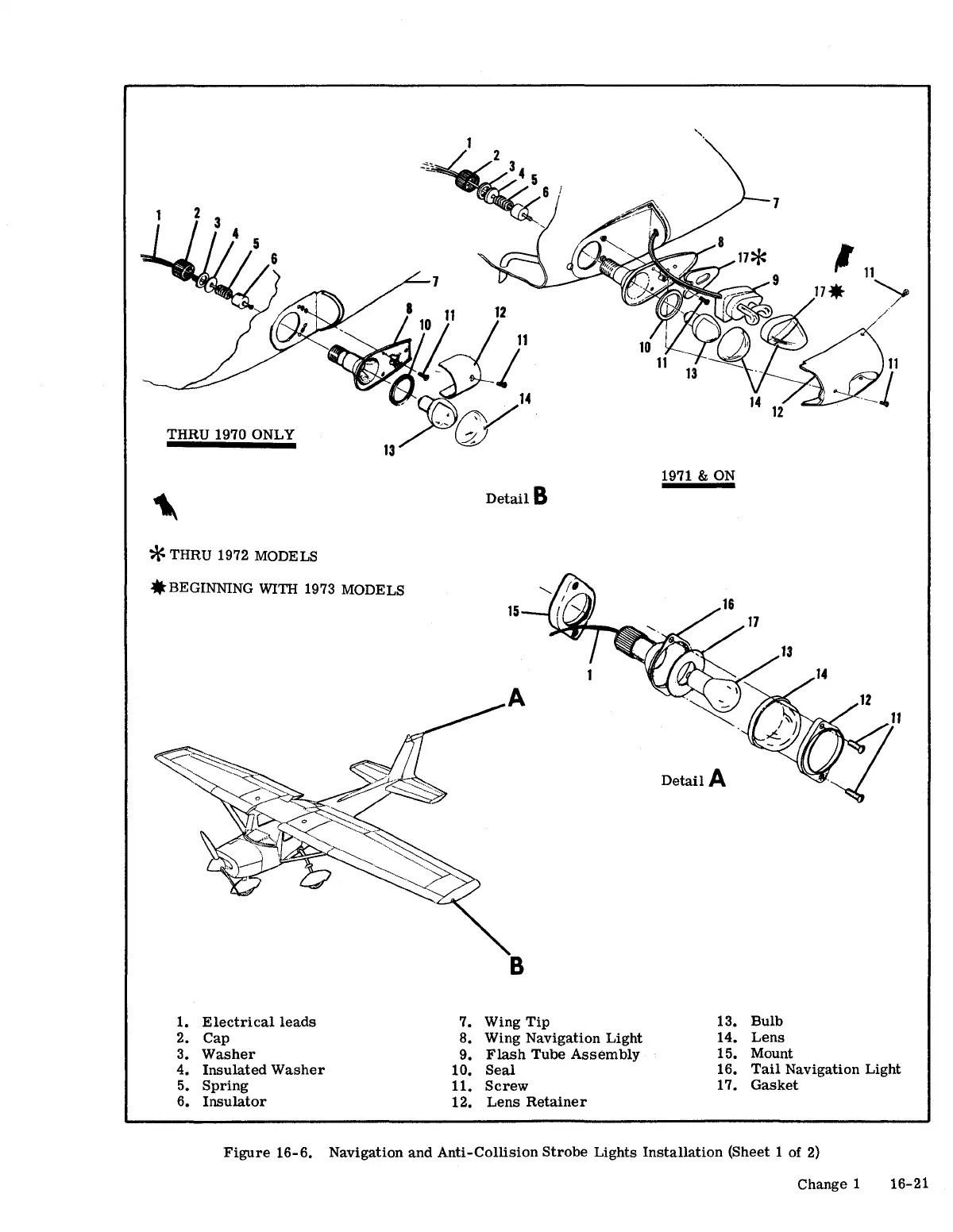

Figure 16-6. Navigation and Anti-Collision Strobe Lights Installation (Sheet 1 of 2)
Change 1 16-21
