Cessna 150M - Wing Spar Repair

FILLER - 2024-T4 ALCLAD
CLEAN OUT DAMAGED AREA
ANGLE -
2024-T4 ALCLAD
I I
Kt<%n\'~@1
ORIGINAL PARTS
REPAIR PARTS
A
~ ~~-- FILLER - 2024-T4 ALCLAD
~~. ~~~:s::::::
3/8" RADIUS '
DOUBLER -
2024-T3 ALCLAD
3/8" EDGE MARGIN
(TYPICAL)
MS20470AD4 RIVETS ~--.II1h
-
REPAIR PARTS IN CROSS SECTION
A-A

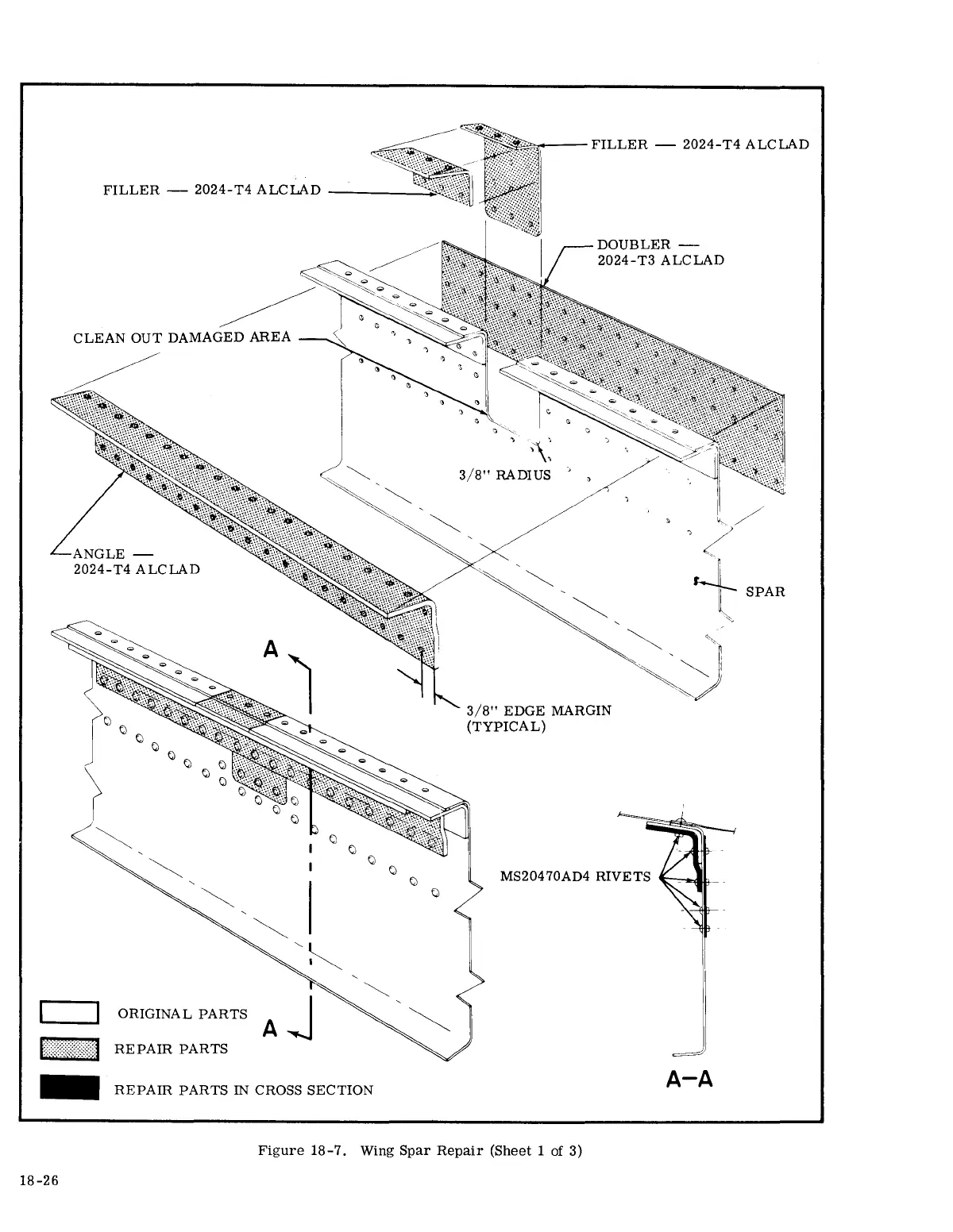

Figure 18-7. Wing Spar Repair (Sheet 1 of 3)
18-26
