Cessna 150M - Flap Motor and Transmission Installation

9
1.
Bolt
2. Switch Support
3. Up-Limit Switch
4. Bolt
5. Actuating Tube
6. Setscrew
7. Switch Actuating Clamp
8. Transmission Assembly
9. Electrical Wiring
10. Motor Assembly
11. Hinge Assembly
12. Bolt
13. Cable Lock
14. Drive Pulley
15. Push- Pull Rod
16.
Attach Bracket
17. Bolt
18. Direct Cable
19. Retract Cable
20. Bolt
21. Bolt
22. Snubber
23. Bracket
24. Spacer
25. Shim
26. Screw
27. Set Screw
28. Switch Adjustment Block
29. Up-Limit Switch
30. Switch
Actuating Collar
31. Support
32. Down-Limit Switch
NOTE
Use
Grade "C" Loctite sealant on threads
of setscrew (6) after final adjustment.
THRU AIRCRAFT SERIALS
15072629, F15000738,
A150-
00277 AND FA15000132 WHEN
NOT MODIFIED IN ACCOR-
DANCE WITH SK150-37
14
()
()
0
()
()
()
VIEW A-A
16
~
/.," /
/ .
---
./
2

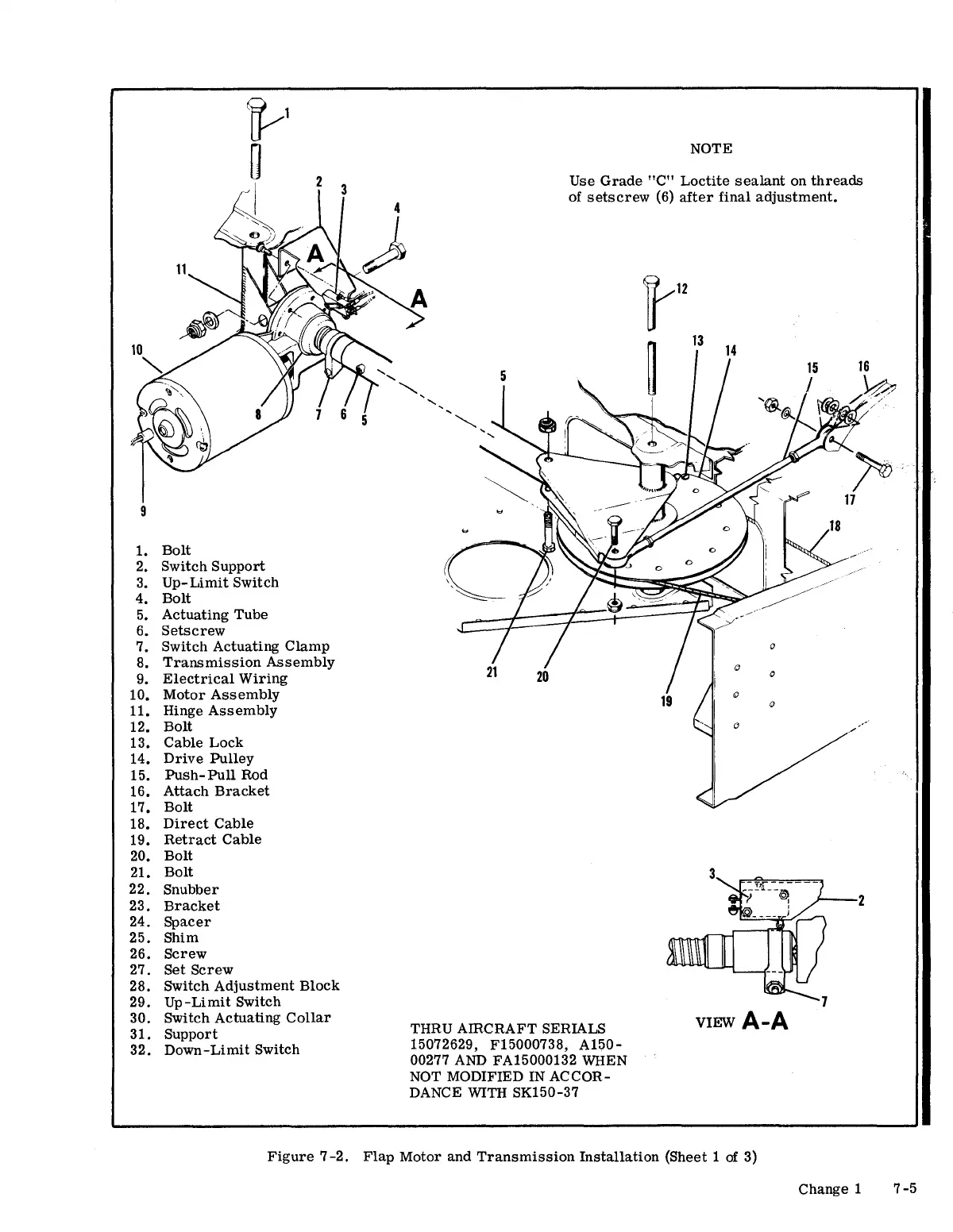

Figure 7 -2. Flap Motor and Transmission Installation (Sheet 1 of 3)
