Cessna 150M - Wing and Fuselage Support Stands; Repair of Glass-Fiber Constructed Components

12 INCH WIDE
HEAVY CANVAS
,r
WING
\
1 X 12 X 30-3/4
\
\
1 X 12 X 11
1 X 12 X 8
1 X 12 X 48
~~~~~-2 X 4 X 20
5 INCH COTTON WEBBING
1 X 4---ta<o
NOTE
ALL DIMENSIONS ARE IN INCHES
30-3/4
\
\
\
l_
X 4
~ .. ---3/8 INCH DIAMETER BOLTS
~~r--2X4
~~~--2X6
~i!;':.:~i:----1 X 4

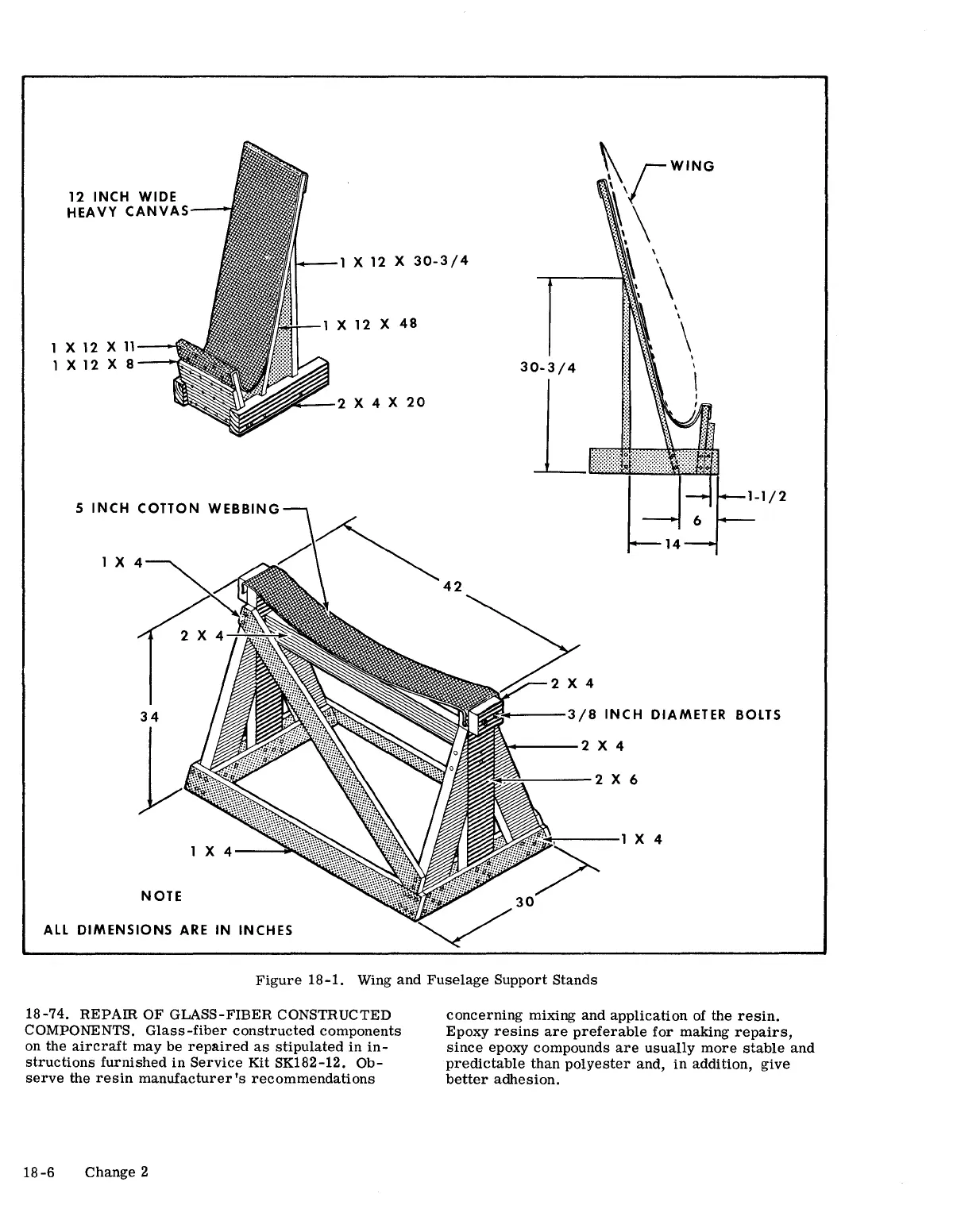

Figure 18-1. Wing and Fuselage Support Stands
18-74. REPAffi OF GLASS-FIBER CONSTRUCTED
COMPONENTS. Glass-fiber constructed components
on the aircraft may be repaired as stipulated in in-
structions furnished in Service Kit SK182-12. Ob-
serve the resin manufacturer's recommendations
18 -6 Change 2
concerning mixing and application of the resin.
Epoxy resins are preferable for making repairs,
since epoxy compounds are usually more stable and
predictable than polyester and, in addition, give
better adhesion.
