Cessna 150M - Jacking and Leveling

REFER TO SHEET 2 FOR ITEM NUMBERS
NOTE
Corresponding points on both upper door sills may be used to level the aircraft laterally.
Prior to 1971 Models, reference points for leveling the aircraft longitudinally are the top
of
the tailcone between rear window and vertical fin.
Beginning with 1971 Models, reference points for longitudinal leveling of aircraft are two
screws on left side of tailcone at zero waterline. These are indicated in illustration by A
(Also refer to paragraph 2-5)
REFER TO SHEET 2 FOR ITEM NUMBERS
o 0

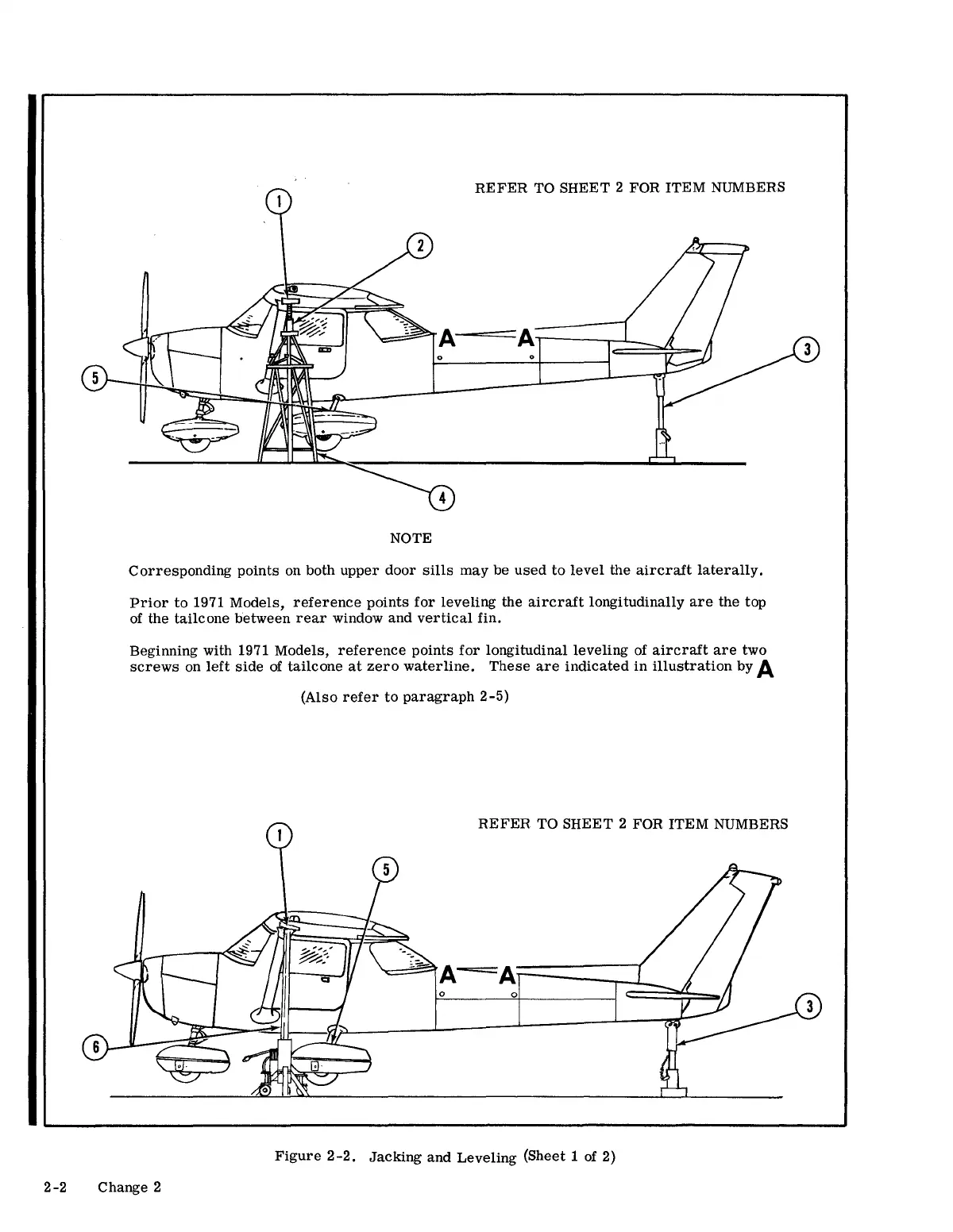

Figure 2-2. Jacking and Leveling (Sheet 1 of 2)
2-2 Change 2
