Cessna 150M - Aluminum Flange)

•
NOTE
Tighten thru- bolt nuts or
caps crews evenly to the
torque value specified in
figure 5-2A.
22
24
Beginning with 15074510 and
A1500402, McCauley steel-
flange main wheels replace
McCauley aluminum-flange
main wheels.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Snap
Ring
Grease Seal Retainer (Outboard)
Grease Seal Felt (Outboard)
Grease Seal Retainer (Outboard)
Bearing Cone
Wheel Flange
Spacer
Tire
Tube
Wheel Bub
Bearing Cup (Race)
Grease Seal Retainer (Inboard)
Grease Seal Felt (Inboard)
Brake Disc
Torque Plate
Pressure Plate
17.
18.
19.
20.
21.
22.
23.
24.
25.
Anchor Bolt
Brake Cylinder
Bleeder Valve
O-Ring (Piston)
Brake Piston
Brake Lining
Thru-Bolt
Back Plate
Screw
* 15072004 THRU 15074851
A1500227 THRU A1500431
F15000659 & ON
FA1500082 & ON
* BEGINNING WITH 15074852
BEGINNING WITH
A1500432
18
McCAULEY WHEEL AND BRAKE

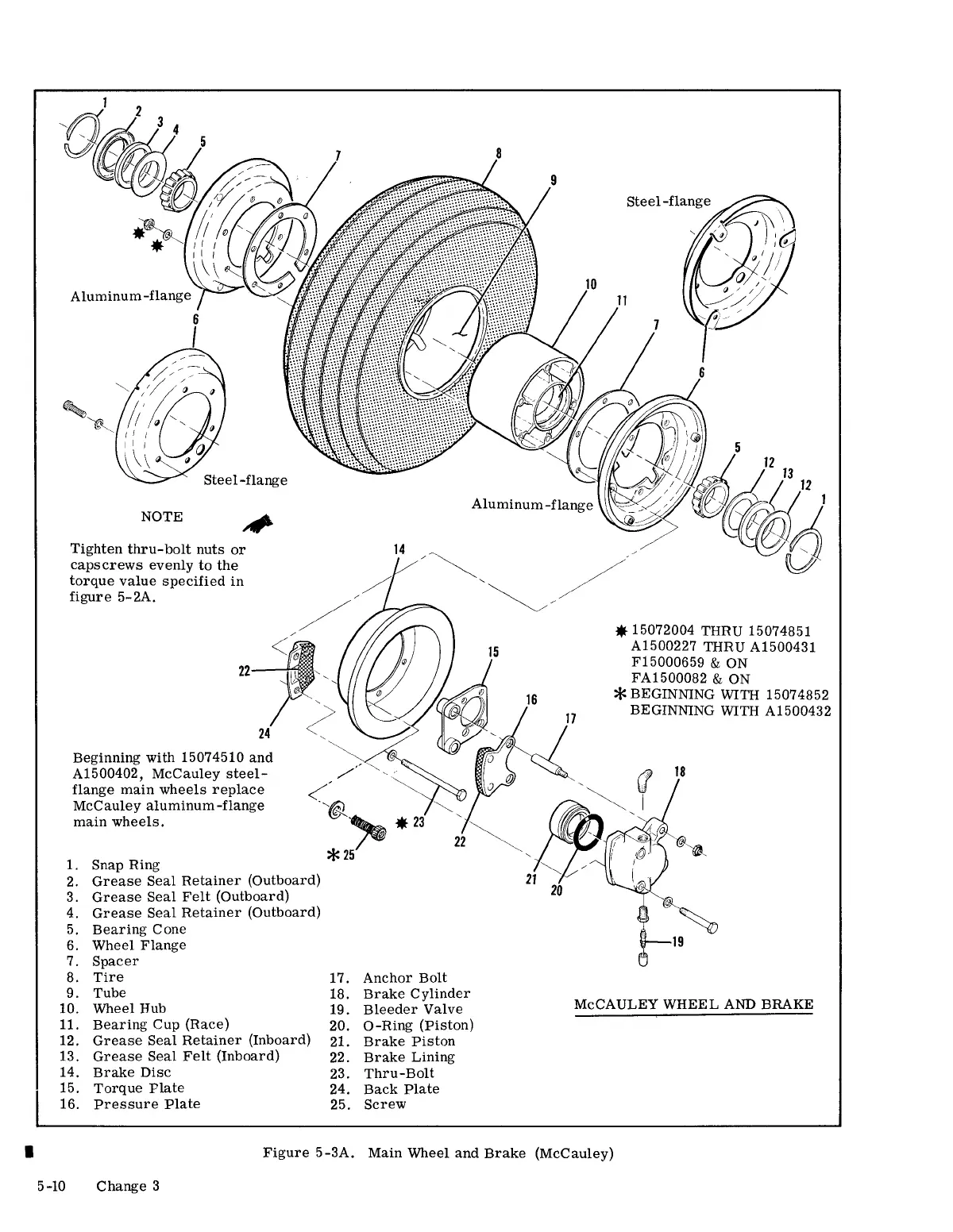

Figure 5-3A. Main Wheel and Brake (McCauley)
5-10 Change 3
