Cessna 150M - Rear View Mirror Installation; Upholstery Side Panels; Carpeting; Baggage Compartment Upholstery

1. Cover
2. Mirror
3. Grommet
4. Nut
5.
Washer
6. Deck Skin
7.
Glare Shield
2
3
THRU 15073658, A1500342,
F15000864 AND FA1500166
2
6
BEGINNING WITH 15073659,
A1500343,
F15000864 AND
FA1500167

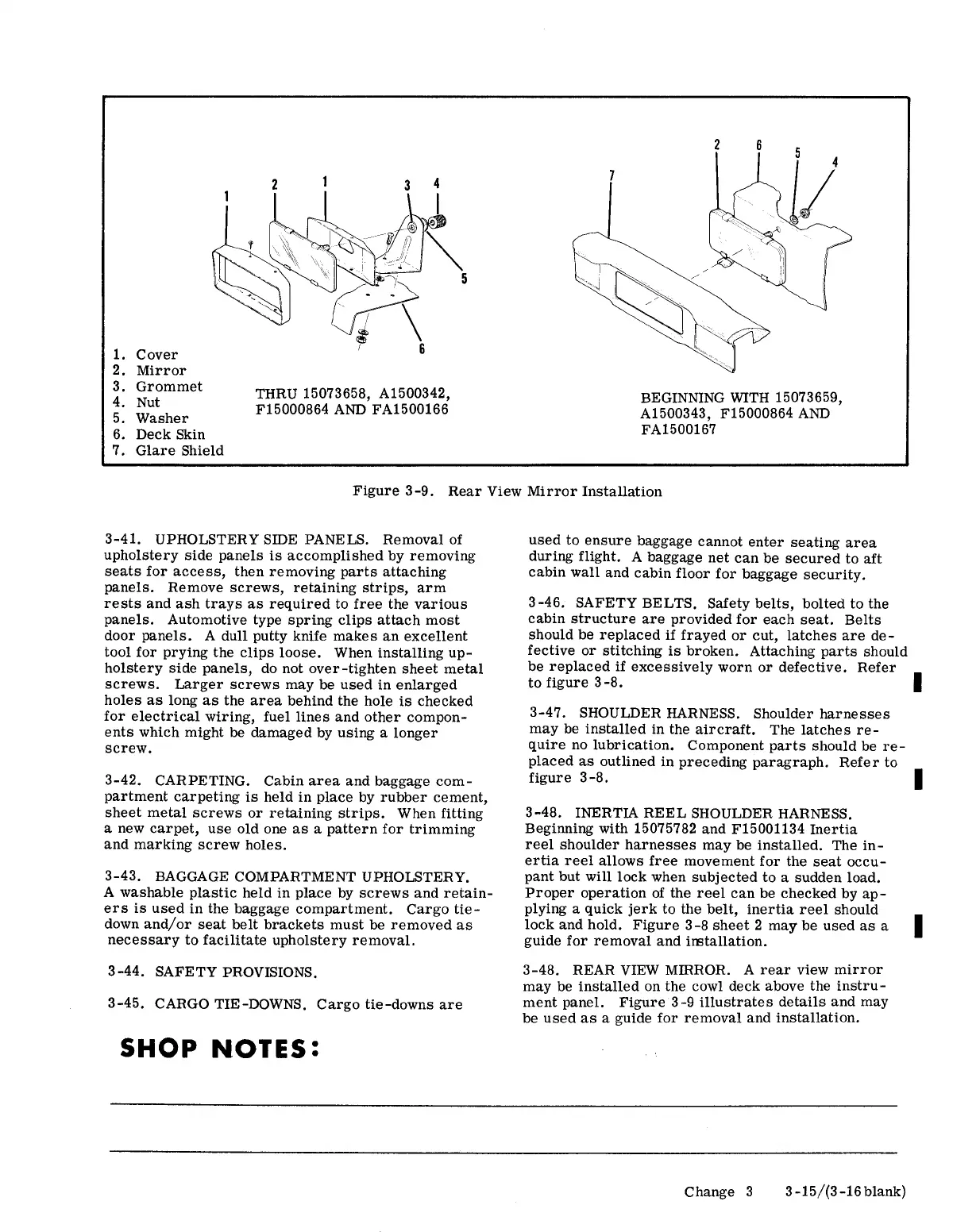

Figure 3-9. Rear View Mirror Installation
3-41. UPHOLSTERY SIDE PANELS. Removal of
upholstery side panels is accomplished by removing
seats for access, then removing parts attaching
panels. Remove screws, retaining strips, arm
rests and ash trays as required to free the various
panels. Automotive type spring clips attach most
door panels. A dull putty knife makes an excellent
tool for prying the clips loose. When installing up-
holstery side panels, do not over-tighten sheet metal
screws. Larger screws may be used in enlarged
holes as long as the area behind the hole is checked
for electrical wiring, fuel lines and other compon-
ents which might be damaged by using a longer
screw.
3-42. CARPETING. Cabin area and baggage com-
partment carpeting is held in place by rubber cement,
sheet metal screws or retaining strips. When fitting
a new carpet, use old one as a pattern for trimming
and marking screw holes.
3-43. BAGGAGE COMPARTMENT UPHOLSTERY.
A washable plastic held in place by screws and retain-
ers is used in the baggage compartment. Cargo tie-
down and/or seat belt brackets must be removed as
necessary to facilitate upholstery removal.
3 -44. SAFETY PROVISIONS.
3-45. CARGO TIE-DOWNS. Cargo tie-downs are
SHOP NOTES:
used to ensure baggage cannot enter seating area
during flight. A baggage net can be secured to aft
cabin wall and cabin floor for baggage security.
3 -46. SAFETY BELTS. Safety belts, bolted to the
cabin structure are provided for each seat. Belts
should be replaced if frayed or cut, latches are de-
fective or stitching is broken. Attaching parts should
be replaced if excessively worn or defective. Refer
to figure 3 -8. I
3-47. SHOULDER HARNESS. Shoulder harnesses
may be installed in the aircraft. The latches re-
quire no lubrication. Component parts should be re-
placed as outlined in preceding paragraph. Refer to
figure 3-8. I
3-48. INERTIA REEL SHOULDER HARNESS.
Beginning with 15075782 and F15001134 Inertia
reel shoulder harnesses may be installed. The in-
ertia reel allows free movement for the seat occu-
pant but will lock when subjected to a sudden load.
Proper operation of the reel can be checked by ap-
plying a quick jerk to the belt, inertia reel should
lock and hold. Figure 3 -8 sheet 2 may be used as a I
guide for removal and imtallation.
3-48. REAR VIEW MIRROR. A rear view mirror
may be installed on the cowl deck above the instru-
ment panel. Figure 3 -9 illustrates details and may
be used as a guide for removal and installation.
Change 3 3 -15/(3 -16 blank)
