Cessna 150M - Installation

A
NOTE
Do
not overtighten screws (6) and
do not lubricate any parts.
Use spacers (10) as required for ad-
equate friction on ring assembly (8).
B
6
5
9
\
1. Static Line
2. Static Sump
3. Flange
"
TRUE AIRSPEED
INSTALLATION
7.
Retainer
8. True Airspeed Ring
9. Instrument Panel
4. Static Port Washer
10. Spacer
5. Cover
11. Airspeed Indicator
6. Mounting Screw
12. Altimeter

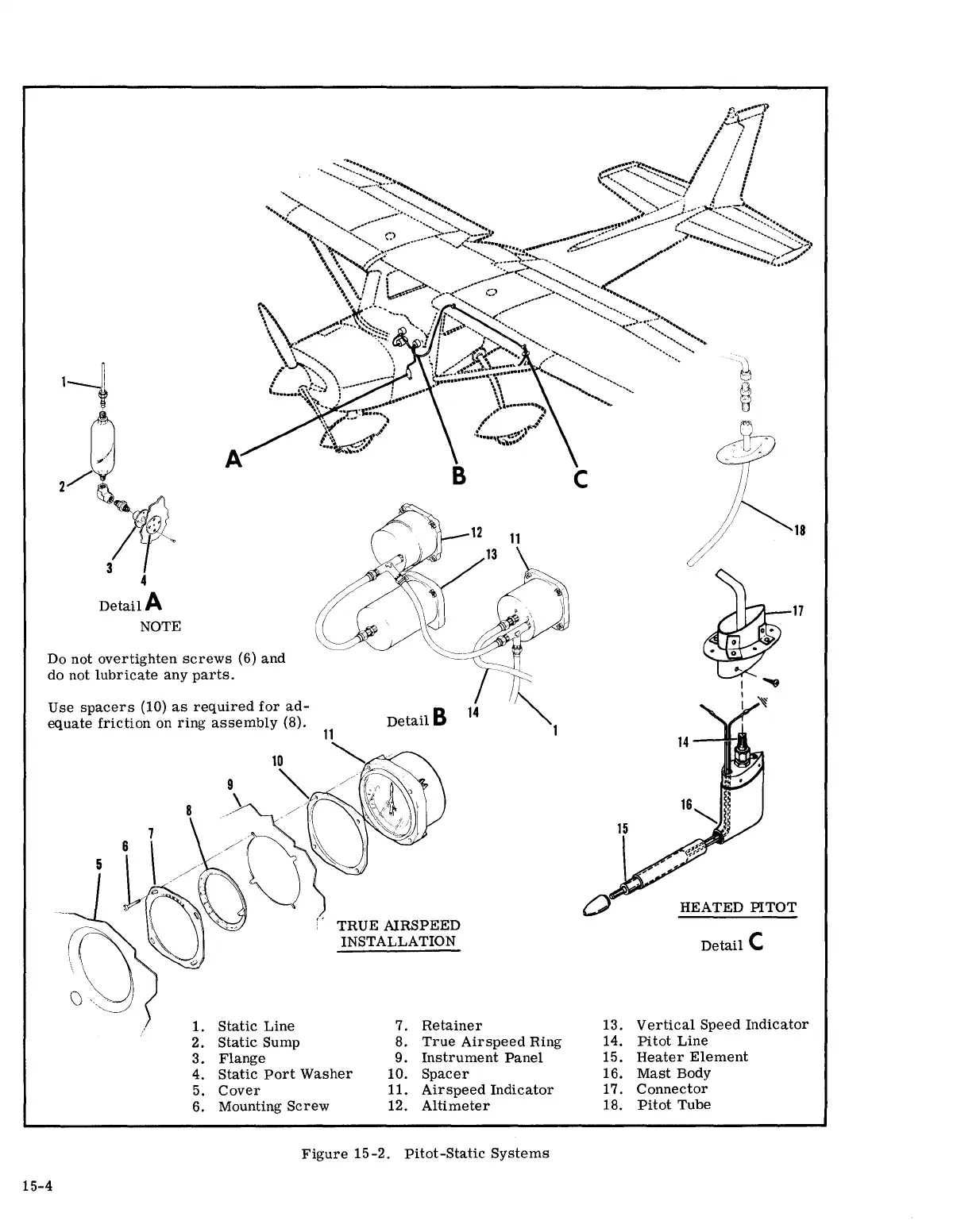

Figure 15-2. Pitot-Static Systems
15-4
c
/
c
/"'"
17
HEATED PITOT
Detail C
13. Vertical Speed Indicator
14. Pitot Line
15. Heater Element
16. Mast Body
17.
Connector
18. Pitot Tube
