Cessna 150M - Wing Leveler Control System

1. Right Aileron Vacuum Hose
2. Servo
3. Rudder Cable
4. Left Aileron Vacuum Hose
5. Rudder Vacuum Hose
6. Pulley
7. Aileron Cable
8. Connector
9. Spring
10. Clamp
NOTE
.Refer to figure 15-5
for vacuum relief
valve installation
for 1972 Models
AND ON.
Detail C
NOTE
Detail A is applicable
to both aileron and
rudder cables
19 \
.1Sp-rn
17~
USED WITH GYROS
11. Bellcrank
12. Suction Gage
13. Restrictor Valve
14. ON-OFF Control
15. Turn Coordinator
16. Roll Trim Knob
17.
Inverter
18. Vacuum Relief Valve
19. Filter
20. Gyro Hose
5
THRU AIRCRAFT
__ SERIAL 15075525
AND
A1500480
2
"'/
"/
3,1·//
L V DetanB
B
NOTE
Restrictor valve (13) Inverter (17) and
Turn -coordinator (15) must be replaced
as a matched set. For field adjustment
of restrictor valve (15, refer to the
Brittian - Leve 1- Matic Operati on and
Service Manual.
14
USED WITHOUT GYROS

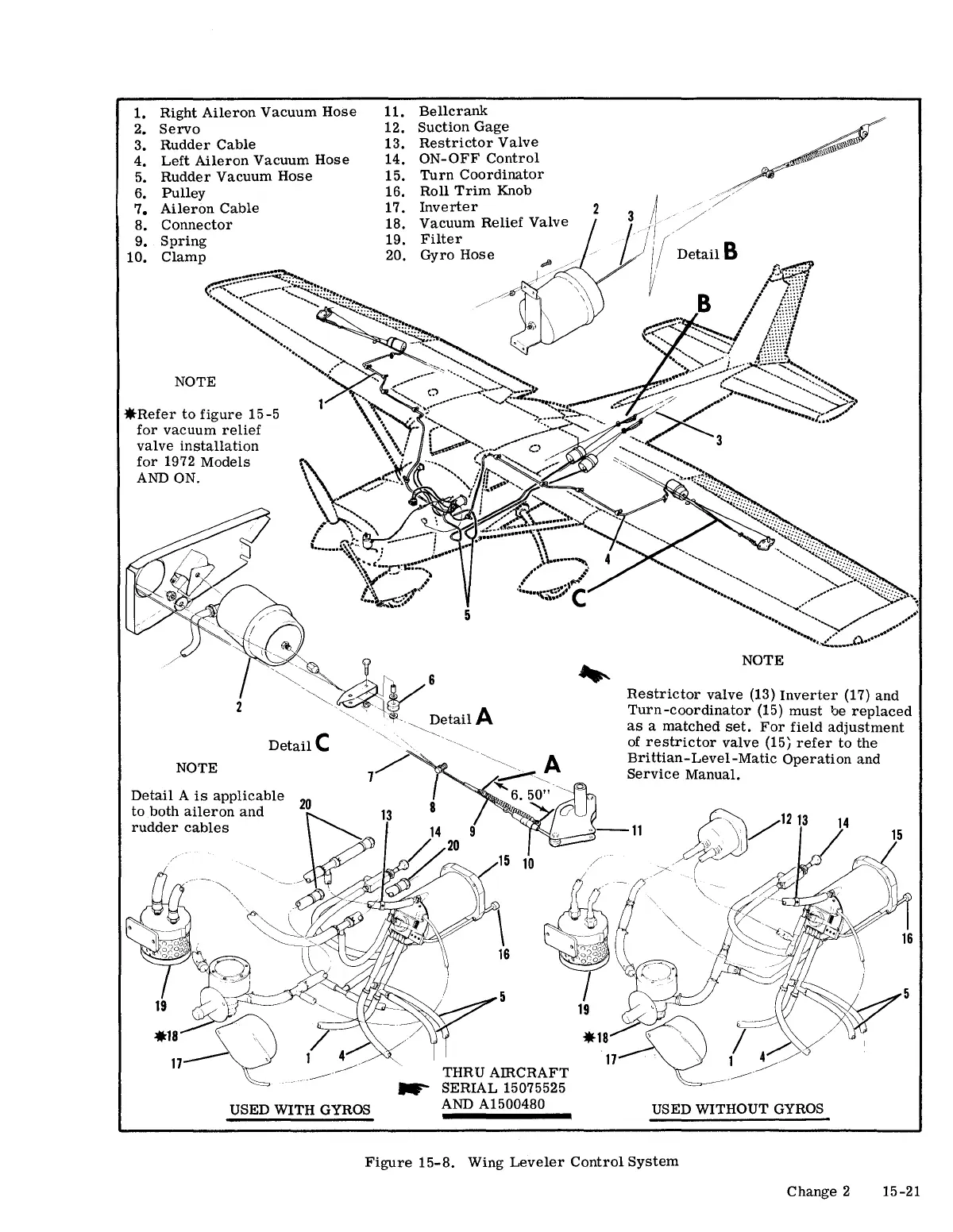

Figure 15-8. Wing Leveler Control System
Change 2 15-21
