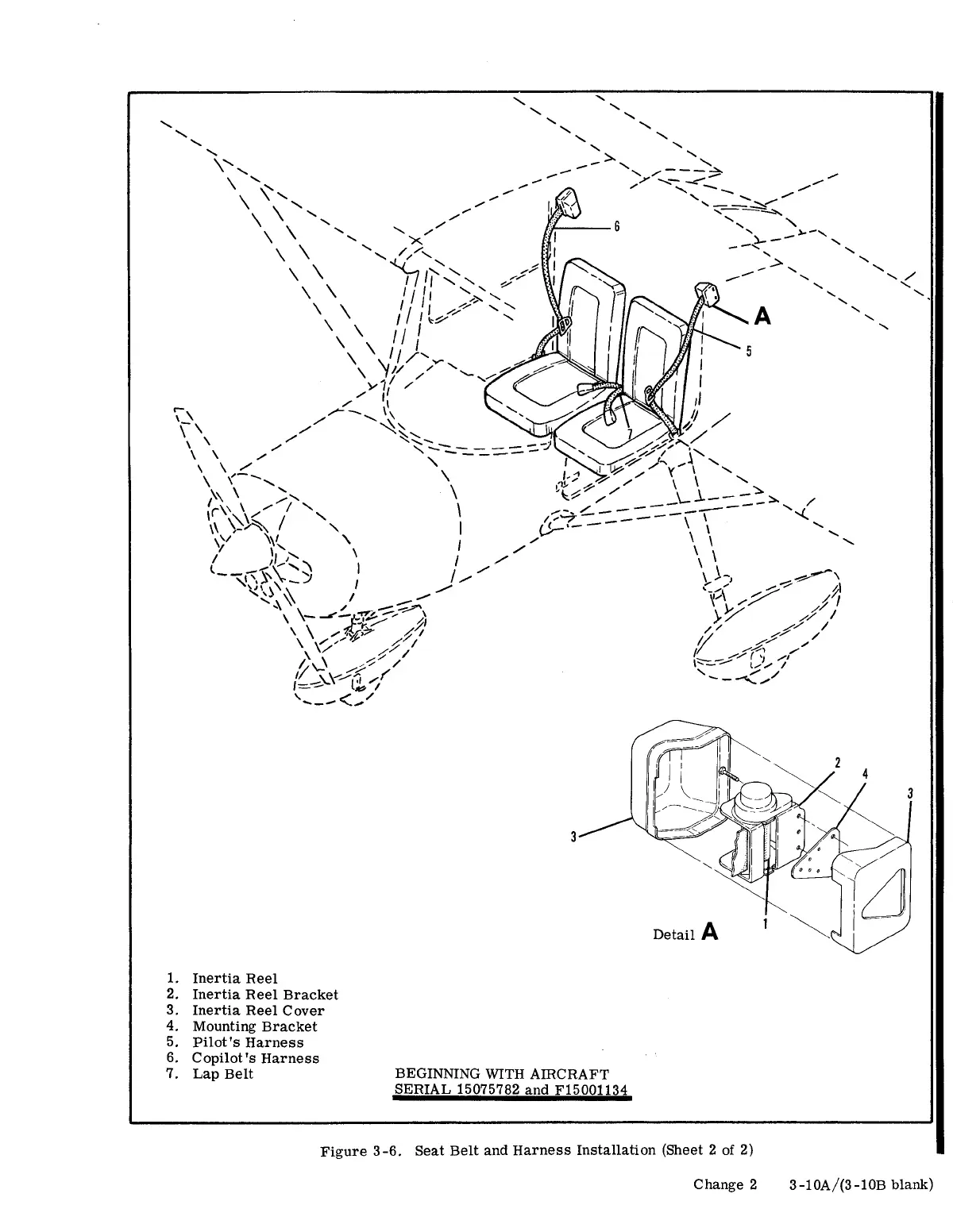

Cessna 150M - Seat Belt and Harness Installation

To Next Page

To Previous Page

Inertia

Reel

Inertia

Reel

Bracket

Inertia

Reel

Cover

4. Mounting

Bracket

Pilot's

Harness

Copilot's

Harness

Lap

Belt

BEGINNING WITH

AIRCRAFT

SERIAL

15075782

and

F15001134

Detail

Figure

3-6.

Seat

Belt

and

Harness

Installation

(Sheet 2 of 2)
