Cessna 150M - Thru-Bolts); Wheel with Capscrews)

Snap Ring
Grease Seal Ring
Grease Seal Felt
Bearing Cone
Female Wheel Half
Tire
CLEVELAND NOSE WHEEL
9
1.
2.
3.
4.
5.
6.
7.
8.
9.
Tube
NOTE ~
10.
Male Wheel Half
Bearing Cup
Thru-Bolt
Tighten thru- bolt nuts evenly to the
torque value specified in figure 5-2A.

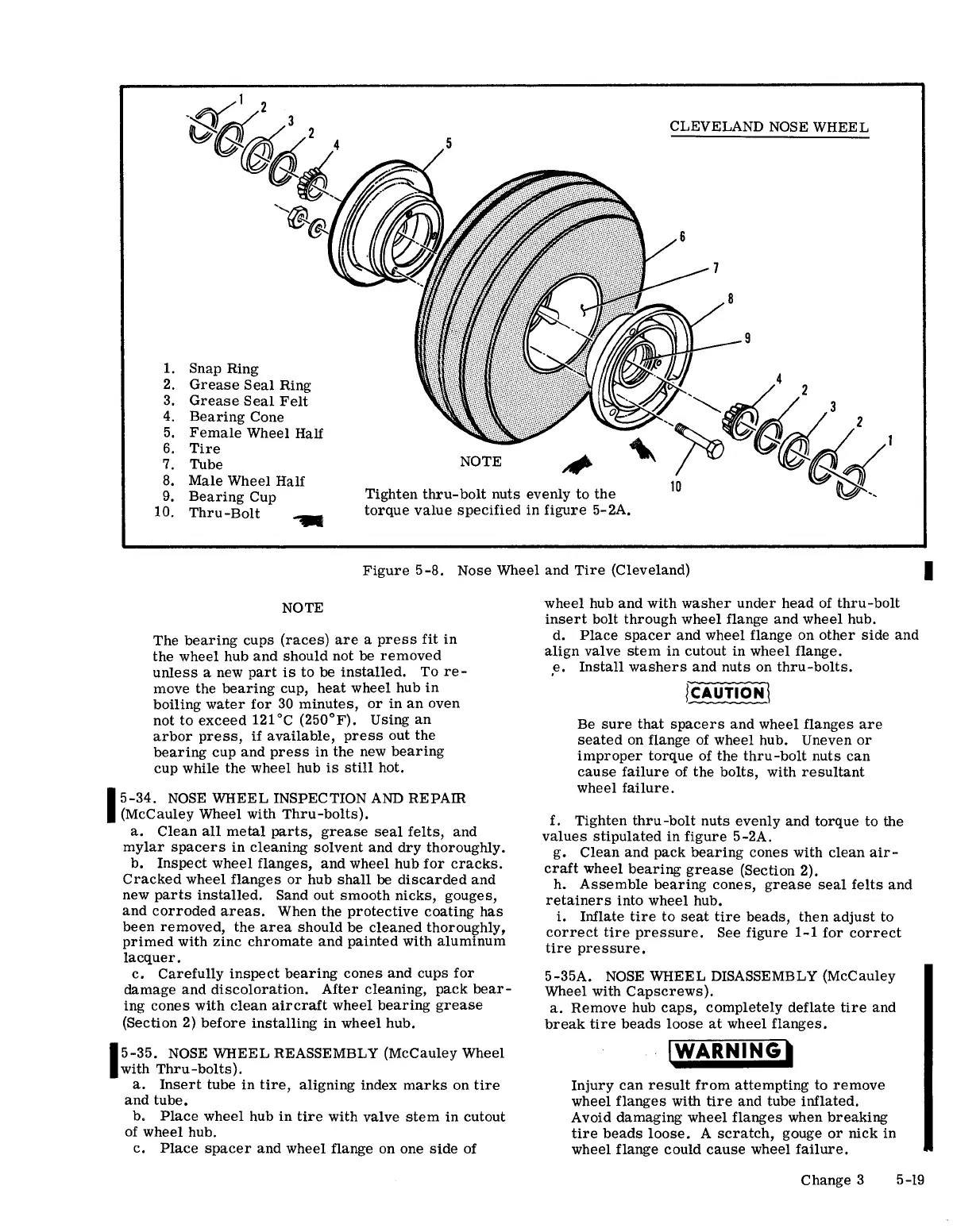

Figure 5 -8. Nose Wheel and Tire (Cleveland)
NOTE
The bearing cups (races) are a press fit in
the wheel hub and should not be removed
unless a new part is to be installed. To re-
move the bearing cup, heat wheel hub in
boiling water for 30 minutes, or in an oven
not to exceed 121°C (250°F). Using an
arbor press, if available, press out the
bearing cup and press in the new bearing
cup while the wheel hub is still hot.
1
5-34. NOSE WHEEL INSPECTION AND REPAIR
(McCauley Wheel with Thru-bolts).
a. Clean all metal parts, grease seal felts, and
mylar spacers in cleaning solvent and dry thoroughly.
b. Inspect wheel flanges, and wheel hub for cracks.
Cracked wheel flanges or hub shall be discarded and
new parts installed. Sand out smooth nicks, gouges,
and corroded areas. When the protective coating has
been removed, the area should be cleaned thoroughly,
primed with zinc chromate and painted with aluminum
lacquer.
c. Carefully inspect bearing cones and cups for
damage and discoloration. After cleaning, pack bear-
ing cones with clean aircraft wheel bearing grease
(Section 2) before installing in wheel hub.
1
5-35. NOSE WHEEL REASSEMBLY (McCauley Wheel
with Thru-bolts).
a. Insert tube in tire, aligning index marks on tire
and tube.
b. Place wheel hub in tire with valve stem in cutout
of wheel hub.
c. Place spacer and wheel flange on one side of
wheel hub and with washer under head of thru-bolt
insert bolt through wheel flange and wheel hub.
d.
Place spacer and wheel flange on other side and
align valve stem in cutout in wheel flange.
,e. Install washers and nuts on thru-bolts.
I~~U!I~N\
Be sure that spacers and wheel flanges are
seated on flange of wheel hub. Uneven or
improper torque of the thru-bolt nuts can
cause failure of the bolts, with resultant
wheel failure.
f. Tighten thru-bolt nuts evenly and torque to the
values stipulated in figure 5-2A.
g. Clean and pack bearing cones with clean air-
craft wheel bearing grease (Section 2).
h.
Assemble bearing cones, grease seal felts and
retainers into wheel hub.
i. Inflate tire to seat tire beads, then adjust to
correct tire pressure. See figure 1-1 for correct
tire pressure.
5-35A. NOSE WHEEL DISASSEMBLY (McCauley
Wheel with
Capscrews).
a. Remove hub caps, completely deflate tire and
break tire beads loose at wheel flanges.
IWARNING'
Injury can result from attempting to remove
wheel flanges with tire and tube inflated.
Avoid damaging wheel flanges when breaking
tire beads loose. A scratch, gouge or nick in
wheel flange could cause wheel failure.
Change 3 5-19
