Cessna 150M - Emergency Locator Transmitter Installation

WITH fAR PART 91.52
PLACARD LOCATED ON UPPER R. H.
CORNER OF BAGGAGE CURTAIN
1.
Tailcone Skin
2. Bracket
3. Transmitter
4. Battery Pack
5. Seal
6.
Cover
Connector 7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Arm Switch
Co-axial Cable
Sta-strap
Antenna
Doubler
Rubber Washer
Rubber Boot ....
Metal Strap
Suppressor
Detail A
Detail A
12
Detail B ,..
• (See paragraph 16-80)
3
5
NOTE
5 Metal Strap (15) must be positioned so that
latch is on top of transmitter as installed
in the aircraft and not across transmitter
cover.
17. Placard
18. Fabric Fastener - Hook
19.
Fabric Fastener - Pile

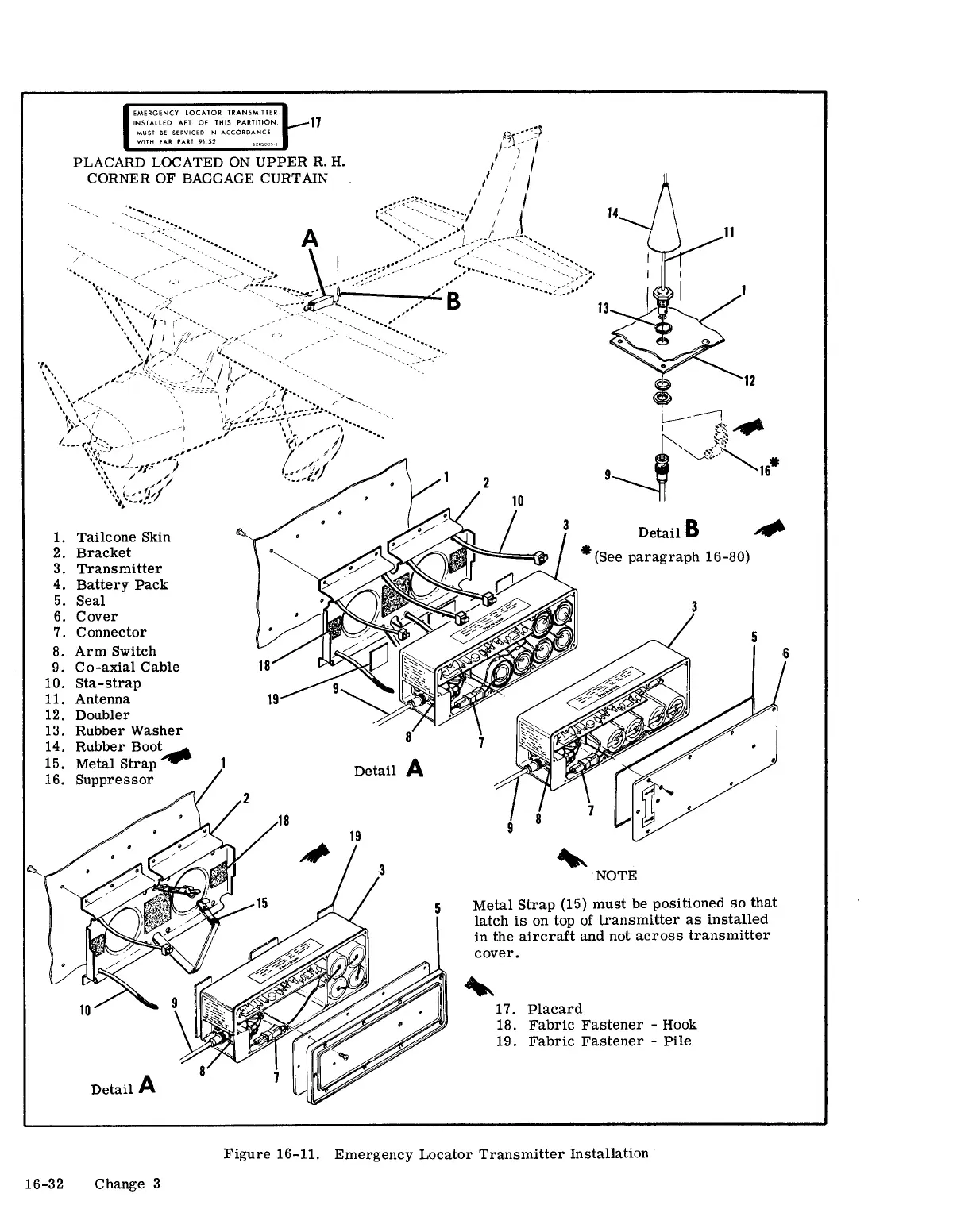

Figure 16-11. Emergency Locator Transmitter Installation
16-32
Change 3
