Cessna 150M - Fuel Tank

Fuel Sampler
CuP.
12
DETAIL C
NOTE
Hinge for vent valve (12) must be
15 * at top. Tube for valve extends
11* into fuel tank, then forward and
slightly upward.
C
10
1. Gasket
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
Transmitter
Wing Skin
Fuel Tank
Cork Washer
Washer
SEALANT(REF)----~
Wing Root Rib
Ground Strap
~~~~§
Screw
Cap
Nut
Valve
Filler Neck
Seal
Adapter
Pad
Strap
Plug
Plate
Adapter
Spacer
Shim
*Remove shims (21) when
required to increase ten-
sion of leaf spring (23).
SCREWS (REF)
* NOTE SECTION D - D *
Apply Dow
Corning Silastic RTV 732, General
Electric RTV -102 (white) or Devcon Silite 100
(white) in a bead around filler neck (13) at ada-
pter (15). Also, apply sealant in a bead around
screws referenced in Section D-D.
__ • REFER TO PARAGRAPH 2-19
*THRU 15072628, F15000738 AND A15000276
15
Leaf Spring
Drain Valve
• BEGINNING WITH 15072629, F15000739 AND A15000277

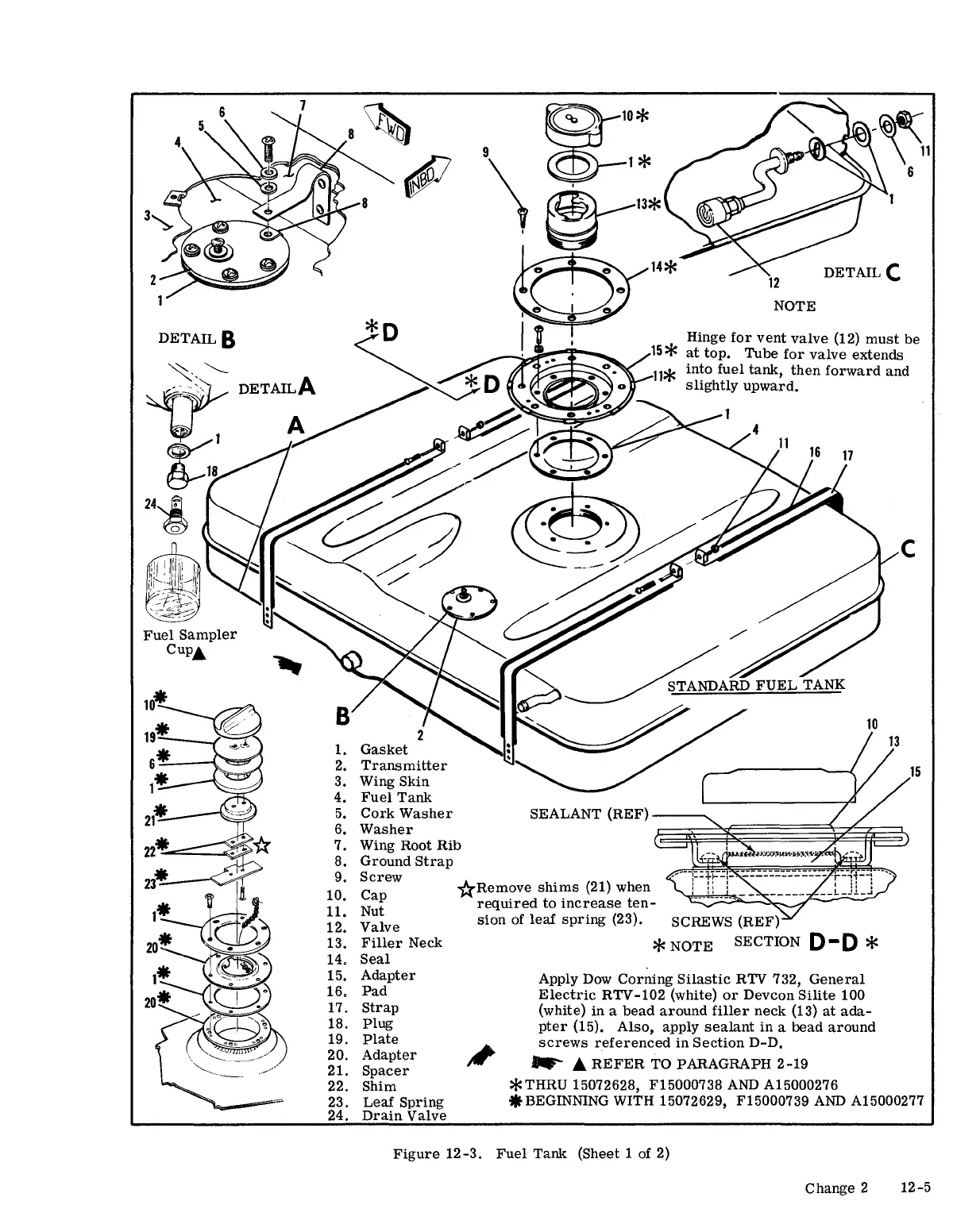

Figure 12-3. Fuel Tank (Sheet 1 of 2)
Change 2 12-5
