Cessna 150M - Skin Repair

PATCHES AND OOUBLERS-
2024-T3 ALCLAD
.,..--- MS20470AD4 RIVETS
24 REQD
MS20470AD4
RIVETS
16 REQD
2.00 DIA. HOLE
MS20470AD4 RIVETS
8 REQD
CJ ORIGINAL PARTS
1.iliiliililliJJ REPAIR PARTS
r--- 6.50 DIA.----j
! t-4.00DIA~ ! PATCH
E ~
~~ DOUBLER
• 7.50 DIA.
SECTION
THRU PATCH
3.00 DIA. HOLE
PA TCH REPAIR FOR 3 INCH DIAMETER HOLE
t-
4
.
00
DIA.-1
3.00 DIA.-I-i' ~ATCH
~ L =
, , ' , DOUBLER
EXISTING :.00 DIA.:::J
SKIN
SECTION THRU
PATCH
PATCH
REPAIR FOR 2 INCH DIAMETER HOLE
2.50 DIA.
EXISTING
SKIN
1.00 DIA. HOLE
-11. 751-
DIA.
SECTION THRU PATCH
PATCH REPAIR FOR lINCH DIAMETER HOLE
PATCH
(NO DOUBLER
REQD)
_
REPAIR PARTS IN CROSS SECTION
OVERLAPPING
CIRCULAR PATCH

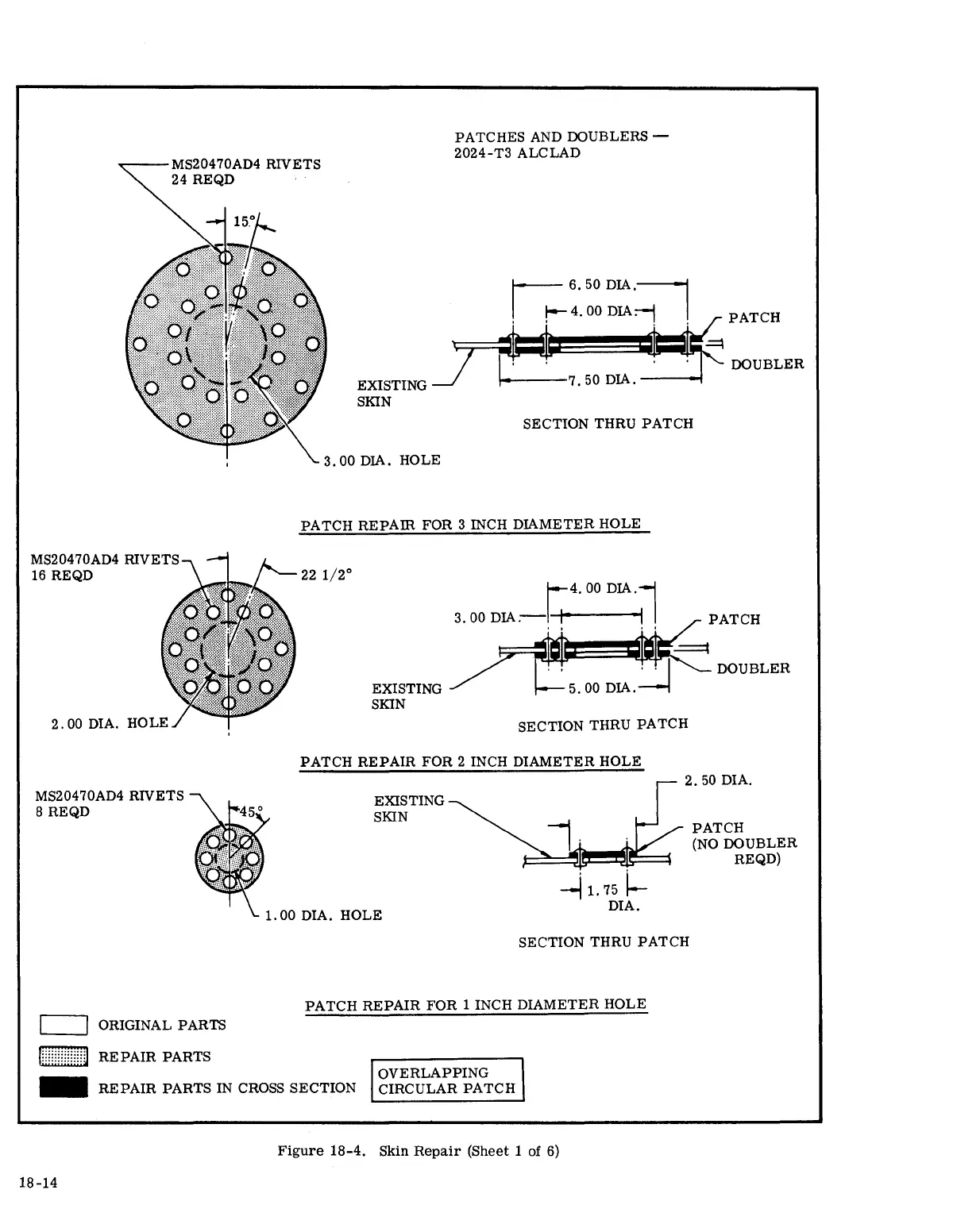

Figure 18-4. Skin Repair (Sheet 1 of 6)
18-14
