1/4 B
1/2 B
SECTION THRU ASSEMBLED PATCH
A-A
1/2" RADIUS
PA
TCH - 2024-T3 ALCLAD
EDGE MARGIN = 2 X RIVET
DIAMETER
RIVET SPACING =
6 X RIVET DIA.
EDGE MARGIN
= 2 X RIVET DIA.
CJ
~
lliiliiliiiiliJ
-
ORIGINAL PARTS
REPAIR PARTS
OOUBLER - 2024-T3 ALCLAD
OVERLAPPING REC-
TANGuLAR PATCH
REPAIR PARTS IN CROSS SECTION

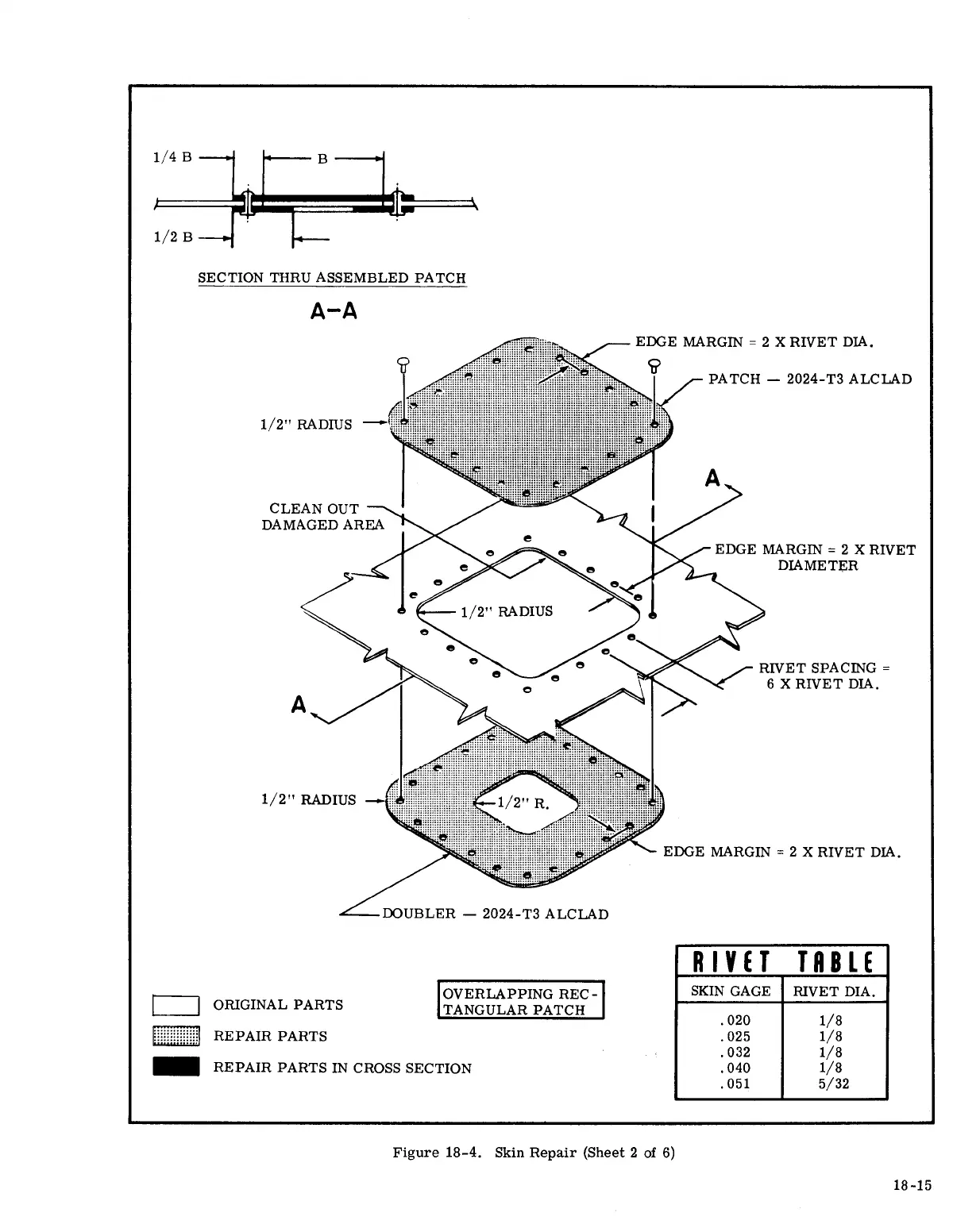

Figure 18-4. Skin Repair (Sheet 2 of 6)
RIVET TABLE
SKIN GAGE
RIVET DIA.
.020
1/8
.025
1/8
.032
1/8
.040
1/8
.051
5/32
18-15
