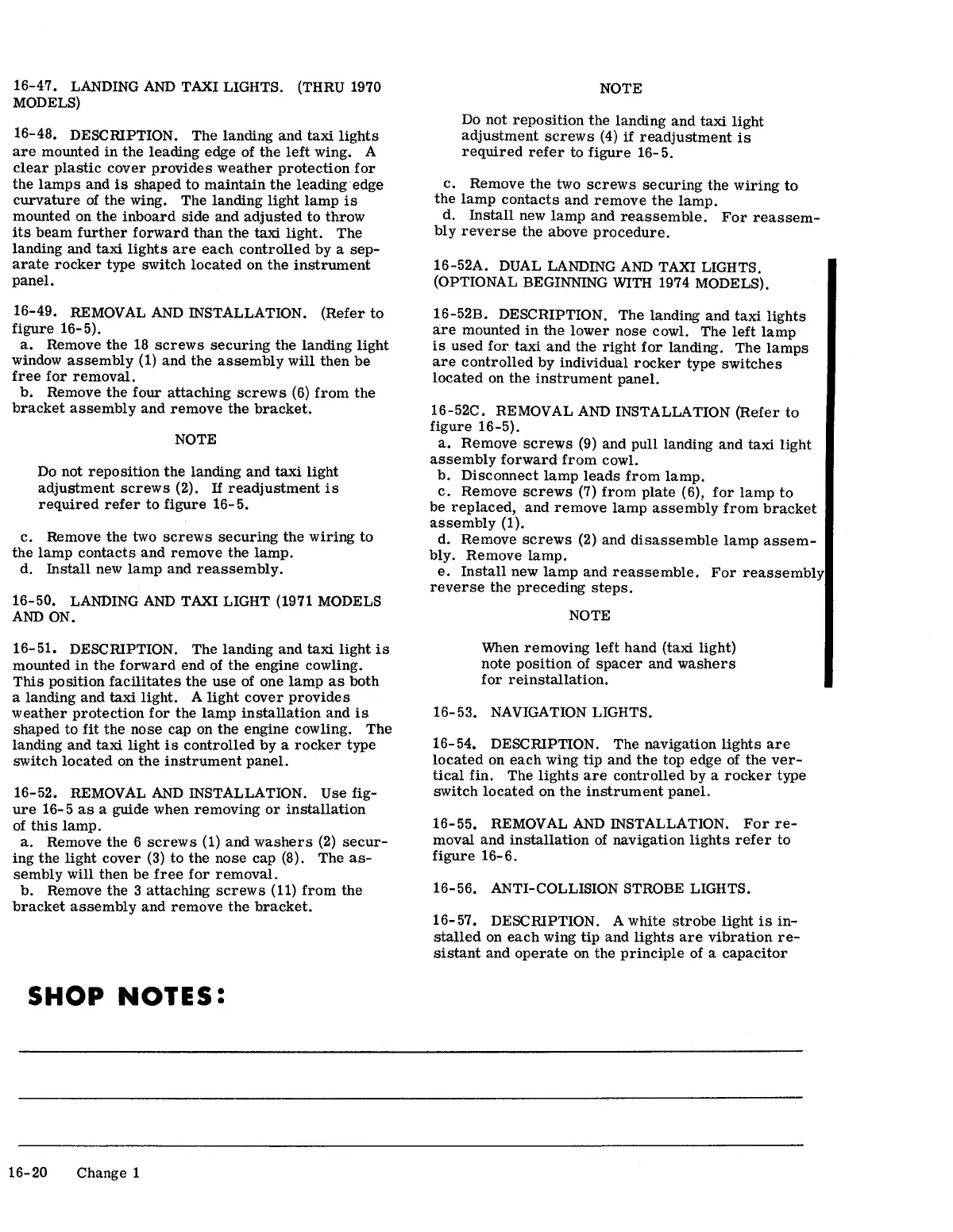

16-47.
LANDING
AND
TAXI LIGHTS. (THRU 1970
MODELS)
16-48. DESCRIPTION.
The
landing
and
taxi
lights
are
mounted
in
the
leading
edge of
the
left
wing. A
clear
plastic
cover
provides
weather
protection
for
the
lamps
and
is
shaped
to
maintain
the
leading
edge
curvature
of the wing. The landing
light
lamp
is
mounted on the
inboard
side
and
adjusted
to
throw
its
beam
further
forward
than
the
taxi
light.
The
landing and
taxi
lights
are
each
controlled
by a
sep-
arate
rocker
type
switch
located
on
the
instrument
panel.
16-49. REMOVAL
AND
INSTALLATION.
(Refer
to
figure
16-5).
a.
Remove
the
18
screws
securing
the
landing
light
window
assembly
(I)
and
the
assembly
will
then
be
free
for
removal.
b.
Remove
the
four
attaching
screws
(6)
from
the
bracket
assembly
and
remove
the
bracket.
NOTE
Do not
reposition
the
landing and
taxi
light
adjustment
screws
(2).
If
readjustment
is
required
refer
to
figure
16-5.
c.
Remove
the
two
screws
securing
the
wiring
to
the
lamp
contacts
and
remove
the
lamp.
d.
Install
new
lamp
and
reassembly.
16-50. LANDING
AND
TAXI LIGHT (1971 MODELS
AND
ON.
16-51.
DESCRIPTION. The landing
and
taxi
light
is
mounted
in
the
forward
end of
the
engine cowling.
This
position
facilitates
the
use
of one
lamp
as
both
a landing
and
taxi
light.
A
light
cover
provides
weather
protection
for
the
lamp
installation
and
is
shaped
to
fit
the
nose
cap on
the
engine cowling.
The
landing
and
taxi
light
is
controlled
by
a
rocker
type
switch
located
on
the
instrument
panel.
16-52. REMOVAL
AND
INSTALLATION. Use fig-
ure
16-5
as
a guide when
removing
or
installation
of
this
lamp.
a.
Remove
the
6
screws
(I) and
washers
(2)
secur-
ing
the
light
cover
(3)
to
the
nose
cap (8). The
as-
sembly
will
then
be
free
for
removal.
b.
Remove
the
3
attaching
screws
(11)
from
the
bracket
assembly
and
remove
the
bracket.
SHOP
NOTES:
16-20
Change 1
NOTE
Do
not
reposition
the
landing
and
taxi
light
adjustment
screws
(4)
if
readjustment
is
required
refer
to
figure
16-5.
c.
Remove
the
two
screws
securing
the
wiring
to
the
lamp
contacts
and
remove
the
lamp.
d.
Install
new
lamp
and
reassemble.
For
reassem-
bly
reverse
the above
procedure.
16-52A. DUAL LANDING
AND
TAXI LIGHTS.
(OPTIONAL BEGINNING WITH 1974 MODELS).
16-52B.
DESCRIPTION.
The
landing and
taxi
lights
are
mounted
in
the
lower
nose
cowl.
The
left
lamp
is
used
for
taxi
and
the
right
for
landing. The
lamps
are
controlled
by
individual
rocker
type
switches
located
on
the
instrument
panel.
16-52C. REMOVAL
AND
INSTALLATION
(Refer
to
figure
16-5).
a.
Remove
screws
(9)
and
pull
landing
and
taxi
light
assembly
forward
from
cowl.
b.
Disconnect
lamp
leads
from
lamp.
c.
Remove
screws
(7)
from
plate
(6),
for
lamp
to
be
replaced,
and
remove
lamp
assembly
from
bracket
assembly
(I).
d.
Remove
screws
(2) and
disassemble
lamp
assem-
bly.
Remove
lamp.
e.
Install
new
lamp
and
reassemble.
For
reassembly
reverse
the
preceding
steps.
NOTE
When
removing
left
hand (taxi light)
note
position
of
spacer
and
washers
for
reinstallation.
16-53.
NAVIGATION LIGHTS.
16-54. DESCRIPTION. The
navigation
lights
are
located
on
each
wing
tip
and
the
top
edge
of
the
ver-
tical
fin. The
lights
are
controlled
by
a
rocker
type
switch
located
on
the
instrument
panel.
16-55.
REMOVAL
AND
INSTALLATION.
For
re-
moval
and
installation
of
navigation
lights
refer
to
figure
16-6.
16-56. ANTI-COLLISION STROBE LIGHTS.
16-57.
DESCRIPTION. A
white
strobe
light
is
in-
stalled
on
each
wing
tip
and
lights
are
vibration
re-
sistant
and
operate
on
the
principle
of a
capacitor
