OPTIONAL BEGINNING WITH
15074851, A1500431,
F15001014
AND FA1500212
10
11
1. Bracf{et Assembly
2. Tinnerman Screw
3. Bracket
4. Lamp
5. Gasket
6. Plate
7. Adjustment Screw
8. Nosecap
9. Washer
10. Spacer
11. Mounting Screw

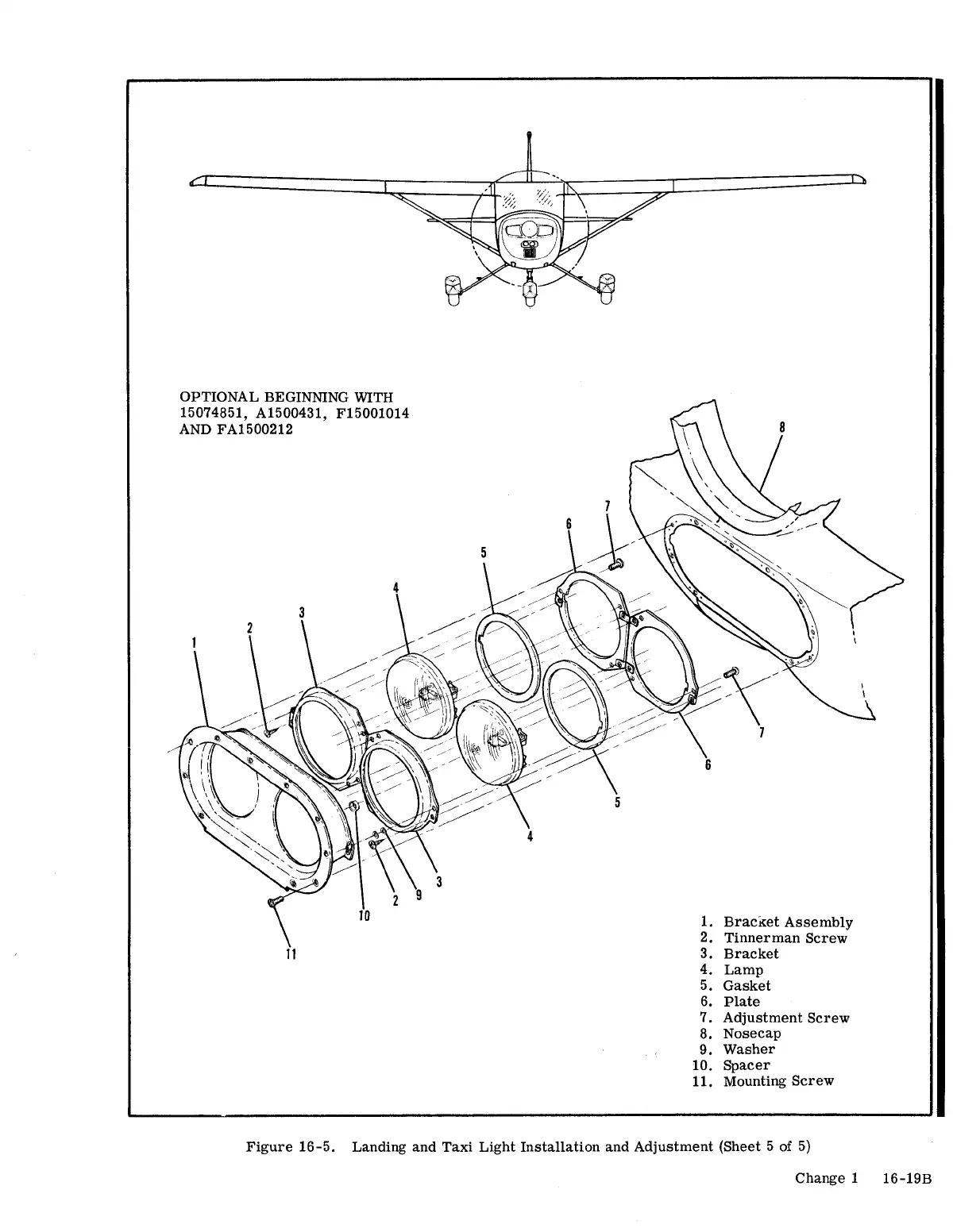

Figure 16-5. Landing and Taxi Light Installation and Adjustment (Sheet 5 of 5)
Change 1 16-19B
