Cessna 150M - Page 228

I
I
\
4
STA.
-30.25
5
NOTE
To adjust the landing light,
add AN960-10 and/or AN960-10L
washers (Ref item 10) as required
between plate (7) and support
bracket assy (8).
4
4
4
VIEW A-A
1. Screw
2. Washer
3. Light Cover
4. Adjustment Screws
5. Bracket
6. Lamp
7. Plate
NOTE
BEGINNING WITH 15074013,
A1500363, F15000904
AND
FA1500192,
aluminum light
brackets are replaced with
steel brackets and a silicon
rubber gasket is installed.
8. Support Brkt Assy
9. Nosecap
10. Washer
11. Nut
12.
Gasket
13. Mounting Screw

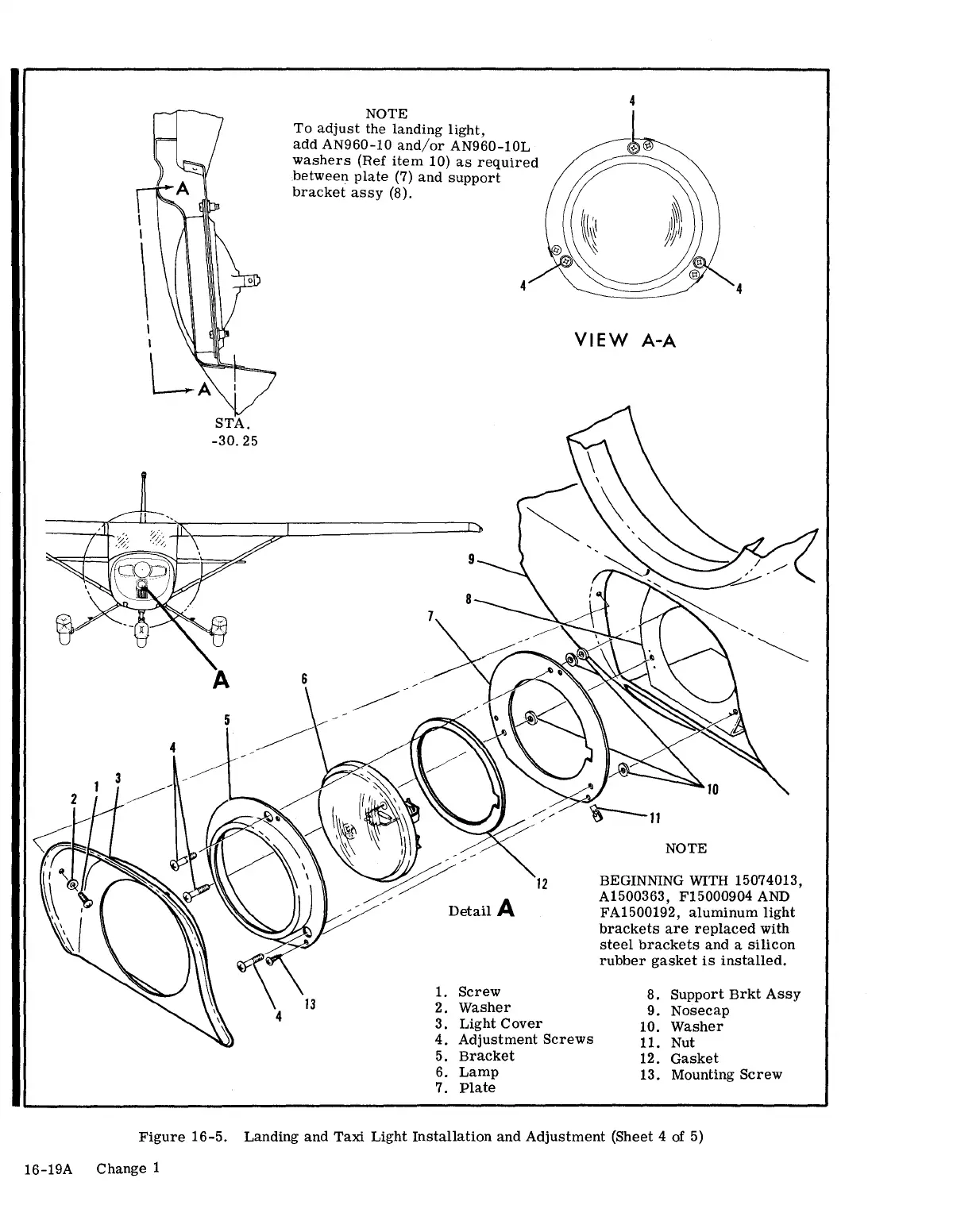

Figure 16-5. Landing and Taxi Light Installation and Adjustment (Sheet 4 of 5)
